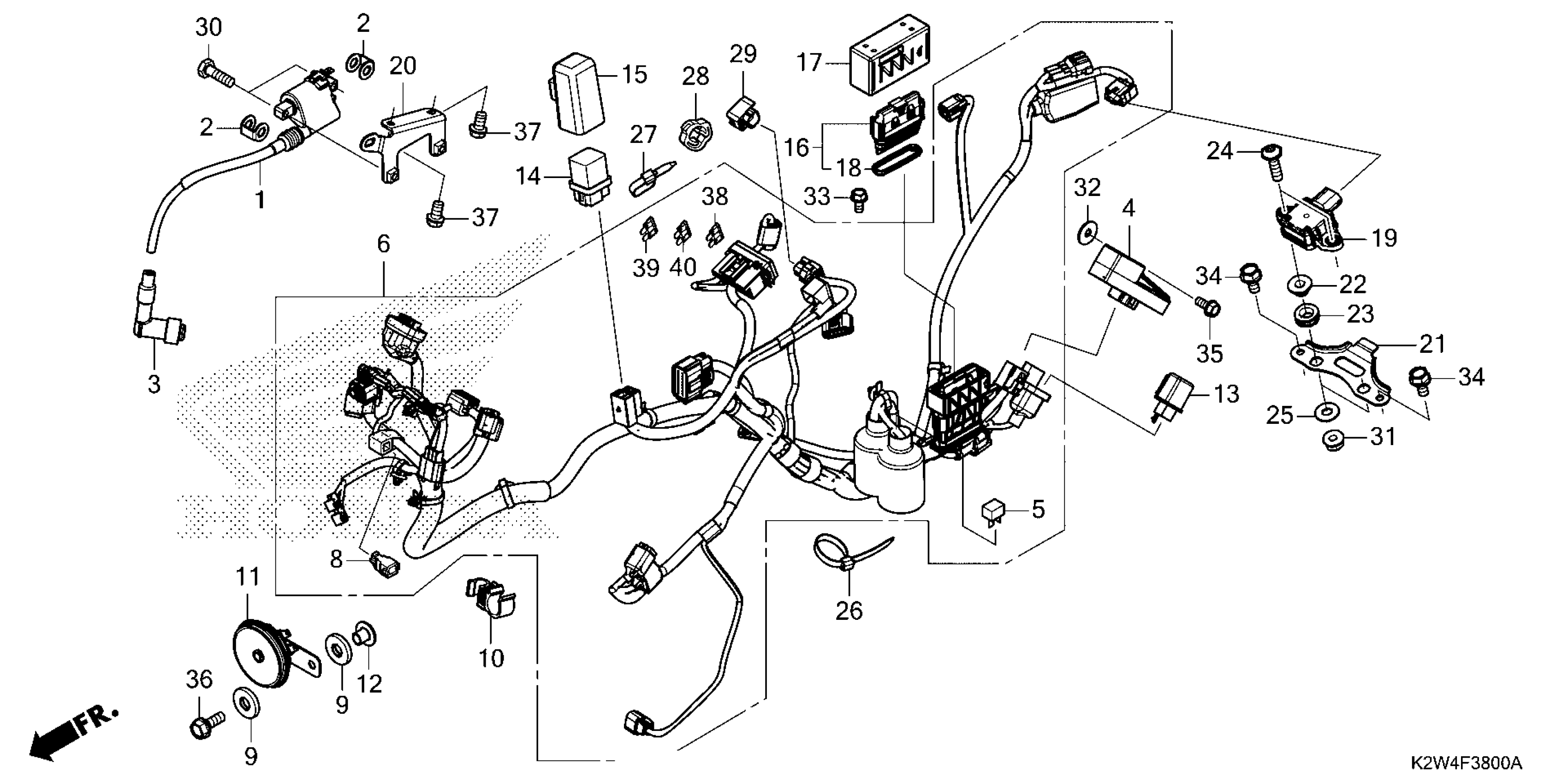

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-K2W-T01

$17.22

2

SPACER, IGNITION COIL

30520-GFM-900

$2.41

3

CAP ASSY., NOISE SUPPRESSOR

30700-K2F-T01

$9.38

4

RECTIFIER, REGULATE

31600-K1M-K31

$63.22

5

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

6

WIRE HARNESS

32100-K2W-A20

$355.41

7

SLIDER

32160-K76-T61

$16.94

8

CAP, DUMMY (2P) (BLUE)

32605-KCW-J91

$4.72

9

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

10

CLAMP, THERMO SENSOR

37814-P3F-003

$16.19

11

HORN

38110-K0F-T61

$20.54

12

COLLAR, HORN SETTING

38117-KPH-880

$0.84

13

RELAY, TURN SIGNAL

38301-KZZ-J01

$52.56

14

RELAY, STARTER (HONDALOCK)

38501-KVB-901

$19.82

15

SUSPENSION, STARTER RELAY (HONDALOCK)

38506-KWW-711

$3.94

16

PGM-FI UNIT

38770-K2W-A21

$74.74

17

SUSPENSION, ENGINE CONTROL UNIT

38771-K76-T60

$2.75

18

SEAL, RING

38775-K76-T61

$147.97

19

SENSOR ASSY., GYRO

39960-K26-G51

$390.15

20

STAY, IGNITION COIL

50140-K2W-J10

$8.01

21

STAY

50246-K2W-J10

$13.90

22

COLLAR (6.2X5)

50249-K26-C10

$1.18

23

RUBBER, SENSOR MOUNTING

64535-K26-C11

$11.44

24

BOLT, TORX (6X22)

90103-K26-G80

$0.97

25

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.59

26

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

27

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

28

CLAMP, HARNESS

90690-MEF-800

$1.21

29

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$7.87

30

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

31

NUT, FLANGE (6MM)

94050-06000

$0.60

32

WASHER, PLAIN (6MM)

94103-06800

$0.72

33

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

34

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

35

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

36

BOLT, FLANGE (6X16)

95701-06016-07

$1.50

37

BOLT, FLANGE (6X10)

96001-06010-07

$1.50

38

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.12

39

FUSE, MINI (10A)

98200-41000

$1.22

40

FUSE, MINI (20A)

98200-42000

$1.12
