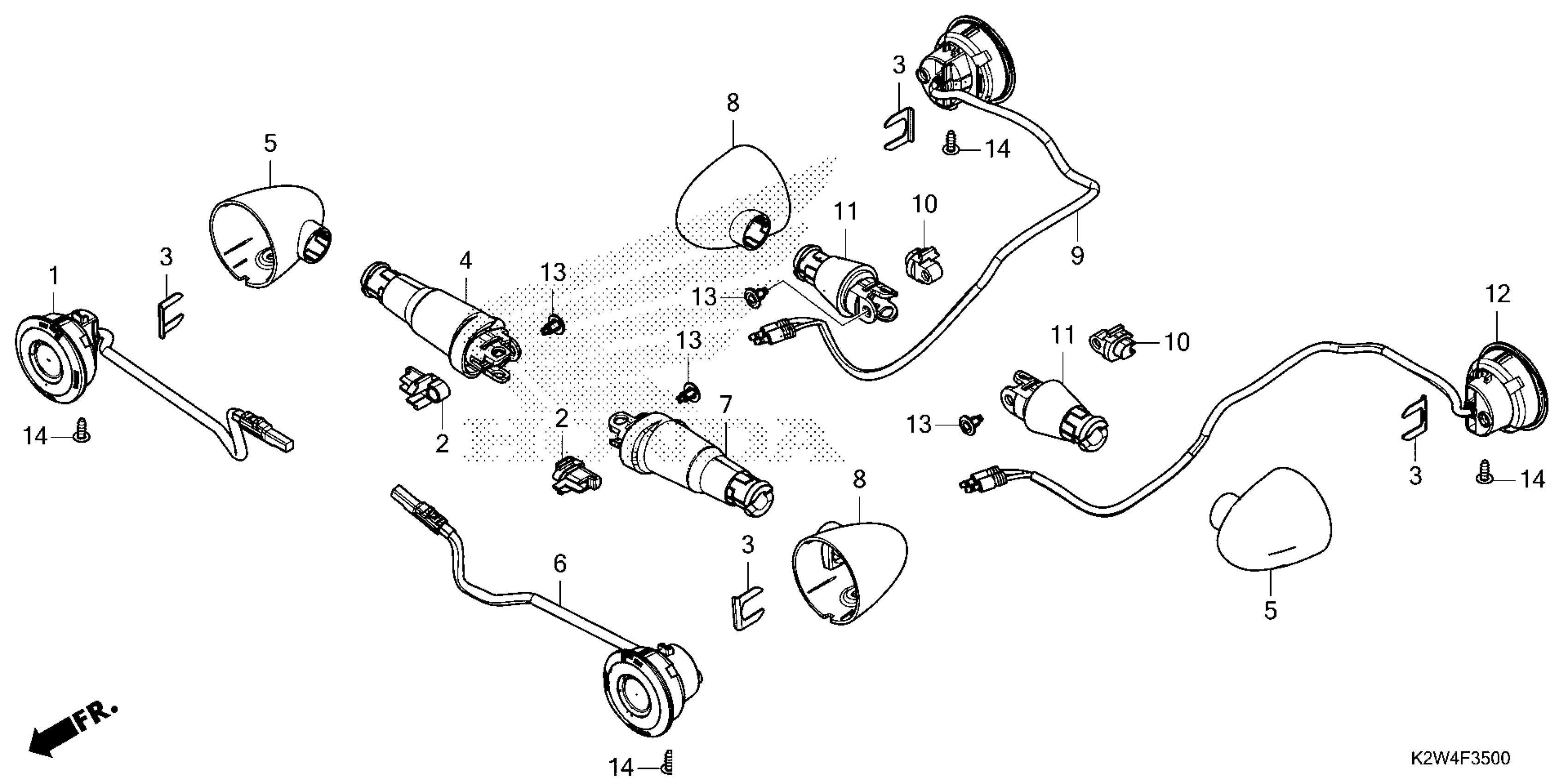

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL UNIT, R.

33400-K0F-AF1

$46.08

2

HLDR, FR. TURN SIGNL

33409-K0F-AF0

$5.36

3

STAY, TURN SIGNAL

33411-K87-A30

$2.72

4

RUBBER, R. FR.

33412-K0F-AF0

$23.62

5

COVER A, TURN SIGNAL

33413-K0F-AF0

$22.30

6

TURN SIGNAL UNIT, L.

33450-K0F-AF1

$46.08

7

RUBBER, L. FR.

33452-K0F-AF0

$23.62

8

COVER B, TURN SIGNAL

33453-K0F-AF0

$20.87

9

TURN SIGNAL UNIT, R.

33600-K2W-A21

$44.89

10

HLDR, RR. TURN SIGNL

33609-K0F-AF0

$5.36

11

RUBBER, RR.

33612-K0F-AF0

$7.54

12

TURN SIGNAL UNIT, L.

33650-K2W-A21

$44.89

13

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

14

SCREW, TAPPING (4X12)

93903-24320

$1.49
