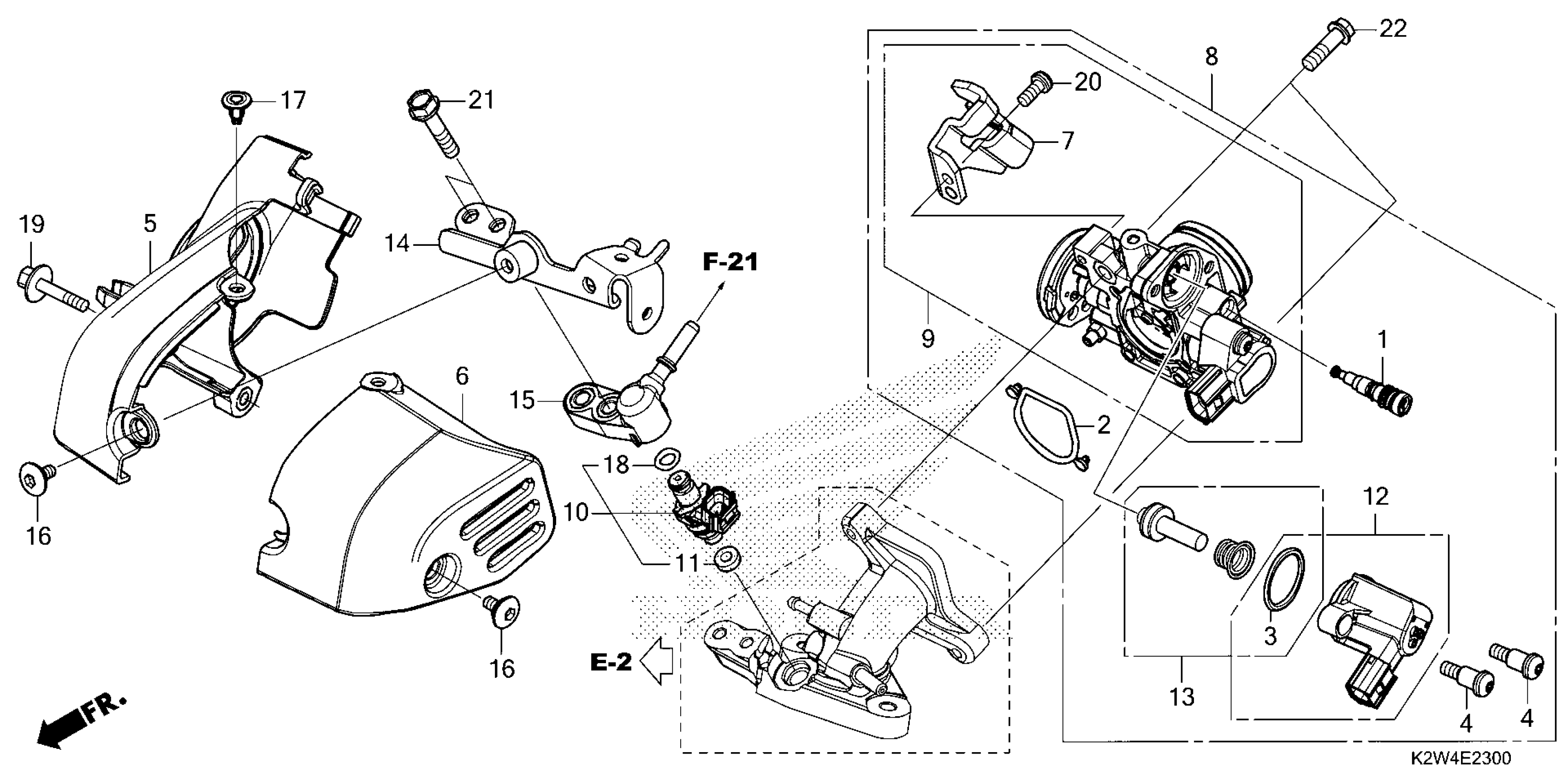

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 THROTTLE BODY Diagram

#

Description
Price

1

SCREW SET

16016-K03-H11

$1.78

2

O-RING

16075-KYZ-711

$3.15

3

O-RING (1.9X20.4)

16077-KVB-S51

$1.26

4

SCREW, TORX (5X8.7)

16081-KPH-701

$2.89

5

COVER, R.

16157-K2W-D10

$6.40

6

COVER, L.

16158-K2W-D10

$6.84

7

STAY, WIRE

16169-K46-N21

$15.91

8

BODY ASSY. (GQY2C A)

16400-K2W-D11

$79.24

9

BODY SET

16410-K2W-D11

$51.09

10

INJECTOR ASSY., FUEL

16450-K76-T61

$36.03

11

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.07

12

SOLENOID

16480-KVB-S51

$41.69

13

SEAT SET

16485-GGZ-J01

$3.89

14

STAY

17120-K2W-T10

$35.21

15

JOINT, INJECTOR

17560-K26-G00

$37.99

16

SCREW, SPECIAL (5X11) | Use up to Engine SN 6100002.

90114-KPH-700

$0.91

16

SCREW (5X11) | Use from Engine SN 6100003.

90114-K98-E20

Unavailable

17

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

18

O-RING (6.3X2.2)

91301-GGL-J01

$9.60

19

BOLT-WASHER (5X25)

93414-05025-08

$0.85

20

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.13

20

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.13

21

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

21

BOLT, FLANGE (6X22) This part replaces 95801-06022-00.

95701-06022-00

Unavailable

22

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
