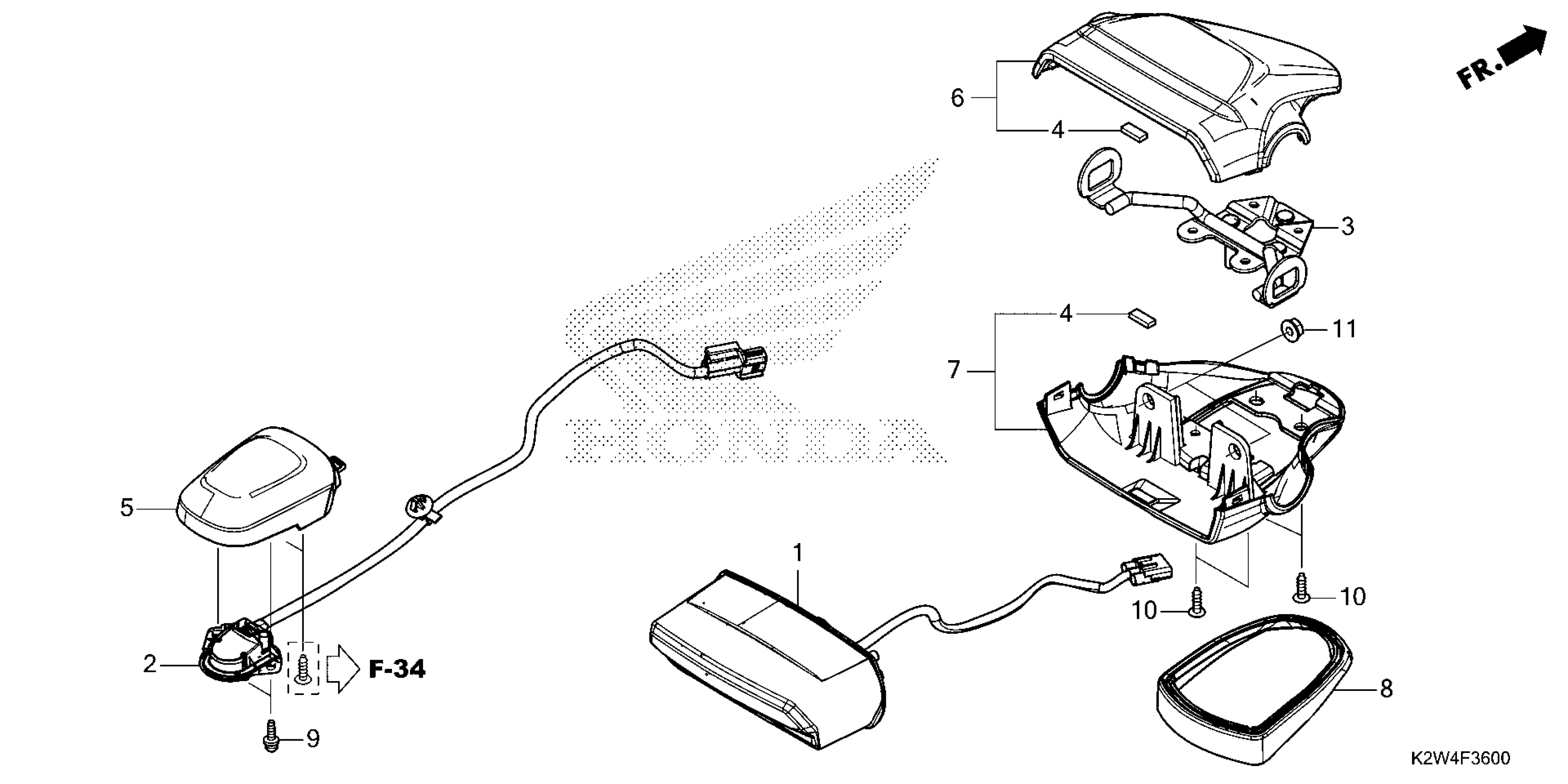

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 TAILLIGHT@LICENSE LIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT

33701-K2W-A21

$82.12

2

LIGHT ASSY., LICENSE

33720-K2W-T01

$83.82

3

STAY, TAILLIGHT

50316-K2W-A20

$25.26

4

RUBBER, HANDLE COVER

53209-K0G-900

$1.10

5

COVER, LICENSE LIGHT

80103-K0F-T00

$11.07

6

BASE, TAILLIGHT

80130-K0F-A60

$15.37

7

BASE, TAILLIGHT

80140-K0F-A61

$16.79

8

RUB, TAILLIGHT COVER

80150-K2W-J10

$10.74

9

SCREW-WASHER (4X14)

90508-K0F-T00

$1.31

10

SCREW, TAPPING (4X16)

93903-34410

$0.76

11

NUT, FLANGE (6MM)

94050-06000

$0.60
