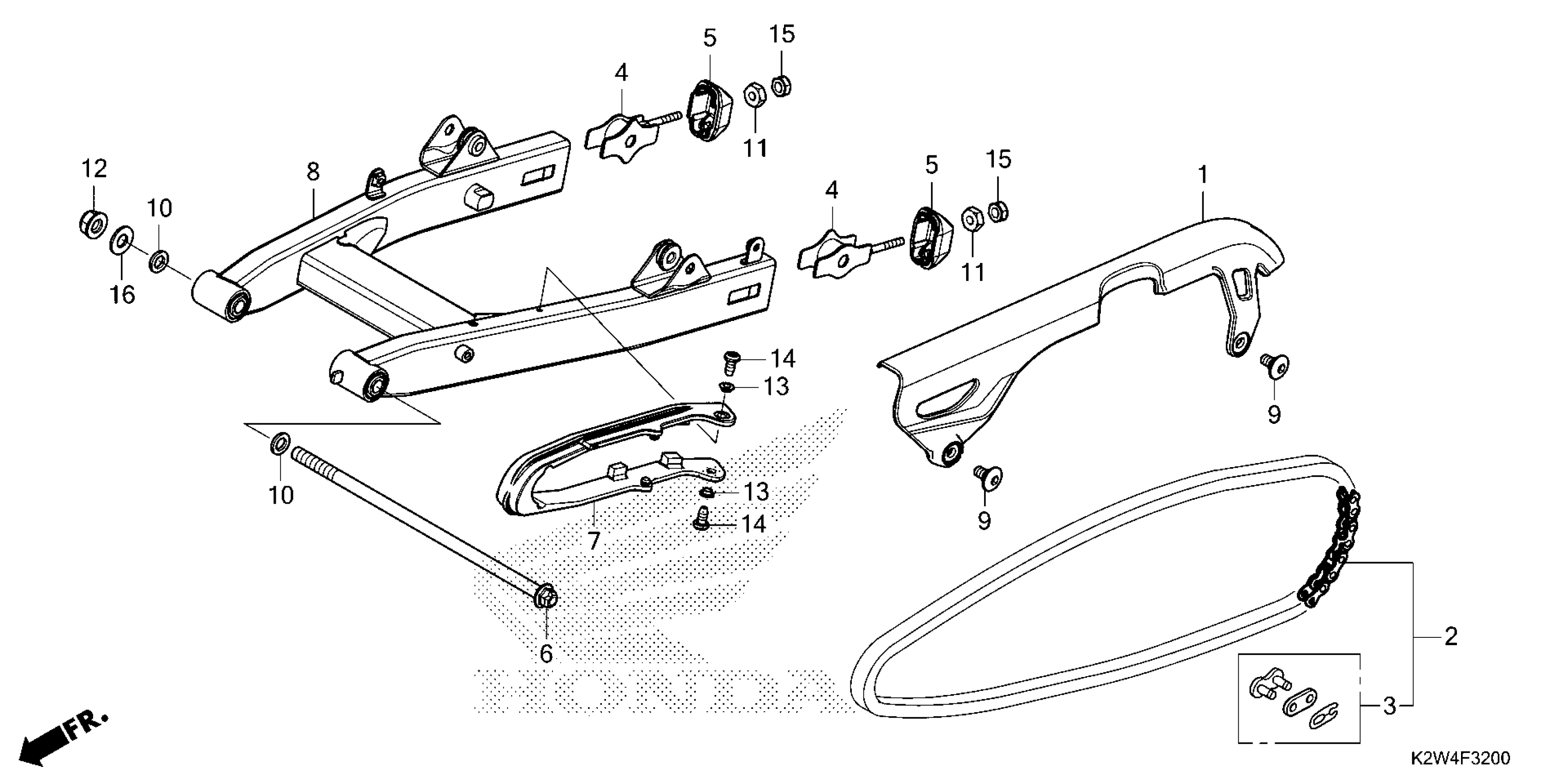

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 SWINGARM@CHAIN CASE Diagram

CASE, DRIVE CHAIN

40510-K2W-J10

$19.94

CHAIN, DRIVE

40530-K2W-J11

$15.60

MASTER LINK (DAIDO)

40531-KWV-003

$3.41

ADJUSTER, CHAIN

40543-K26-G00

$7.51

CAP, SWINGARM END

40546-K26-G00

Unavailable

AXLE, RR. WHEEL

42301-K26-900

Unavailable

SLIDER, CHAIN

52170-K26-900

$9.58

SWINGARM SUB, RR.

52200-K2W-J10

$101.78

SCREW, PAN (6X12)

90102-K26-B00

Unavailable

WASHER, PIVOT BOLT

90122-KWB-600

$0.65

NUT, SPECIAL (6MM)

90302-KBP-900

$1.88

NUT, U (12MM)

90306-KWN-701

$3.87

WASHER, FR. SIDE COVER

90556-MB4-000

$2.41

SCREW, TAPPING (5X10)

93901-25110

$3.42

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

NUT, HEX. (6MM)

94001-06200-0S

$1.21

WASHER, PLAIN (12MM)

94101-12000

$1.13
