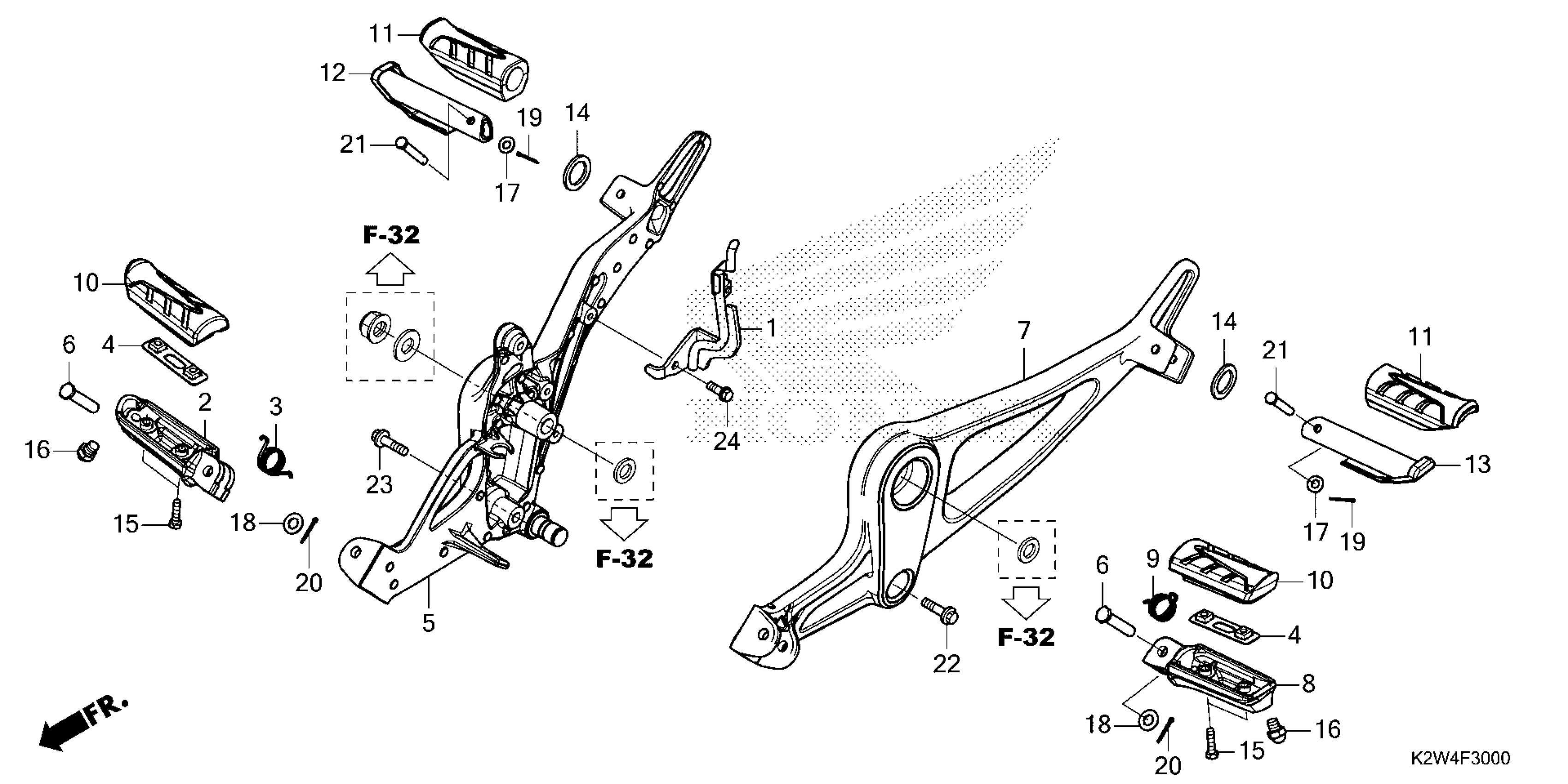

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 STEP Diagram

STAY, RR.

50605-K2W-J10

$19.08

ARM, R. STEP (COO)

50612-KYJ-305

$26.67

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$26.67

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.44

PLATE, STEP SETTING

50619-MM5-000

$7.91

HOLDER, R. STEP

50630-K2W-J10

$78.38

PIN, STEP BAR

50639-ML0-010

$5.22

HOLDER, L. STEP

50640-K2W-J10

$58.61

ARM, L. STEP (COO)

50642-KYJ-305

$26.67

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$26.67

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.44

RUBBER, MAIN STEP (COO)

50661-KYJ-305

$14.22

RUBBER, MAIN STEP (COO) This part replaces 50661-KYJ-900.

50661-KYJ-305

$14.22

RUBBER, PILLION STEP (COO)

50710-KYJ-305

$12.26

RUBBER, PILLION STEP (COO) This part replaces 50710-KYJ-900.

50710-KYJ-305

$12.26

BAR, R. PILLION STEP (COO) This part replaces 50711-KET-600.

50711-KYJ-305

$16.36

BAR, R. PILLION STEP (COO)

50711-KYJ-305

$16.36

BAR, L. PILLION STEP (COO) This part replaces 50712-KET-600.

50712-KYJ-305

$15.15

BAR, L. PILLION STEP (COO)

50712-KYJ-305

$15.15

PLATE, PILLION STEP SIDE

50714-KBA-930

$1.52

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.67

BOLT, CAP (8X8)

92501-08008-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN C, PILLION FOOTPEG

95015-83000

$2.41

BOLT, FLANGE (8X30)

95701-08030-08

$1.49

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
