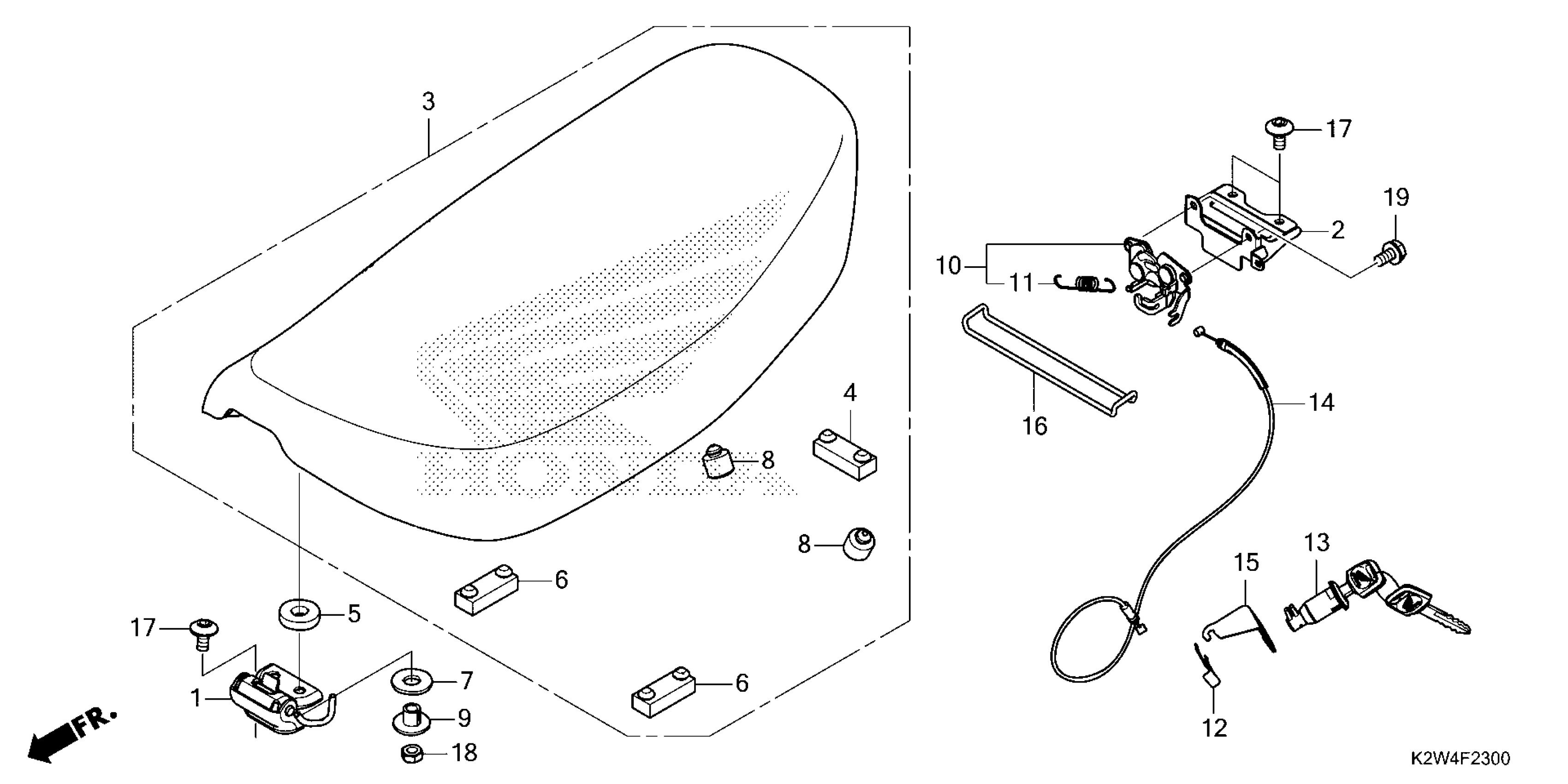

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 SEAT Diagram

HINGE, SEAT

77110-K2W-J10

$14.30

STAY, SEAT LOCK

77113-K2W-J10

$12.21

SEAT ASSY., DOUBLE

77200-K2W-J10

$92.31

RUBBER B, SEAT SETTING

77205-286-000

$5.28

WASHER A, RUBBER

77205-K2W-J10

$1.49

RUBBER, SEAT SETTING

77205-K45-N00

$2.84

WASHER B, RUBBER

77206-K2W-J10

$1.49

RUBBER, SEAT CUSHION

77206-KPK-900

$1.49

COLLAR, SEAT MOUNTING

77208-KPW-900

$1.49

SEAT LOCK COMP

77230-K59-A10

$11.08

SPRING, SEAT LOCK

77234-KYZ-900

$1.49

SPRING, LOCK KEY SETTING

77235-469-000

$5.26

KEY, SEAT LOCK

77239-KVB-900

$49.15

CABLE, SEAT LOCK

77240-K2W-J11

$4.13

STAY

77582-K2W-J10

$5.05

BAND, TOOL SETTING

80109-KPF-900

$11.51

BOLT, SOCKET SPECIAL (6X12)

90101-K87-A00

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49
