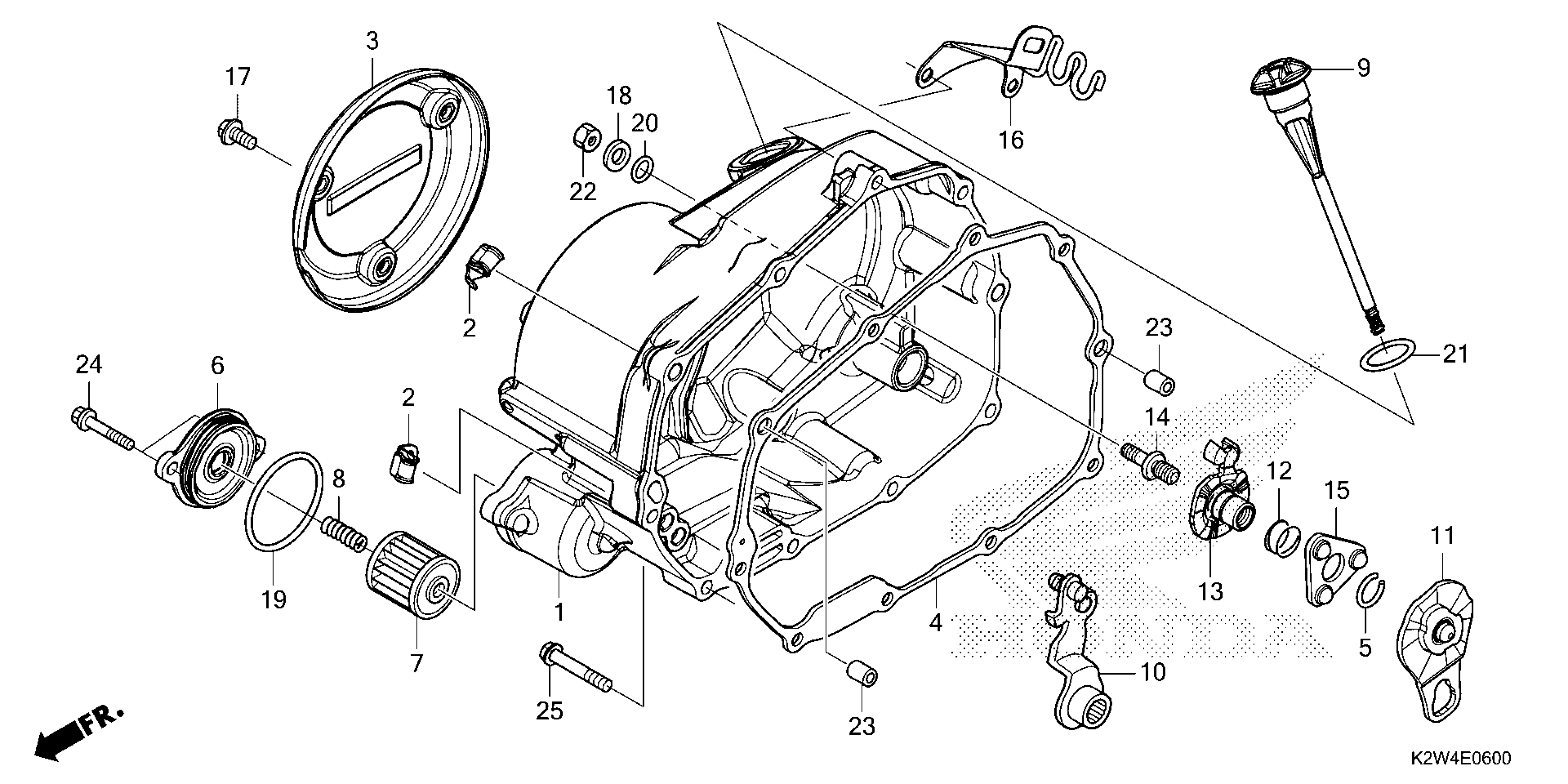

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11331-K2W-T00

$41.07

CLAMP A, OIL TEMP SENSOR CORD

11346-KTR-940

$1.49

PROTECTOR, R. COVER

11370-K2W-T00

$8.03

GASKET, R. CRANKCASE COVER (NICHIAS)

11394-K1M-T02

$5.49

CLIP, PISTON PIN (13MM)

13115-GN5-910

$1.49

COVER, OIL FILTER

15411-K26-G00

$25.58

ELEMENT, OIL FILTER

15412-MGS-D21

$8.72

SPRING, OIL FILTER

15414-MEB-670

$2.62

DIPSTICK, OIL

15651-K2W-T00

$5.59

LEVER, CLUTCH

22810-K0G-T20

$37.90

PLATE

22823-K0G-T20

$6.72

SPRING, CAM PLATE SIDE

22825-KWB-600

$1.49

SPRING, CAM PLATE SIDE This part replaces 22825-KWW-740.

22825-KWB-600

$1.49

PLATE, CLUTCH LIFTER

22830-K0G-T20

$9.66

BOLT, CLUTCH ADJ.

22846-K1M-T00

$1.49

RETAINER, BALL

22860-K1M-T00

$4.10

STAY, HARNESS CLIP

32158-K2W-T00

$9.89

BOLT, FLANGE (6X12) (NSHF)

90017-GHB-610

$2.26

WASHER (8MM)

90485-K1M-T00

$1.49

O-RING (39.8X2.2)

91302-K0G-911

$1.49

O-RING (8MM)

91303-001-010

$2.43

O-RING (18X3)

91307-KRM-840

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49
