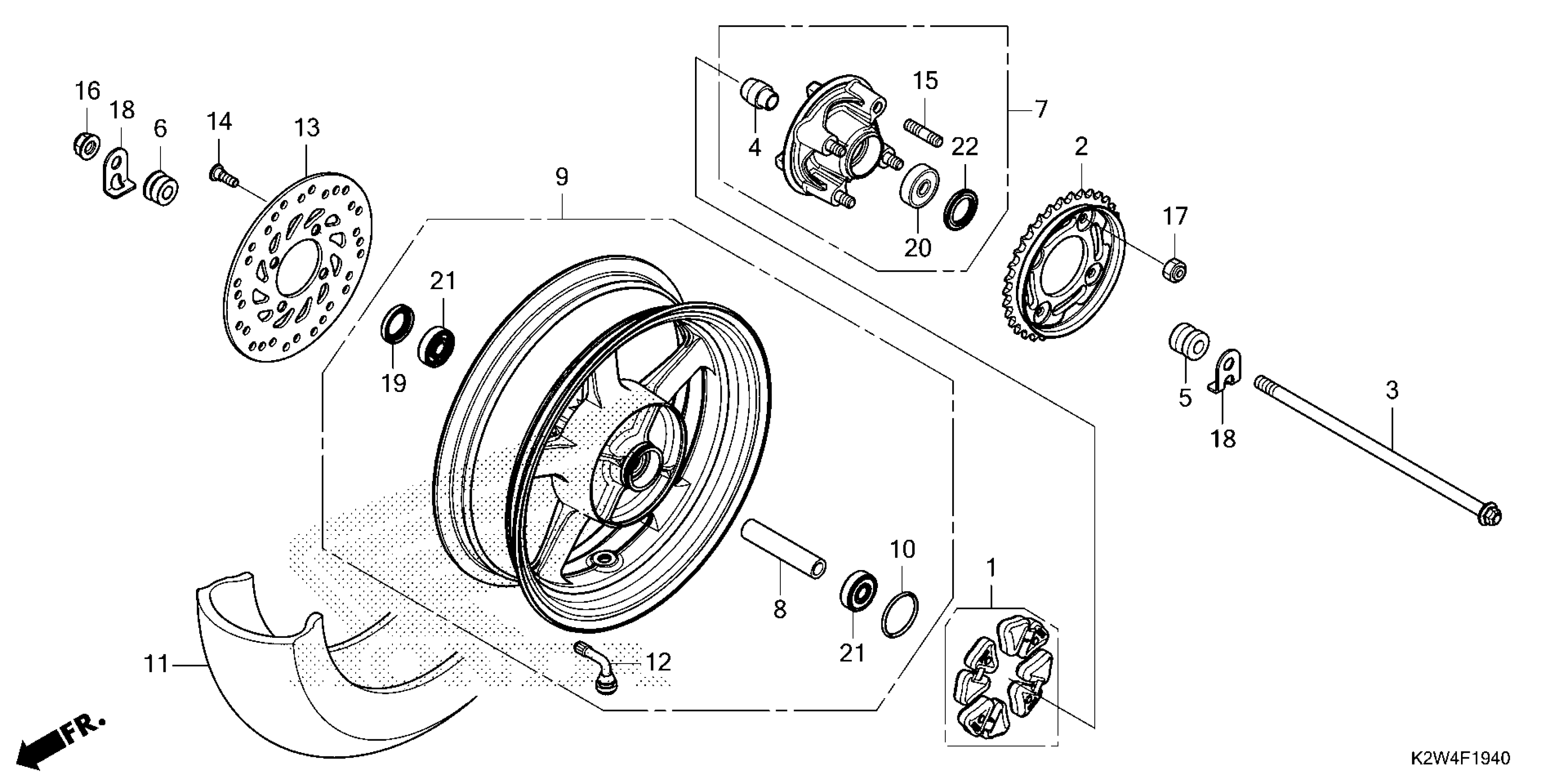

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-KWB-600

$8.69

2

SPROCKET (34T)

41200-K2W-J11

$15.71

3

AXLE, RR. WHEEL

42301-K26-G00

Unavailable

4

SLEEVE, RR. WHEEL

42303-KWB-600

$2.76

5

COLLAR, L. RR. WHEEL SIDE

42311-K26-900

$11.32

6

COLLAR, R. RR. WHEEL SIDE

42312-K26-G00

$8.40

7

FLANGE SUB-ASSY., FINAL DRIVEN

42615-K26-B10

$60.40

8

COLLAR, RR. AXLE DISTANCE

42620-K26-900

Unavailable

9

WHEEL SUB *NH303M*

42650-K26-M00ZA

$168.97

10

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.21

11

TIRE, RR.

42711-K26-B05

$39.00

11

TIRE, RR.

42711-K26-B06

$61.26

12

VALVE, RIM (DUNLOP) (NOT AVAILABLE)

42753-KJ9-004

$14.92

13

DISK, RR. BRAKE

43251-K26-G01

$42.89

14

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.76

15

BOLT, STUD (8X18)

90128-KWB-600

$0.60

16

NUT, U (12MM)

90306-KWN-701

$3.87

17

NUT, U (8MM) (FUJI SEIMITSU)

90309-KPH-971

Unavailable

18

WASHER, RR. AXLE

90559-K2W-J10

$5.71

19

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.32

20

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V02.

91051-K35-V03

$17.14

20

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$17.14

21

BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-H01.

91053-K03-H02

Unavailable

21

BEARING, RADIAL BALL (6301U L) (FAG)

91053-K03-H02

Unavailable

22

DUST SEAL (27X40X4.5) (NOK)

91251-KGH-902

$0.91
