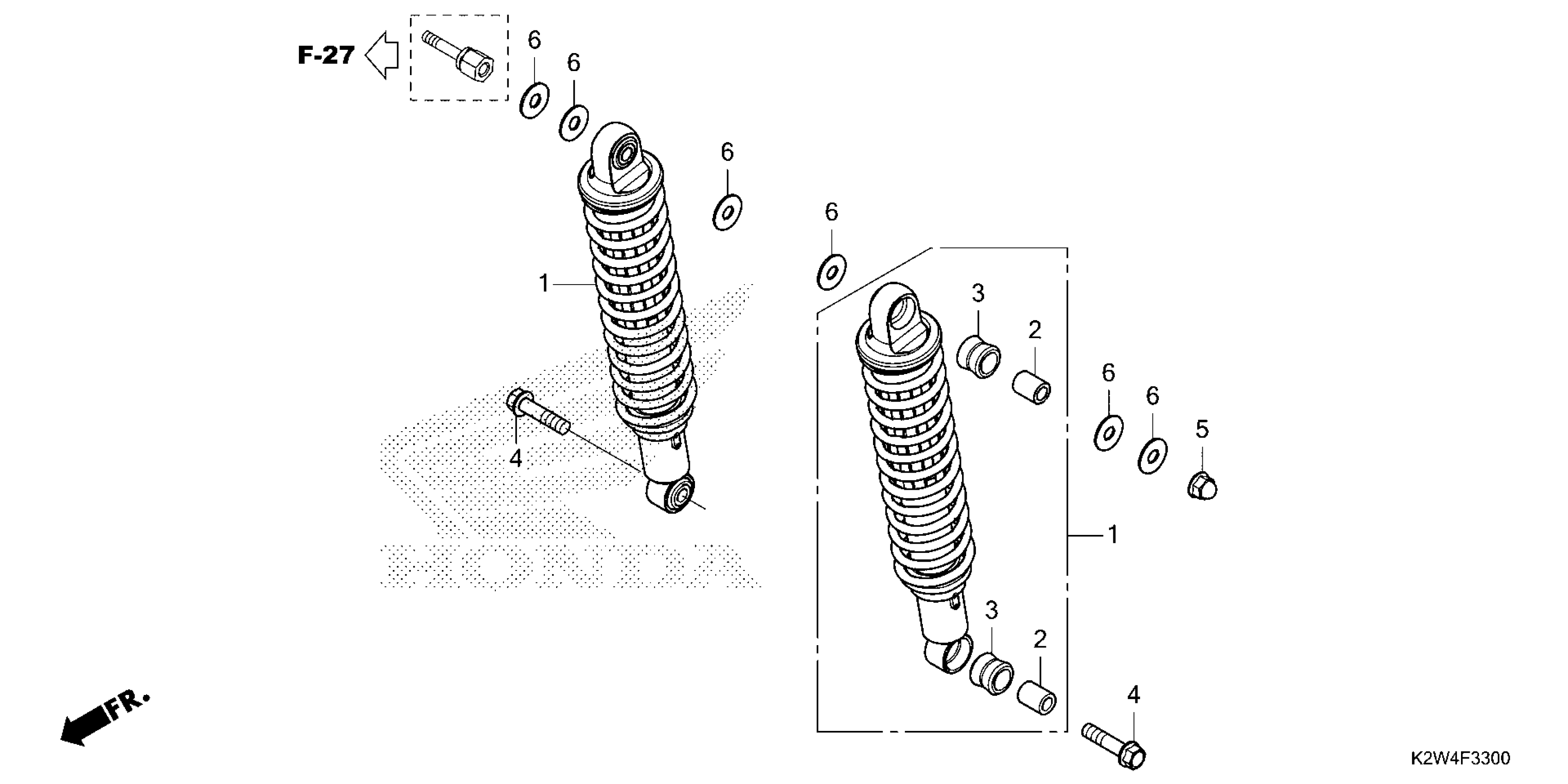

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., RR.

52400-K2W-J11

$122.59

2

COLLAR, RUBBER BUSH

52486-KBW-901

$1.26

3

BUSH, RUBBER (UPPER) (SHOWA)

52489-399-601

$5.04

4

BOLT, FLANGE (10X40)

90101-K2W-J20

$0.87

5

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.15

6

WASHER, PLAIN (10MM) (NOT AVAILABLE)

90501-KWW-640

$1.21
