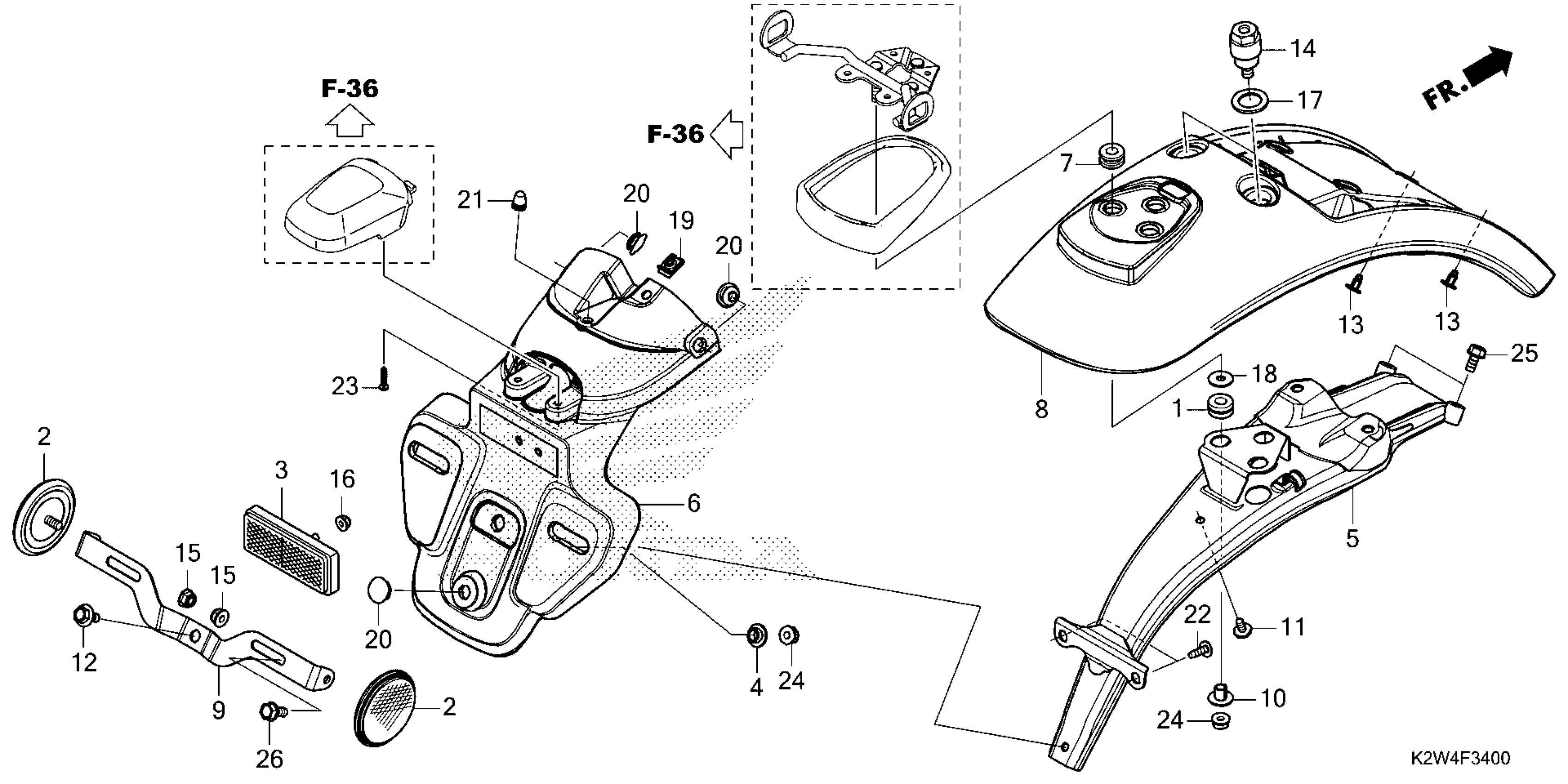

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 REAR FENDER Diagram

RUBBER A, PROTECTOR

18320-196-000

$2.67

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$24.28

REFLECTOR, REFLEX

33741-KPL-902

$7.58

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

STAY, RR. FENDER

50188-K2W-J10

$88.21

FENDER A, RR.

80100-K2W-J10

$19.31

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.74

FENDER B *NH146M*

80101-K2W-J10ZA

$29.62

BRACKET, NUMBER PLATE

84700-K26-G10

$9.98

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

SCREW, PAN (5X10)

90104-K94-T00

$1.49

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

BOLT, SPECIAL (8MM)

90175-K2W-J20

$8.54

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

WASHER (17X26X2)

90501-K2W-J10

$1.49

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

NUT, CLIP (5MM)

90677-KAN-961

$4.07

PLUG, HOLE

90852-KPP-T00

$1.66

PLUG, CONE TYPE

90899-422-610

$1.89

SCREW, TAPPING (5X16)

93903-25380

$1.49

SCREW, TAPPING (4X16)

93903-34420

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
