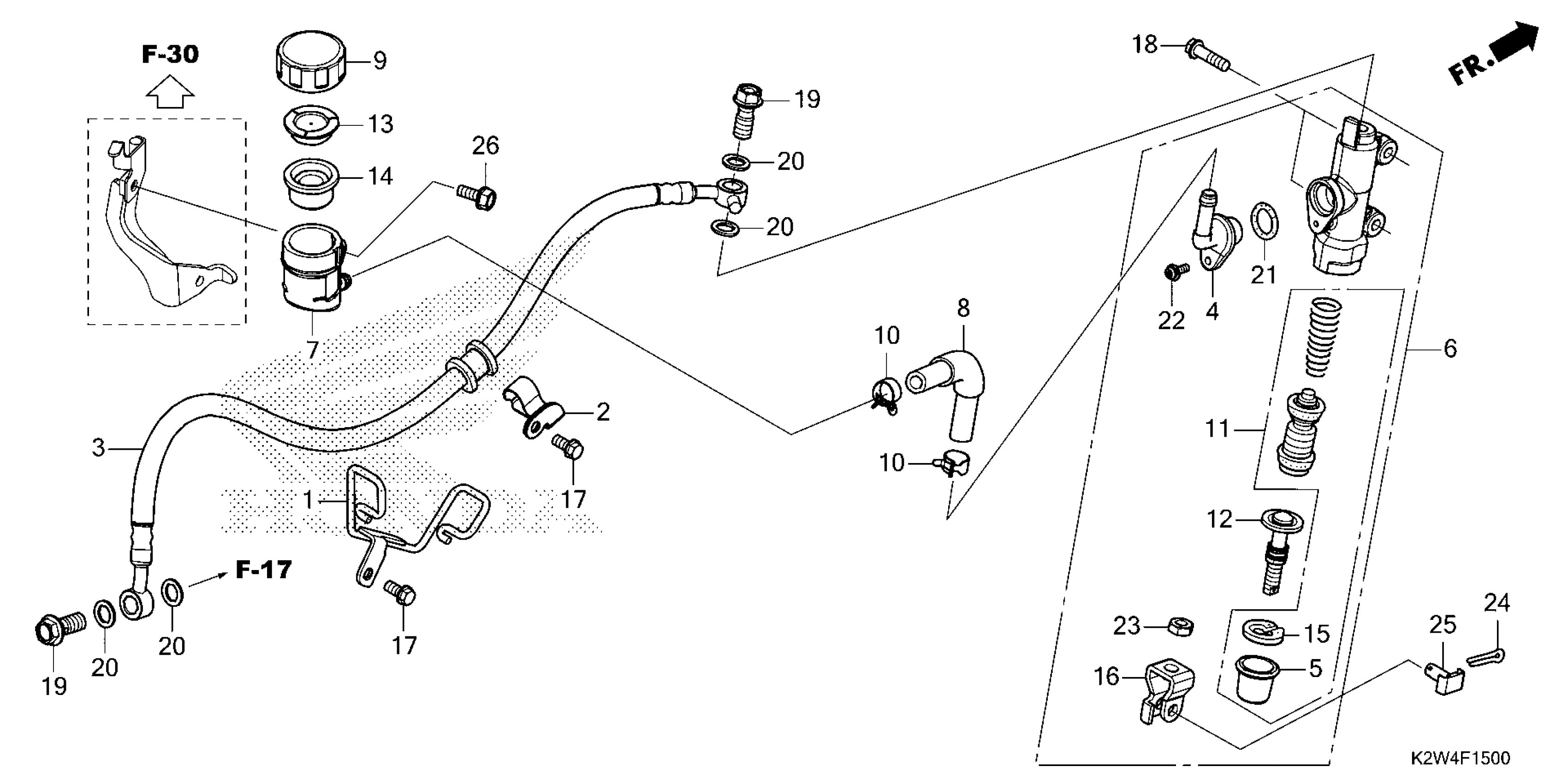

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP, RR. BRAKE HOSE

43155-K0F-T00

$8.41

2

CLAMP, RR. BRK HSE

43156-K2W-J10

$3.59

3

HOSE, RR. BRAKE

43310-K2W-J11

$13.49

4

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.74

5

BOOT

43504-MB2-006

$10.04

6

M/CYL SUB-ASSY, RR.

43510-K2W-J11

$69.41

7

CUP, MASTER CYLINDER OIL

43511-K1N-V01

$4.28

8

HOSE, RR. M/CYL

43512-K2W-J11

$8.87

9

CAP, MASTER CYLINDER

43513-KWN-671

$8.49

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

11

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

12

ROD, PUSH

43530-KV3-831

$22.82

13

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

14

DIAPHRAGM

45520-GM9-711

$9.15

15

CIRCLIP

46182-MEL-D21

$1.93

16

JOINT, BRAKE ROD

46504-KV6-702

$7.84

17

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

18

BOLT, FLANGE (6X22) (SH)

90101-K26-B00

$1.49

19

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.85

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

O-RING (14.8X2.4)

91212-422-006

$2.56

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

23

NUT, HEX. (8MM)

94002-08000-0S

$1.49

24

PIN, COTTER (2.0X12)

94201-20120

$1.49

25

PIN D, JOINT

95015-54000

$4.24

26

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
