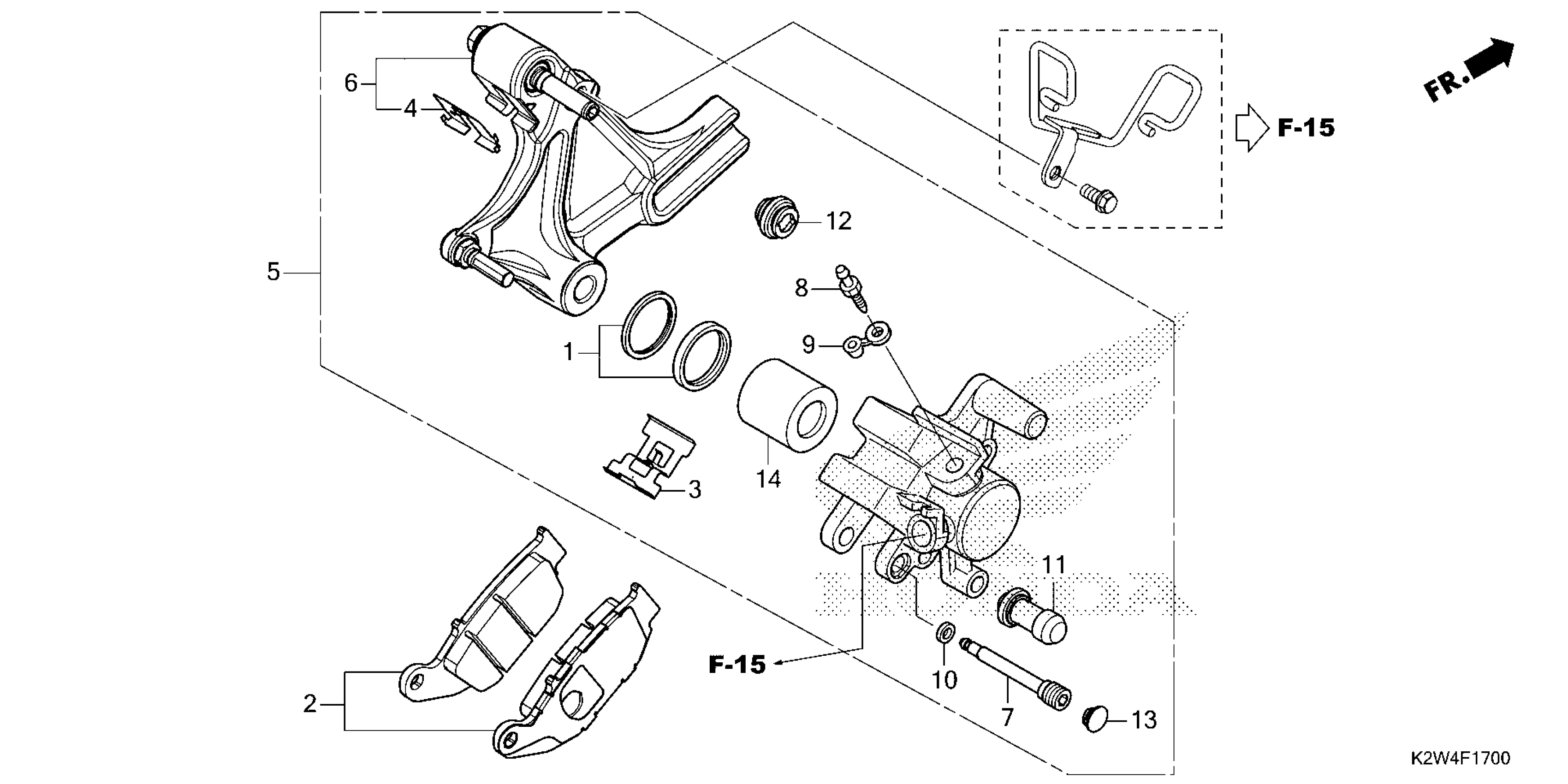

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

PAD SET, RR.

06435-K26-G01

$26.55

3

SPRING, PAD (NISSIN)

43108-KSP-B51

$4.68

4

RETAINER

43112-KZZ-901

$7.54

5

CALIPER SUB-ASSY.

43150-K2W-J11

$95.82

6

BRACKET SUB-ASSY.

43190-K2W-J11

$52.85

7

PIN, HANGER

43215-KGH-901

$2.92

8

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

RING, STOPPER

45111-MAJ-G41

$3.80

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

12

BOOT B

45133-MA3-006

$5.46

13

PLUG, PIN

45203-MCC-006

$2.89

14

PISTON B (27X35)

45218-MAJ-G41

$39.18
