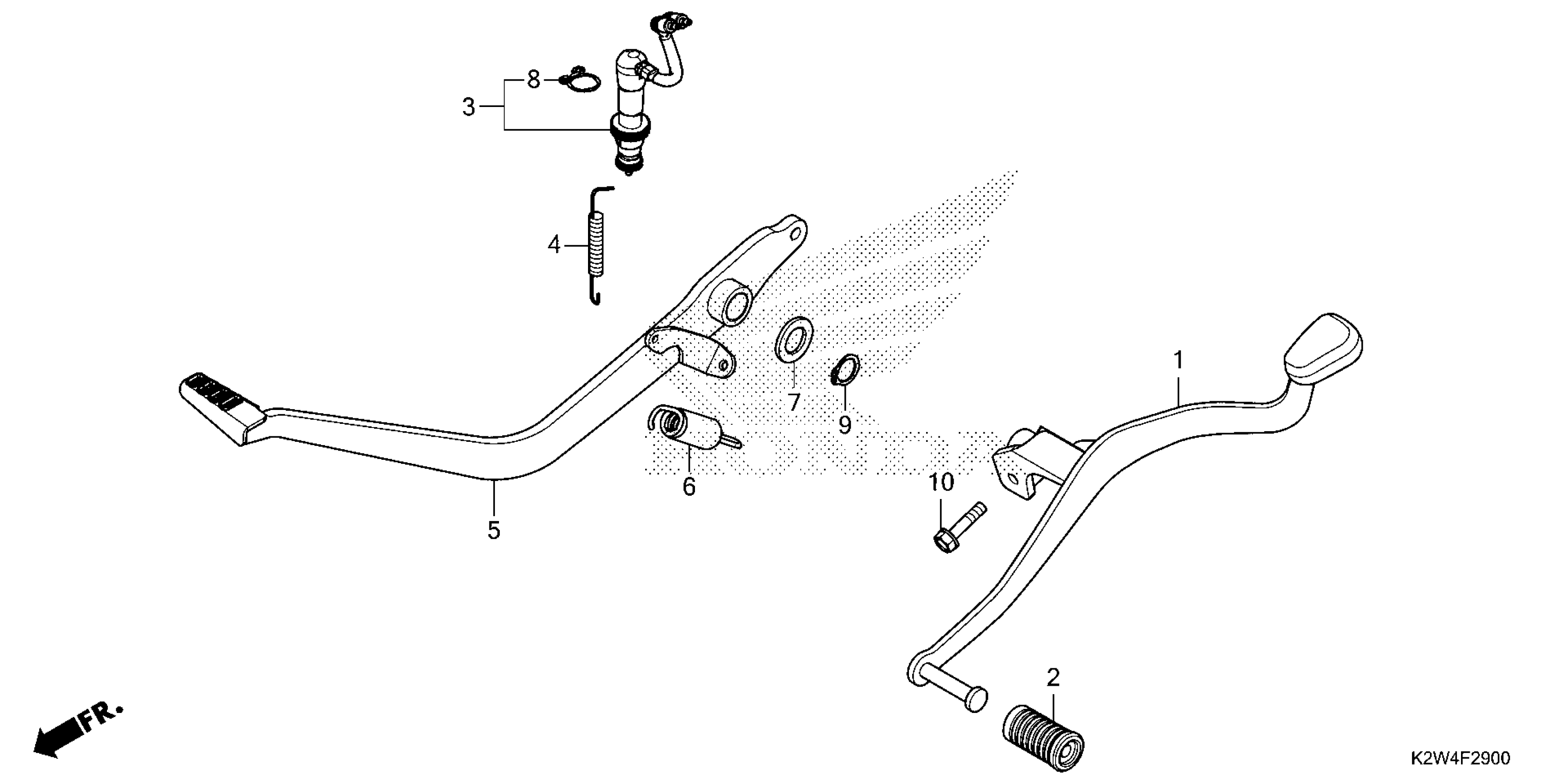

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-K2W-A20

$49.56

2

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

3

SWITCH, RR. STOP

35350-K2W-T01

$12.95

4

SPRING, STOP SWITCH

35357-HP6-A00

$4.57

5

PEDAL, BRAKE

46500-K2W-J10

$32.85

6

SPRING ASSY., BRAKE PEDAL

46513-KPP-900

$2.15

7

WASHER (15.2X25)

90557-230-000

$2.39

8

CLIP, SWITCH COVER

90601-KAF-003

$2.67

9

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

10

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
