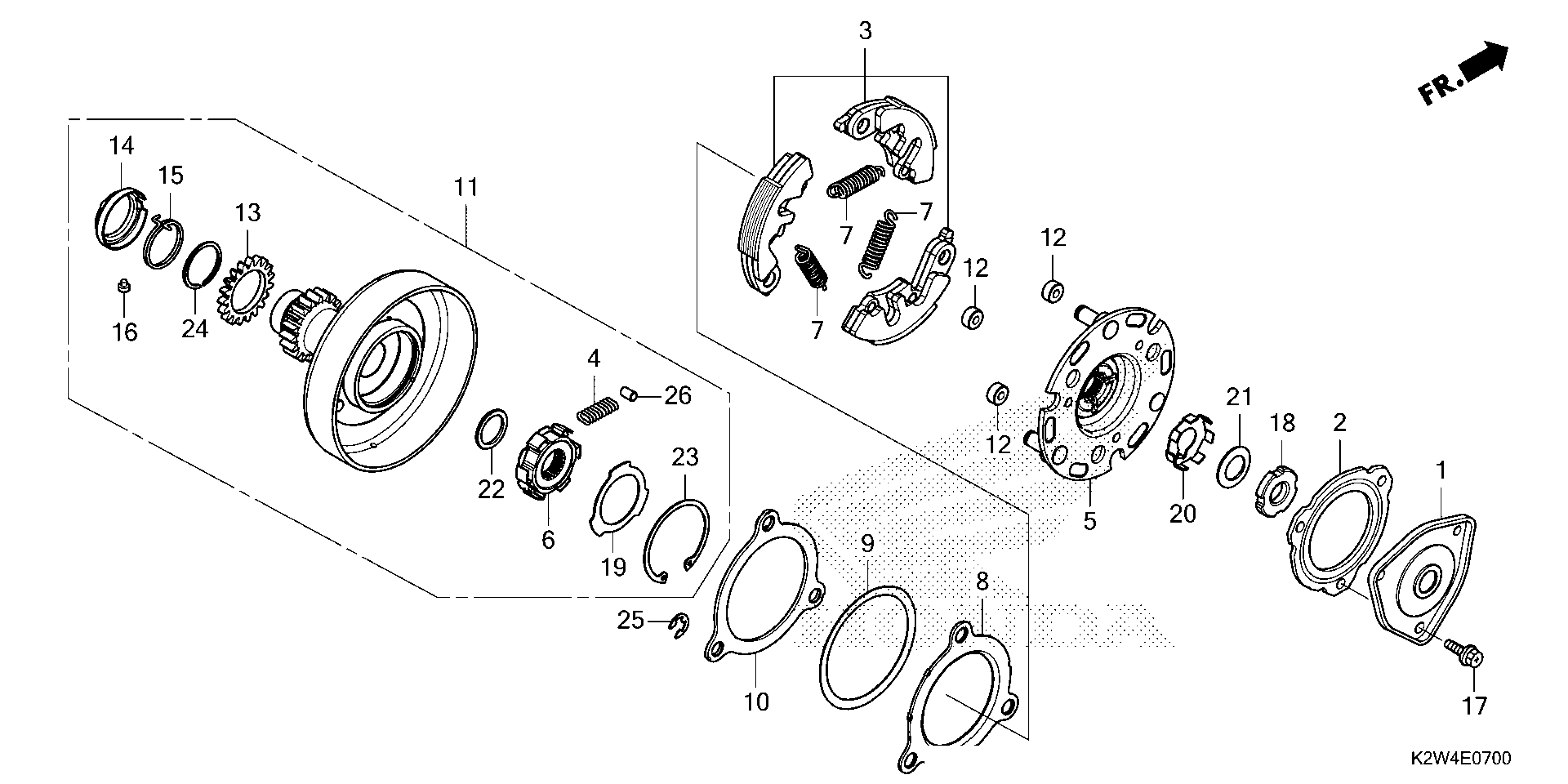

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 ONE-WAY CLUTCH Diagram

COVER, OIL FILTER

15431-KPH-900

$2.36

GASKET, OIL FILTER COVER (NICHIAS)

15439-KWW-741

$1.49

WEIGHT SET

22535-K3G-C10

$29.93

SPRING, ONE-WAY RETAINER

22606-GN5-910

$3.10

PLATE, PRIMARY DRIVE

22610-K1M-T31

$9.31

INNER

22630-KWB-601

$7.89

SPRING, PRIMARY CLUTCH

22641-KPH-900

$1.49

WASHER, CLUTCH SIDE

22642-K1M-T31

$1.56

SPRING, SIDE FRICTION (F.C.C.)

22643-KWW-741

$2.59

PLATE, CLUTCH SIDE

22644-K1M-T31

$2.25

CLUTCH OUTER ASSY.

22660-K3G-C11

$50.39

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

RUBBER, CLUTCH DAMPER

22804-KPH-880

$1.49

SUB-GEAR (19T)

23122-K1M-T00

$2.69

RETAINER, SPRING (F.C.C.)

23123-KPH-900

$7.49

SPRING, SUB-GEAR

23124-KPH-900

$1.49

PIN (F.C.C.)

23125-GN5-910

$3.72

BOLT, SPECIAL FLANGE (5X8)

90083-KFL-850

$1.49

NUT, LOCK (14MM)

90231-087-010

$3.80

WASHER (30X45X0.8)

90401-GB2-000

$5.26

WASHER, LOCK

90431-GN5-910

$4.02

WASHER B, LOCK

90432-086-000

$4.44

WASHER (17X23X1.5) (F.C.C.)

90433-KWB-601

$1.49

CIRCLIP (INNER) (45MM)

90455-GB2-000

$6.43

SET-RING (25MM)

90603-KPH-900

$1.93

CIRCLIP (7MM)

90605-166-720

$1.80

ROLLER (5X8)

91101-GB2-000

$3.85
