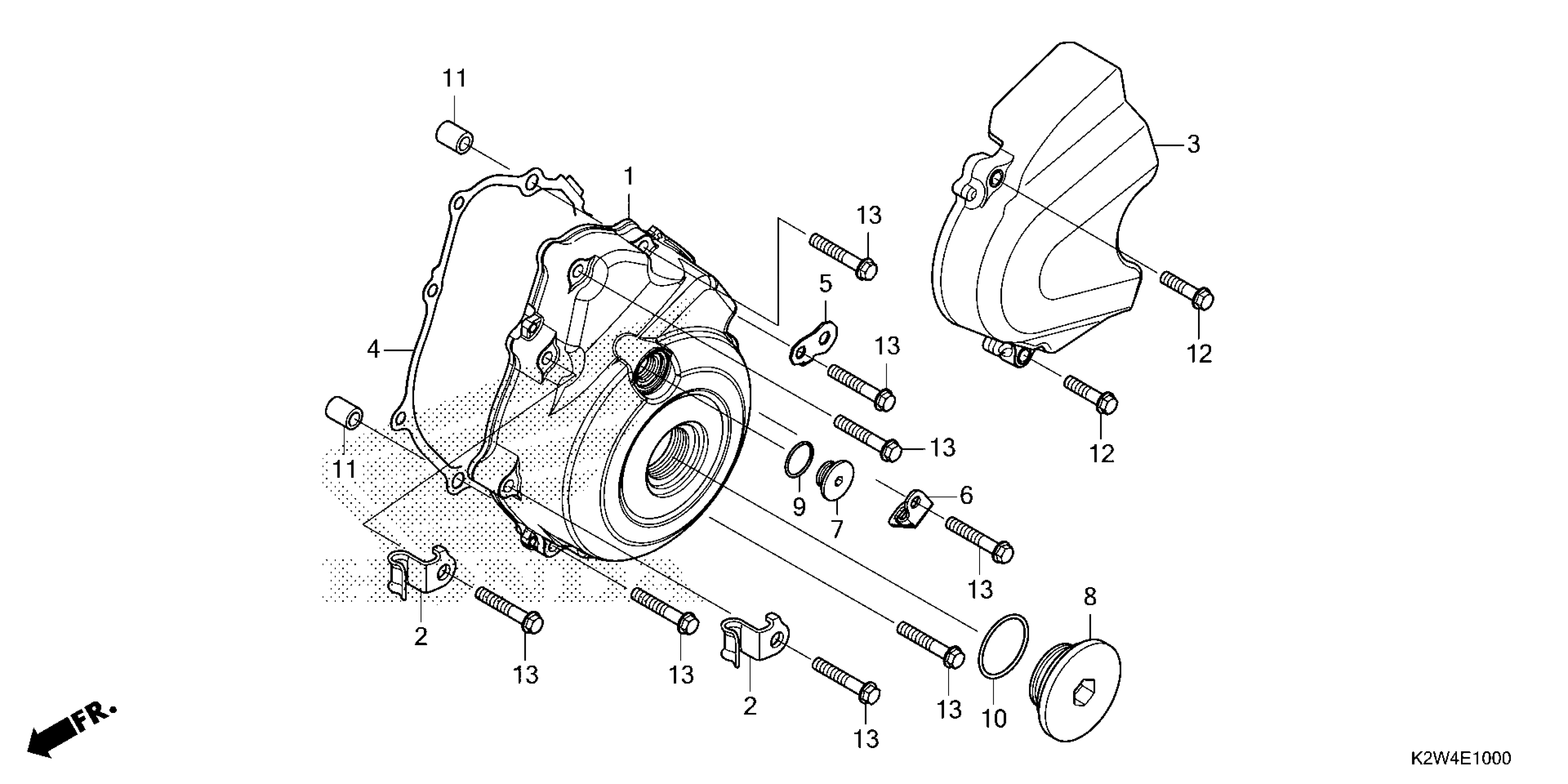

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-K26-G00

$29.75

CLAMP A, OIL TEMP SENSOR CORD

11346-KTR-940

$1.49

COVER, L. RR.

11360-K26-G00

$9.24

GASKET, L. CRANKCASE COVER (NICHIAS)

11395-K1M-T02

$1.62

STAY, HARNESS CLIP

32157-MJM-D00

$4.61

STAY, SIDE STAND SWITCH

35711-K26-G10

$3.52

CAP (14MM)

90084-KWA-930

$10.39

CAP (30MM)

90087-KTR-A00

$11.03

O-RING (13.8X2.5)

91308-KVR-C00

$1.82

O-RING (30MM)

91356-KWV-000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49
