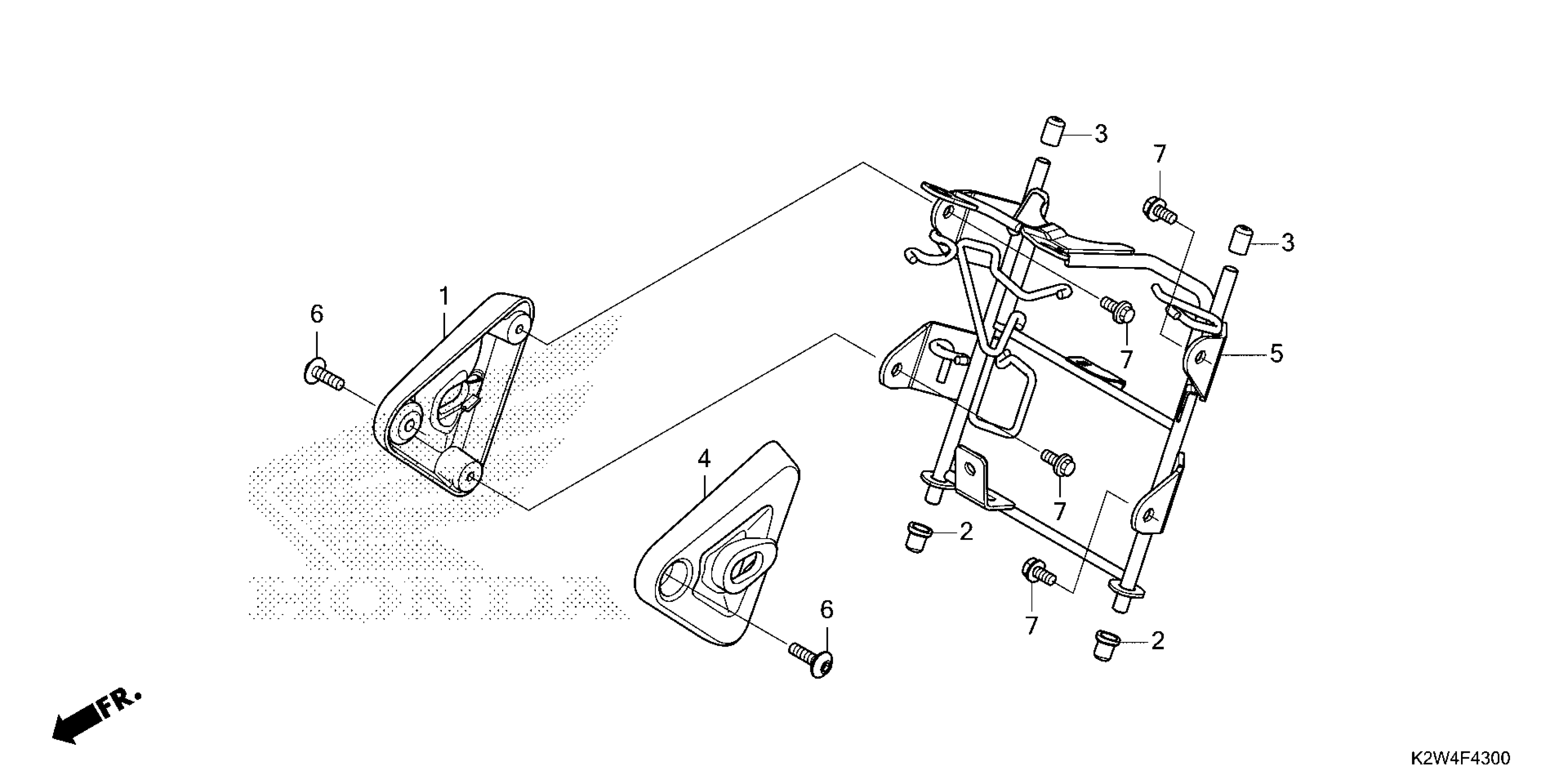

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 HEADLIGHT BRACKET Diagram

#

Description
Price

1

BRACKET, R. HEADLIGHT *B231P* (PEARL GLITTERING BLUE)

61310-K0F-T00ZD

$90.15

1

BRACKET, R. *NHB95P*

61310-K0F-T00ZF

$58.15

2

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

3

BOOT, HEADLIGHT BRACKET

61312-K26-900

$1.49

4

BRACKET, L. HEADLIGHT *B231P* (PEARL GLITTERING BLUE)

61320-K0F-T00ZD

$90.15

4

BRACKET, L. *NHB95P*

61320-K0F-T00ZF

$63.02

5

STAY, HEADLIGHT

61340-K2W-J10

$44.84

6

SCREW, PAN (6X18)

90130-K26-900

$1.49

7

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
