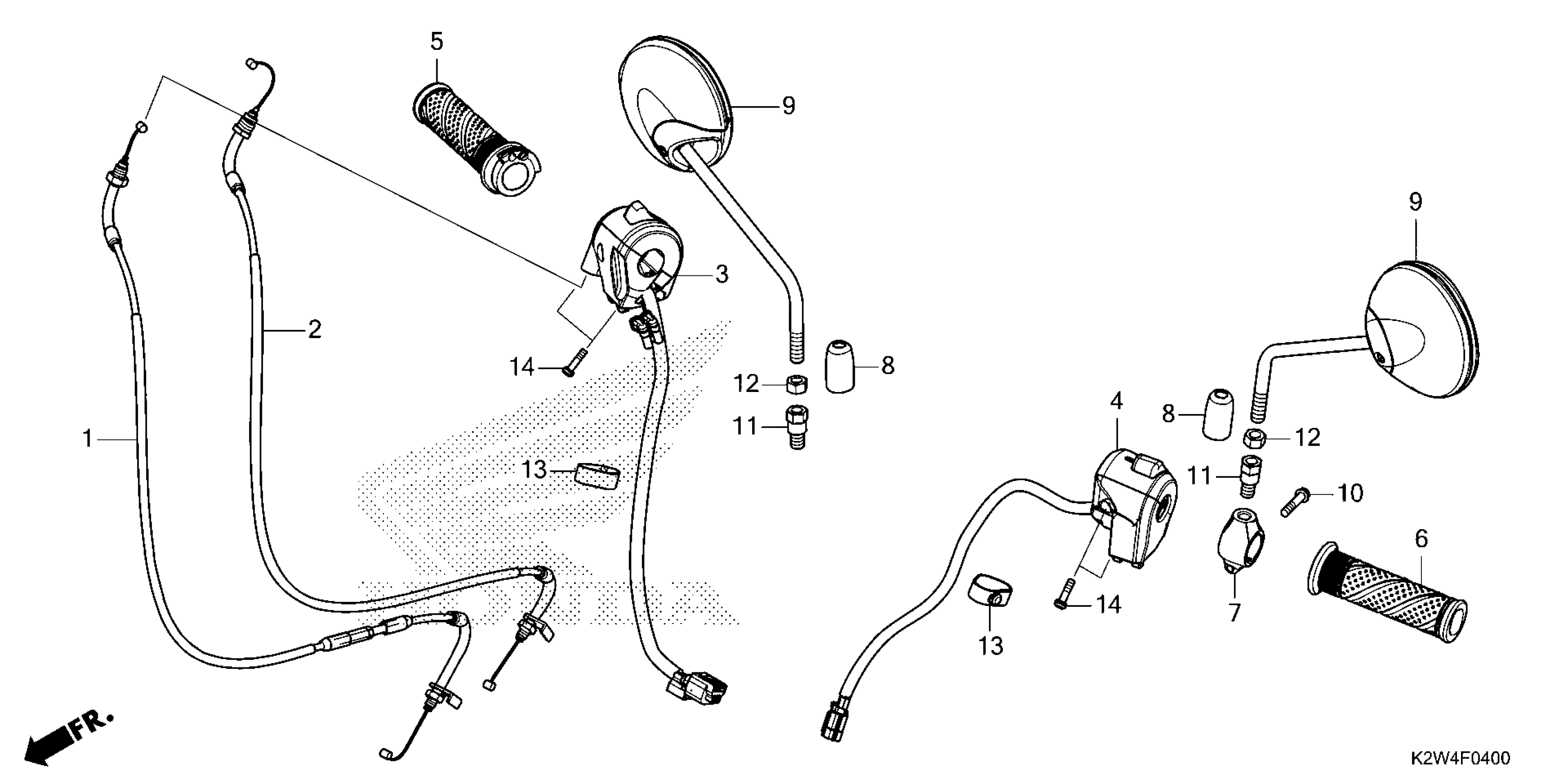

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 HANDLE SWITCH@CABLE @MIRROR Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-K2W-J11

$13.26

2

CABLE B, THROTTLE

17920-K2W-J11

$9.72

3

SWITCH, ENGINE STOP

35130-K0F-T61

$44.69

4

SWITCH ASSY.

35200-K2W-T01

$33.94

5

GRIP, THROTTLE

53140-K0F-T00

$9.08

6

GRIP, L. HANDLE

53166-K0F-T00

$4.05

7

HOLDER, BACK MIRROR

53173-K2E-T00

$11.56

8

CAP, LOCK NUT

88119-KWW-640

$1.49

9

MIRROR

88210-K2W-J10

$11.79

10

BOLT, FLANGE (6X28)

90013-GHB-680

$0.91

11

BOLT, ADAPTER (10MM)

90101-KWW-640

$2.07

12

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-KWW-640

$1.00

13

BAND, RUBBER (70)

90651-MKH-D20

$2.98

14

SCREW-WASHER (5X20)

93892-05020-07

$0.79
