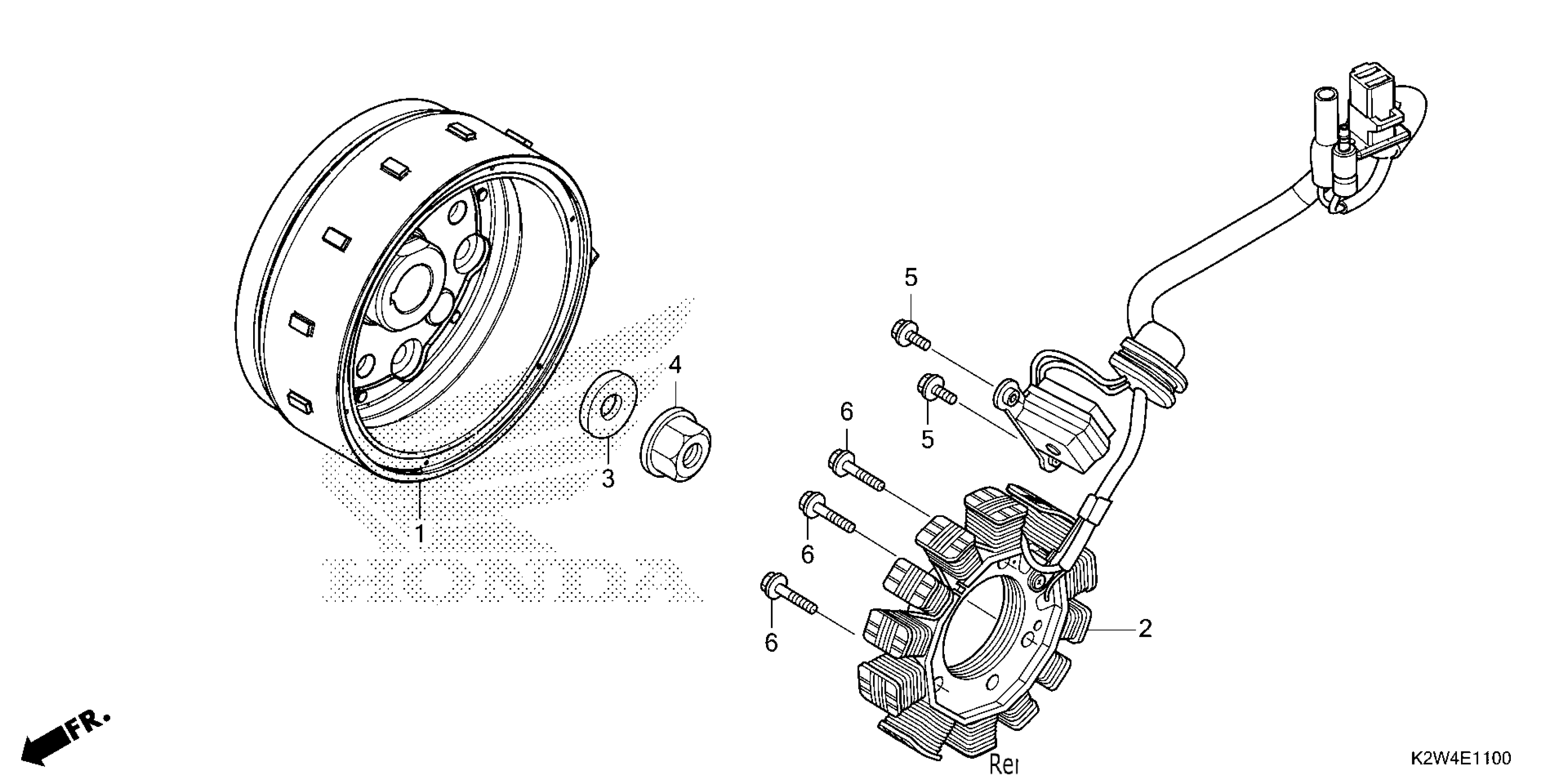

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 GENERATOR Diagram

#

Description

Price

1

FLYWHEEL

31110-K0G-T21

$50.18

2

STATOR

31120-K1M-T01

$27.69

3

WASHER (12X24X2.3)

90439-KWZ-900

$0.85

4

NUT, FLANGE (12MM)

94050-12000

$0.96

5

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

6

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
