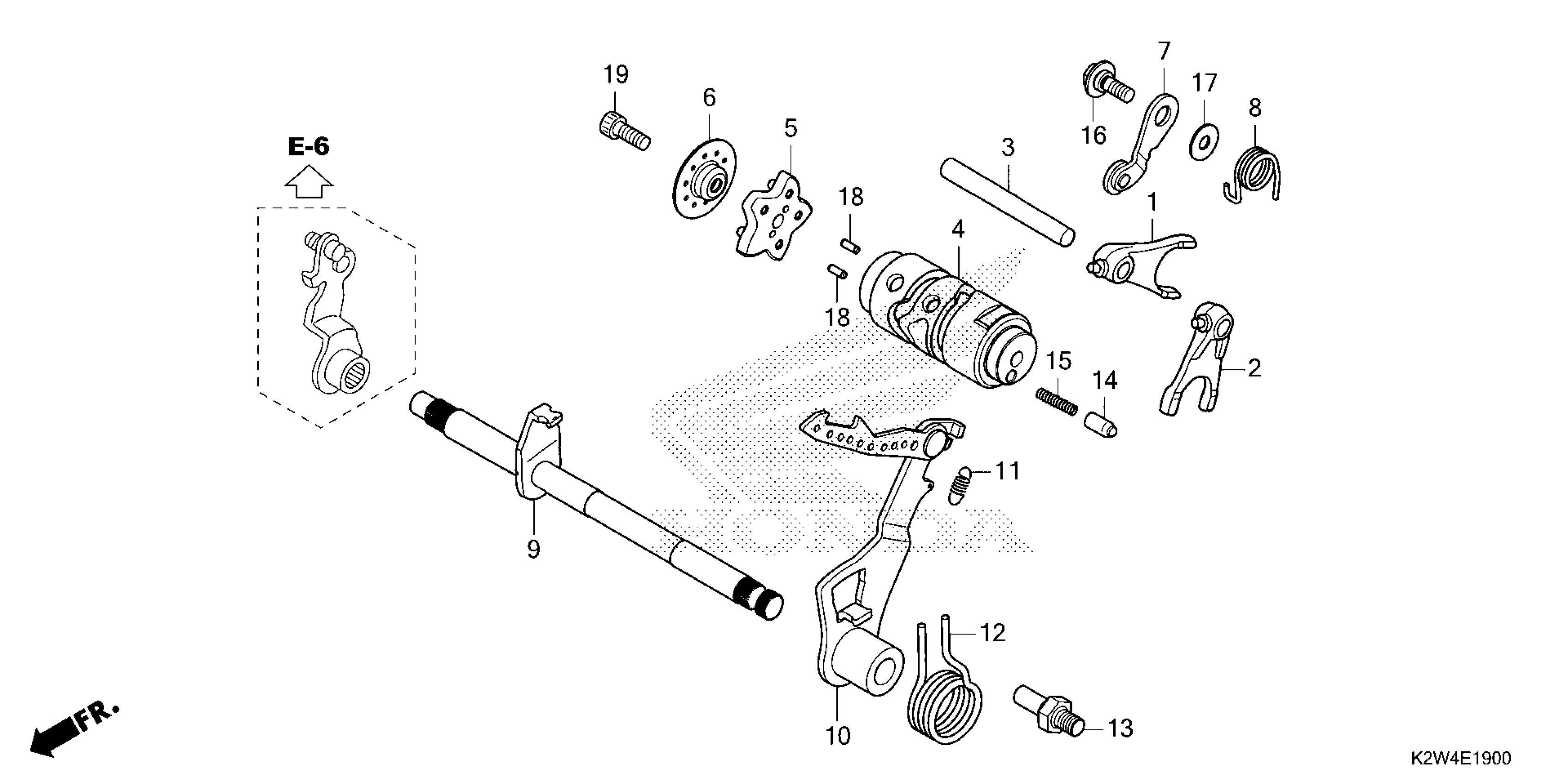

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 GEARSHIFT DRUM Diagram

Description

Price

FORK, R. GEARSHIFT

24211-K1M-T00

$14.03

FORK, L. GEARSHIFT

24212-K1M-T00

$14.03

SHAFT

24241-K1M-T00

$2.85

DRUM, GEARSHIFT

24301-K2E-A10

$36.75

PLATE

24410-K2E-A10

$39.98

HOLDER, DRUM STOPPER

24421-K1M-T00

$2.15

STOPPER, GEARSHIFT DRUM

24430-K1M-T00

$11.72

SPRING

24435-K1M-T00

$1.61

SPINDLE, GEARSHIFT

24610-K1M-T00

$18.75

ARM, GEARSHIFT

24630-K1M-T00

$10.33

SPRING, GEARSHIFT ARM

24641-K1M-T00

$1.98

SPRING, GEARSHIFT RETURN

24651-KPH-900

$2.33

PIN, SHIFT RETURN SPRING

24652-KPH-900

$4.62

CAP, CHANGE SWITCH CONTACT

35751-K26-920

$5.77

SPRING, CHANGE SWITCH CONTACT

35752-KPH-900

$1.49

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

WASHER (6.1MM)

90435-HB3-000

$2.92

ROLLER (3X8.5)

96220-30085

$1.49

BOLT, SOCKET (6X16)

96600-06016-08

$1.74
