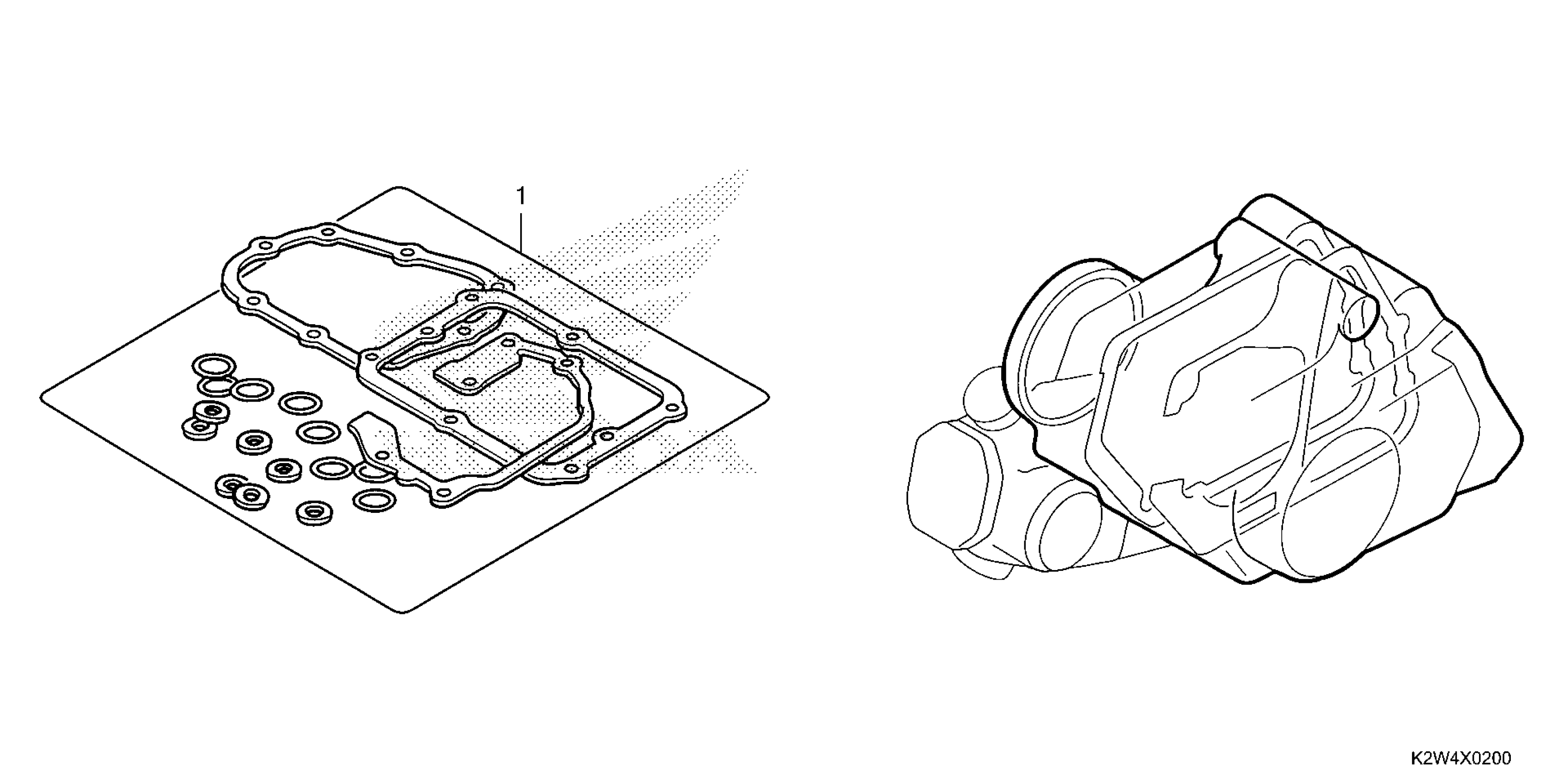

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 GASKET KIT B Diagram

GASKET KIT, B

06112-K0G-D60

$8.37

GASKET, R.

11394-K1M-T01

$5.38

GASKET, R. CRANKCASE COVER (NICHIAS)

11394-K1M-T02

Unavailable

GASKET, L.

11395-K1M-T01

$1.85

GASKET, L. CRANKCASE COVER (NICHIAS)

11395-K1M-T02

$1.46

GASKET B, HEAD COVER

12396-KRM-840

Unavailable

GASKET, OIL FILTER COVER (NICHIAS)

15439-KWW-741

$1.13

GASKET, OIL FILTER

15439-K09-C51

Unavailable

O-RING

37501-K2Y-J01

$0.91

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.71

O-RING (21X2.4)

91301-HP2-671

$2.15

O-RING (39.8X2.2)

91302-K0G-911

$5.10

O-RING (8MM)

91303-001-010

$2.24

O-RING (11.4X2.1)

91304-K0L-D01

$1.01

O-RING (3.8X1.4)

91305-K0J-N00

$0.21

O-RING (18X3)

91307-KRM-840

$0.76

O-RING (13.8X2.5)

91308-KVR-C00

$1.63

O-RING (16X3.1)

91309-GFC-771

$1.63

O-RING (30MM)

91356-KWV-000

$1.28
