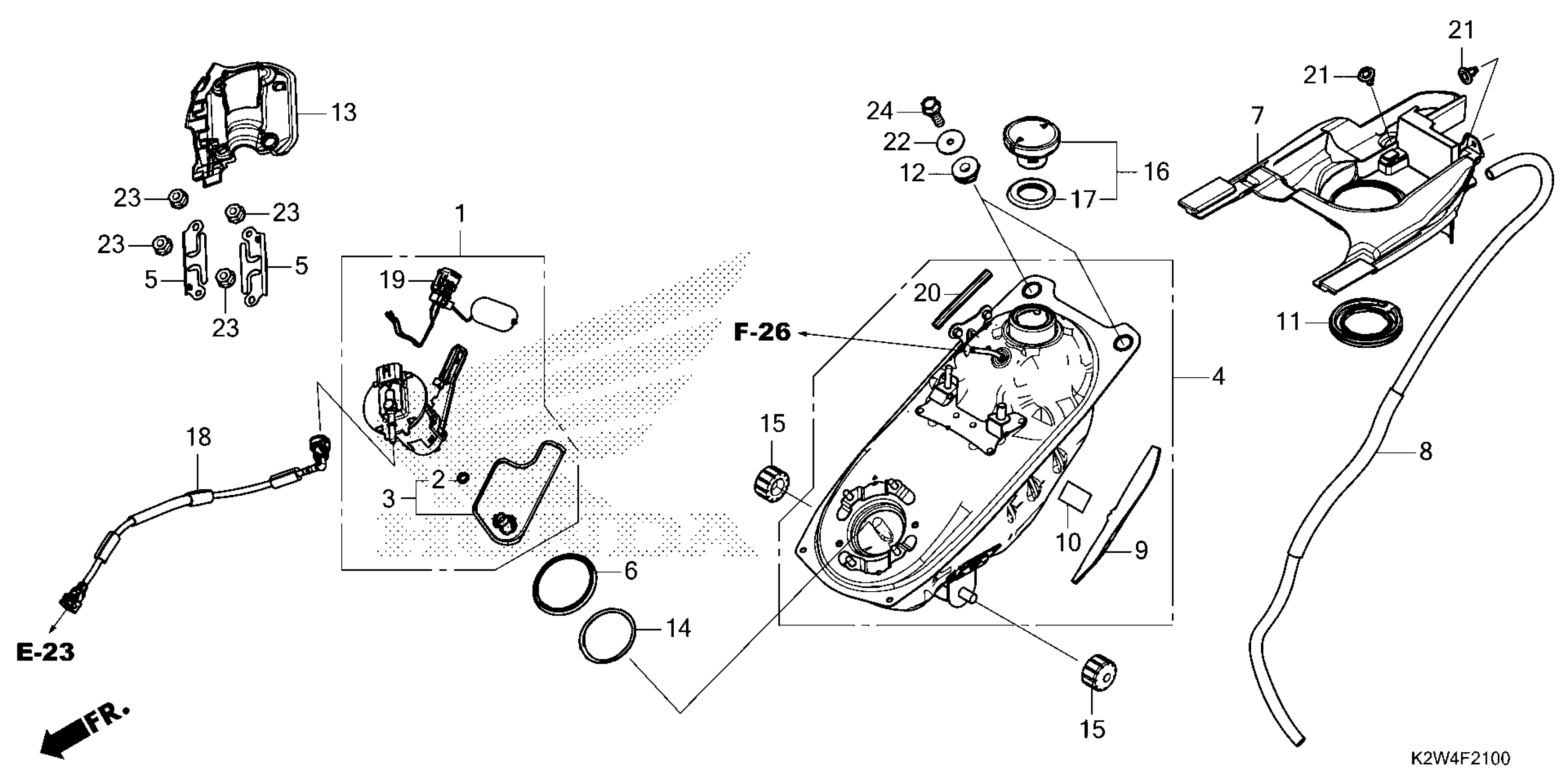

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

1

PUMP UNIT, FUEL (MSDS)

16700-K26-G01

$87.72

2

O-RING (P5)

16706-K0J-N01

$1.49

3

FILTER SET

16707-K1M-T01

$8.59

4

TANK ASSY., FUEL

17500-K2W-J10

$191.92

5

RETAINER, FUEL PUMP

17517-GGL-J00

$7.36

6

DUST SEAL (OHTUKA POLY-TECH)

17518-GHB-601

$8.59

7

TRAY, FUEL TANK

17520-K2W-J10

$17.25

8

TUBE, DRAIN

17522-K2W-J10

$9.26

9

FILM (35X160)

17523-K2W-J10

$9.84

10

FILM (20X35)

17524-K2W-J10

$1.89

11

RUBBER, FUEL SEAL

17527-KZR-600

$2.69

12

RUBBER, TANK

17531-K26-900

$1.49

13

COVER, FUEL PUMP

17541-K2W-J10

$8.64

14

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$9.32

15

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.22

15

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

16

CAP, FUEL FILLER

17620-K01-902

$26.72

17

GASKET, FUEL FILLER CAP

17632-383-832

$7.79

18

HOSE, FUEL FEED

17650-K2W-T01

$13.70

19

FUEL UNIT

37800-K26-G01

$35.26

20

RUBBER, PROTECTOR

64121-MCJ-750

$3.36

21

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

22

WASHER, TANK SETTING

90136-428-870

$1.56

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62
