Description

Price

1

GUIDE, SENSOR WIRE

38515-K26-C10

$3.15

2

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$3.10

3

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

4

SENSOR, FR. SPEED

38520-K2W-T11

$16.59

5

FORK ASSY., R. FR. (SHOWA)

51400-K26-G61

$423.25

6

TUBE (OUTER)

51410-K26-G01

$158.97

7

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.60

8

BUSH, GUIDE

51414-K0F-T01

$10.00

9

BUSH, SLIDER

51415-K20-901

$21.38

10

SEAT

51419-K20-T21

$1.97

11

DAMPER, R. FR.

51425-K26-G51

$341.59

12

RING B, PISTON

51438-K20-901

$15.68

13

O-RING

51458-K20-901

$13.86

14

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$21.04

15

FORK ASSY., L. FR. (SHOWA)

51500-K26-G01

$395.33

16

RUBBER, STOPPER

51517-K20-T21

$2.21

17

DAMPER, L. FR.

51525-K26-G01

$347.97

18

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$1.49

19

BOLT, FR. FORK

90123-K20-T21

$22.95

20

NUT, LOCK (12MM) (SOURCE: VINTAGE PARTS INC.)

90301-MB9-950

$3.11

21

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$5.13

22

DUST SEAL (SHOWA)

91254-GAA-003

$17.00

23

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

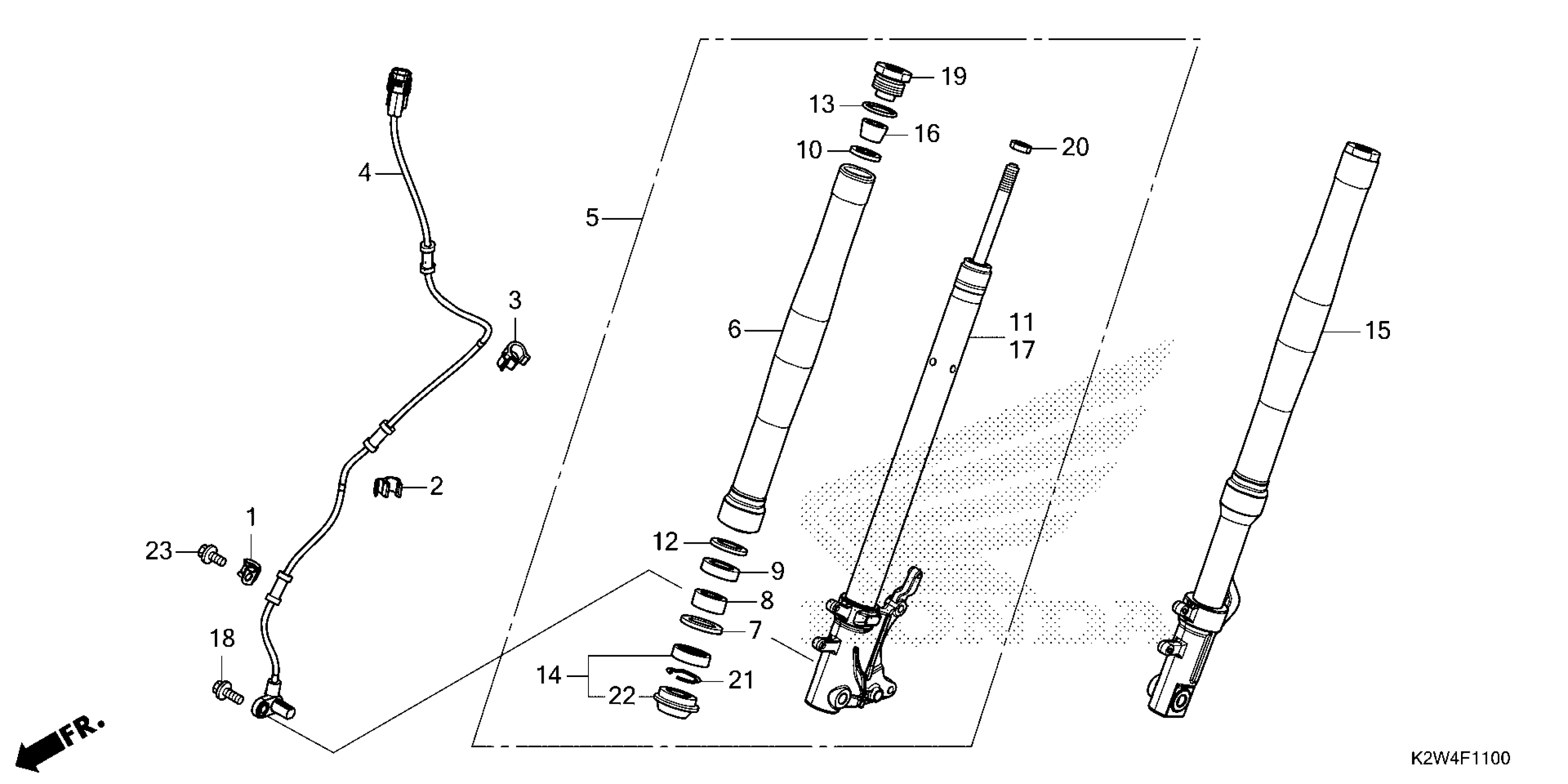

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 FRONT FORK Diagram
