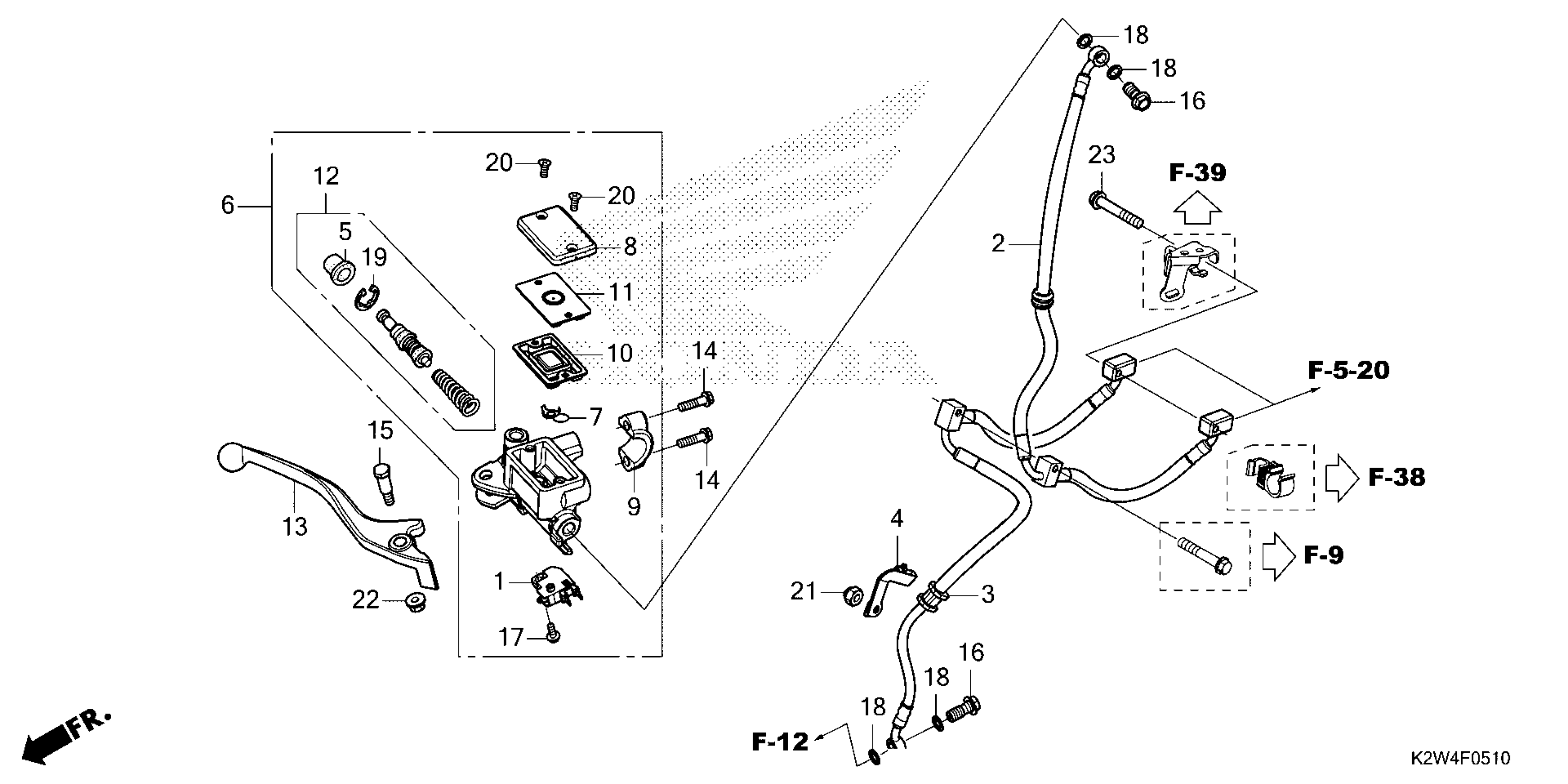

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

HOSE A, FR. BRAKE

45125-K2W-J11

$34.90

3

HOSE B, FR. BRAKE

45126-K2W-J11

$35.34

4

CLAMP B, FR. BRK HSE

45157-K2W-J10

$4.43

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$112.68

6

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-K26-901.

45510-K26-305

$112.68

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

DIAPHRAGM

45520-GE2-006

$9.58

11

PLATE, DIAPHRAGM

45521-K21-901

$2.34

12

MASTER CYLINDER SET

45530-471-831

$40.86

13

LEVER, R. HANDLEBAR (COO)

53175-K26-305

$16.98

13

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

$16.98

14

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

15

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

16

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.85

17

SCREW-WASHER (4X12)

90508-K21-921

$1.49

17

SCREW-WASHER (4X12)

93893-04012-07

$1.49

17

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

NUT, CAP (6MM)

94021-06070-0S

$1.62

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
