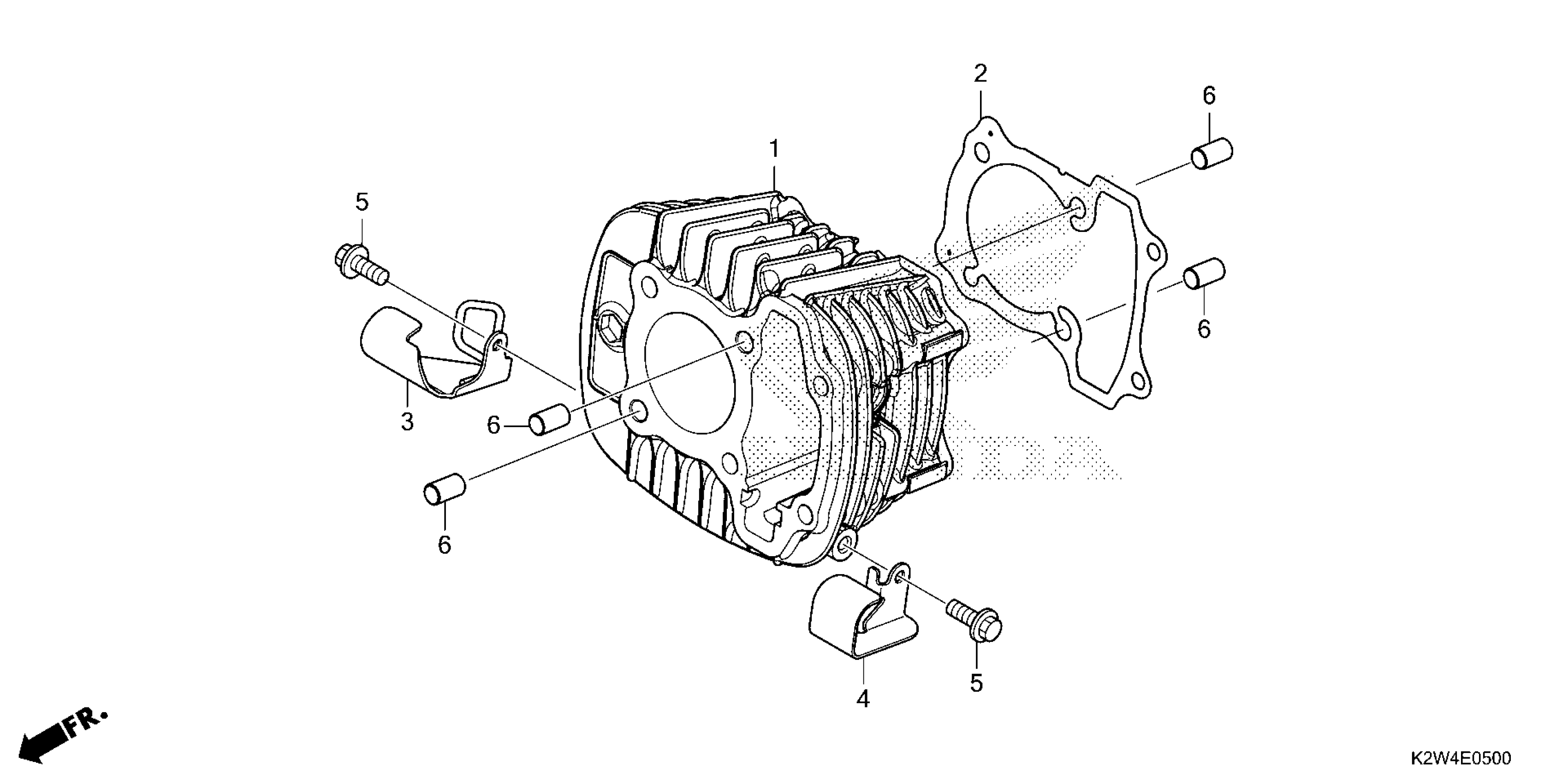

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-K0G-T20

$92.38

2

GASKET, CYLINDER (NICHIAS)

12191-K1M-T02

$2.38

3

GUIDE

36535-K2W-T00

$12.84

4

GUARD, THERMOSTAT OIL

37751-K26-G00

$2.76

5

BOLT, FLANGE (6X14)

90005-MGZ-J00

$0.91

6

PIN, DOWEL SPECIAL (8X14)

90701-KFM-900

$0.81
