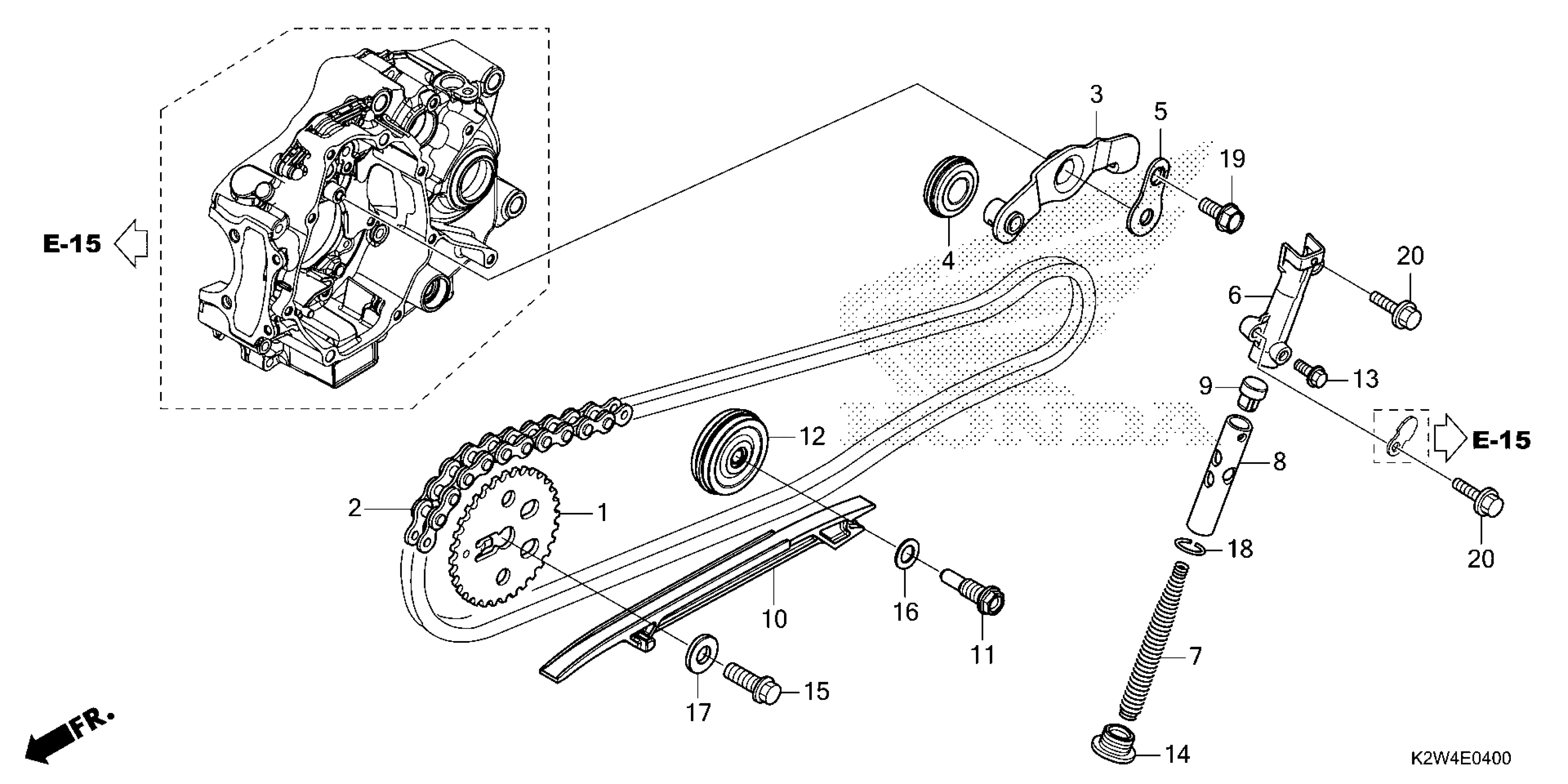

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (32T)

14321-K1M-T00

$8.88

CHAIN, CAM (25HDS-90LE) (RK-M)

14401-K1M-T01

$7.32

ARM, CAM CHAIN TENSIONER

14500-K1M-T00

$8.41

ROLLER, CAM CHAIN TENSIONER

14510-K1M-T01

$7.81

PLATE, TENSIONER ARM SETTING

14515-K1M-T00

$1.06

LIFTER BODY

14521-K26-G01

$15.57

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.54

PUSH ROD COMP

14550-K26-G01

$4.71

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

Unavailable

GUIDE, CAM CHAIN

14611-K3F-T00

$4.01

PIN, GUIDE ROLLER

14615-K1M-T00

$1.46

ROLLER, CAM CHAIN GUIDE

14620-K1M-T01

$8.87

BOLT, FLANGE (6X12) (NSHF)

90005-K1M-T00

$0.99

BOLT, CAP (14MM)

90081-K1M-T00

$4.43

BOLT, FLANGE (8X22)

90082-K1M-T00

$1.01

WASHER (8MM)

90475-KWB-600

$0.81

WASHER (8MM)

90483-KWN-900

$0.78

CLIP (12MM)

90603-K1M-T00

$1.43

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
