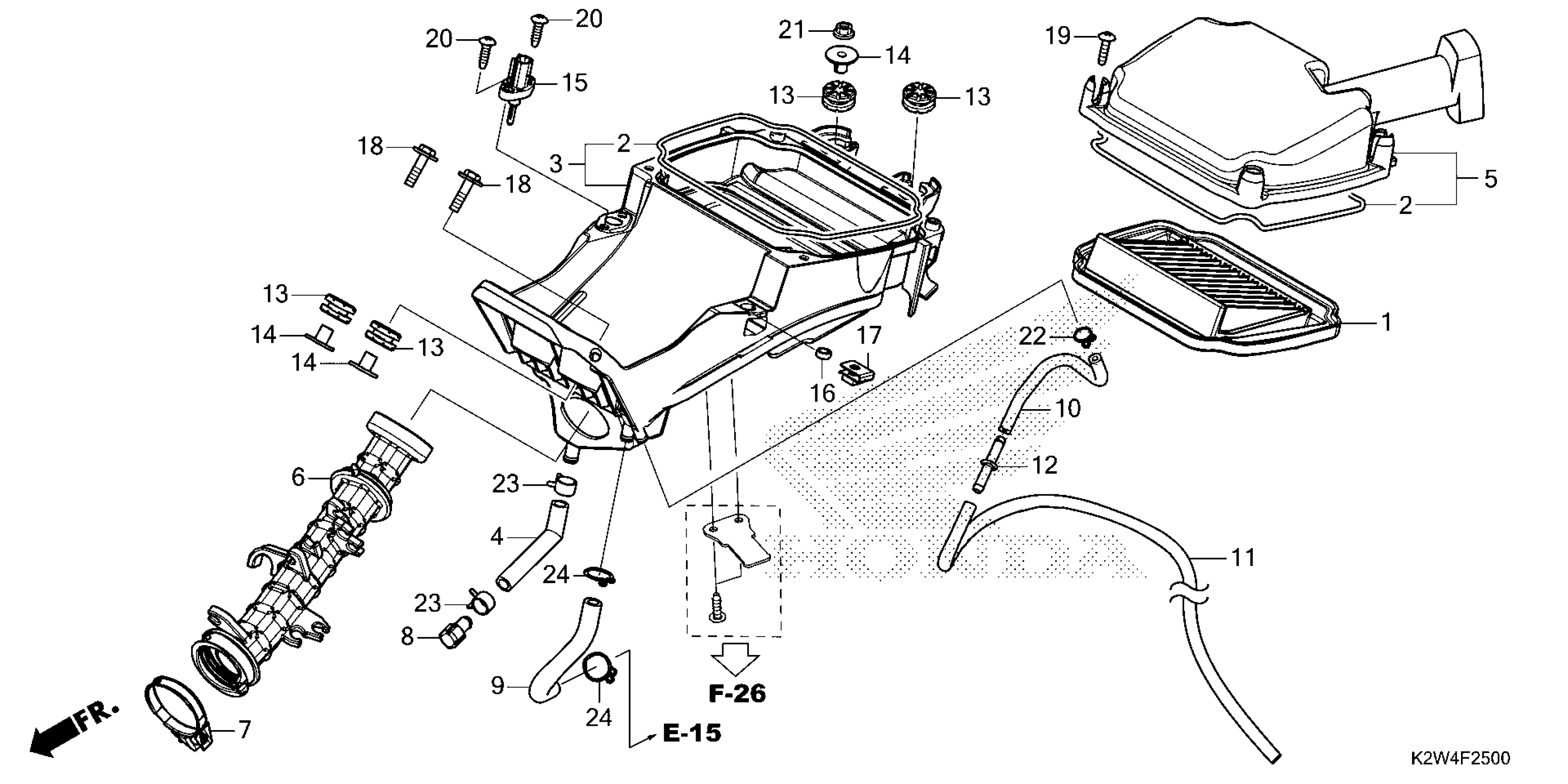

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-K2W-J10

$7.18

2

SEAL, AIR CLEANER

17214-K2W-J10

$1.49

3

CASE SUB-ASSY.

17225-K2W-J10

$14.08

4

TUBE, DRAIN

17227-K2W-J10

$6.31

5

CVR SUB, A/CLNR

17235-K2W-J10

$8.59

6

TUBE

17253-K2W-J10

$26.51

7

BAND, CONNECTING TUBE (44)

17254-K26-900

$4.20

8

PLUG, BREATHER TUBE

17370-419-700

$3.74

9

TUBE, BREATHER

17371-K2W-J10

$3.92

10

TUBE

17372-K2W-J10

$3.25

11

TUBE B

17373-K2W-J10

$7.46

12

JOINT, TUBE

19126-K2W-J10

$2.46

13

RUBBER, TAILLIGHT MOUNTING

33705-KPG-T00

$2.52

14

COLLAR (11MM)

33706-KPG-T00

$1.49

15

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

16

COLLAR, RR. FENDER

80108-K45-N40

$1.49

17

NUT, CLIP (6MM)

90311-MT3-000

$5.78

18

BOLT-WASHER (6X25)

93404-06025-00

$1.49

19

SCREW, TAPPING (5X20)

93903-25480

$1.49

20

SCREW, TAPPING (5X20)

93913-255J0

$1.72

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

CLIP, TUBE (B10)

95002-02100

$1.90

23

CLAMP, TUBE (D12)

95002-41200-08

$2.34

24

CLIP, TUBE (C12)

95002-80000

$1.49
