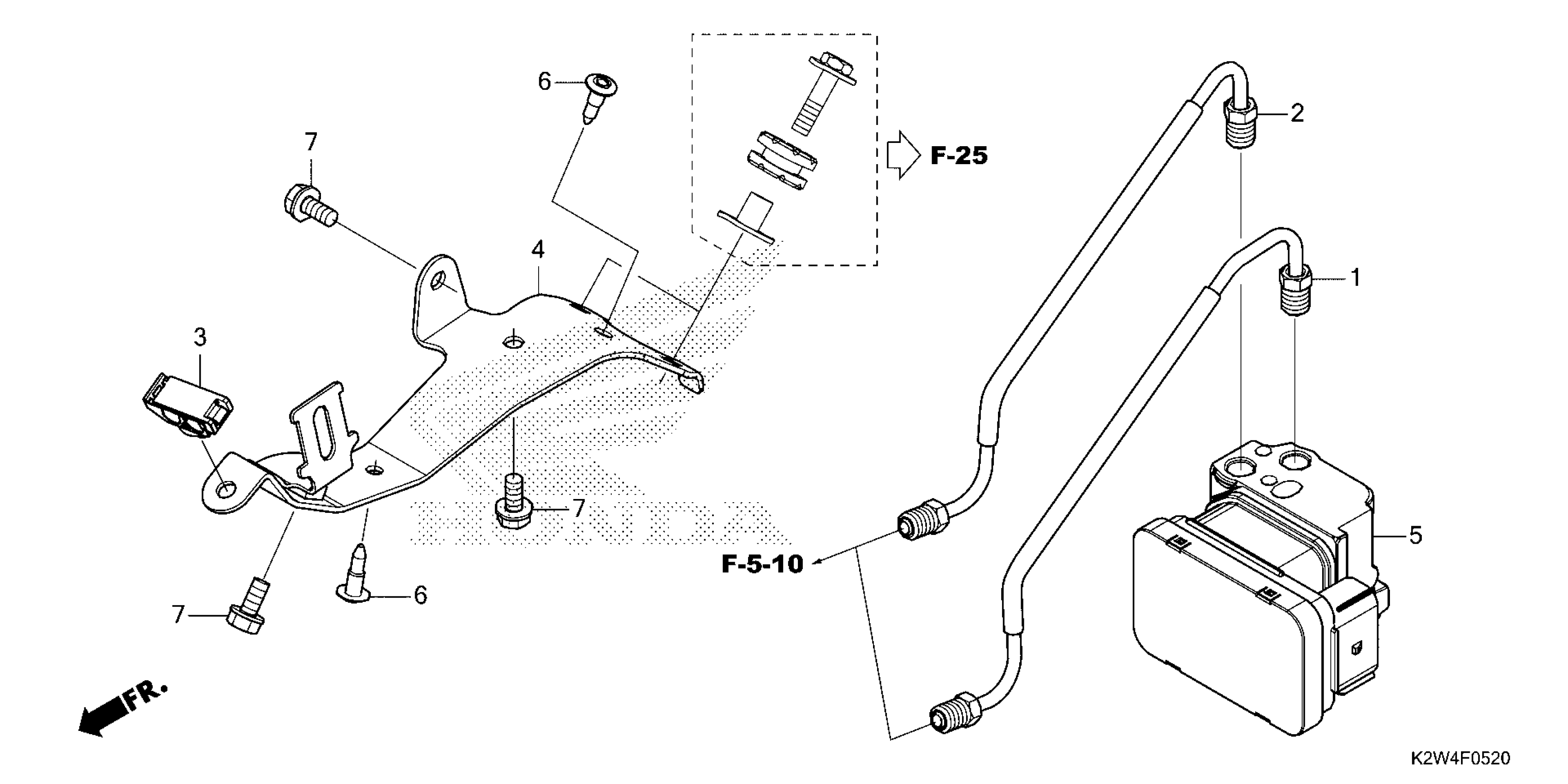

Honda DAX125AC (25) MOTORCYCLE, THA, VIN# MLHJB065-S5000001 ABS MODULATOR@BRAKE PIPE Diagram

#

Description

Price

1

PIPE A, FR. BRAKE

45131-K2W-J10

$4.84

2

PIPE B, FR. BRAKE

45132-K2W-J10

$5.07

3

CLIP, BRAKE PIPE

46392-TF0-003

$1.75

4

TRAY, ABS MODULATOR

50240-K2W-J10

$8.71

5

MODULATOR ASSY.

57110-K2W-J12

$540.60

6

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

7

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84
