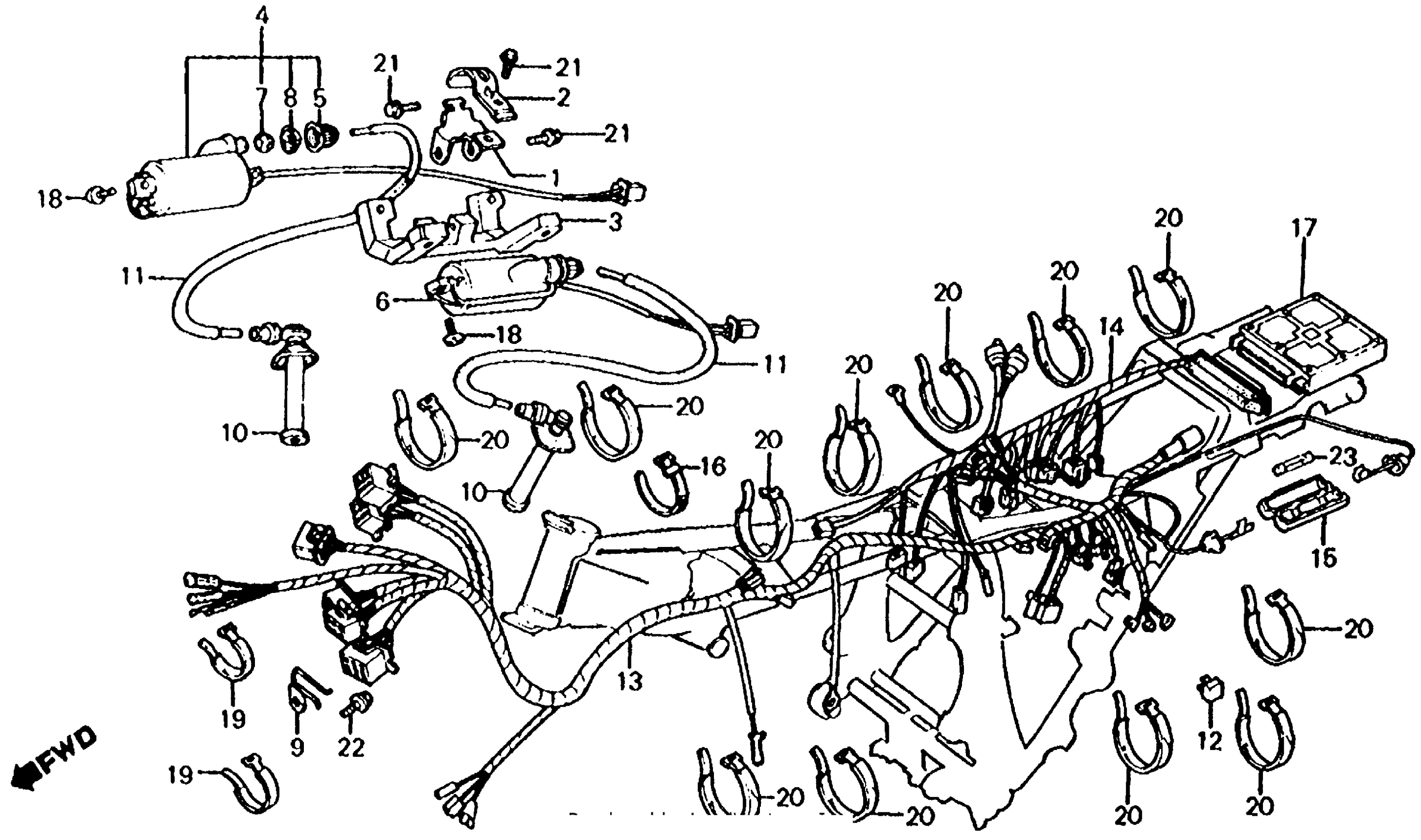

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

BRACKET, IGNITION COIL

30403-ME7-000

Unavailable

2

BRACKET B, IGNITION COIL

30404-ME7-000

Unavailable

3

STAY, IGNITION COIL

30405-ME7-000

Unavailable

4

COIL ASSY., R. IGNITION (NOT AVAILABLE)

30501-ME7-000

Unavailable

5

CAP, SCREW

30501-428-003

Unavailable

6

COIL ASSY., L. IGNITION (NOT AVAILABLE)

30502-ME7-000

Unavailable

7

SEAL, RUBBER

30502-428-003

Unavailable

8

WASHER, CAP

30503-428-003

Unavailable

9

GUIDE, RESISTOR CABLE

30515-ME7-000

Unavailable

10

CAP ASSY., PLUG (NOT AVAILABLE)

30700-MC7-000

Unavailable

11

WIRE, IGNITION

30750-MA0-P00

Unavailable

11

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

11

WIRE, IGNITION This part replaces 30751-MC7-000.

30750-MA0-P00

Unavailable

12

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$26.68

12

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$26.68

13

WIRE HARNESS

32100-ME7-000

Unavailable

14

SUB-WIRE HARNESS

32101-ME7-000

Unavailable

15

CASE, FUSE (10A)

32126-463-770

$9.57

16

BAND B1, WIRE

32161-404-610

$2.13

17

CONTROL UNIT ASSY. (RMD) (NOT AVAILABLE) This part replaces 38770-ME7-000.

38770-ME7-003

Unavailable

17

CONTROL UNIT ASSY. (RMD) (NOT AVAILABLE)

38770-ME7-003

Unavailable

18

SCREW, PAN (5X22)

93500-05022-0H

Unavailable

19

BAND B1, WIRE

32161-404-000

$2.13

19

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.13

20

BAND A2, CABLE

95014-61200

Unavailable

21

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.14

21

BOLT, FLANGE (6X10)

95701-06010-00

$1.14

22

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

Unavailable

22

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

23

FUSE B (10A)

98200-21000

$0.86
