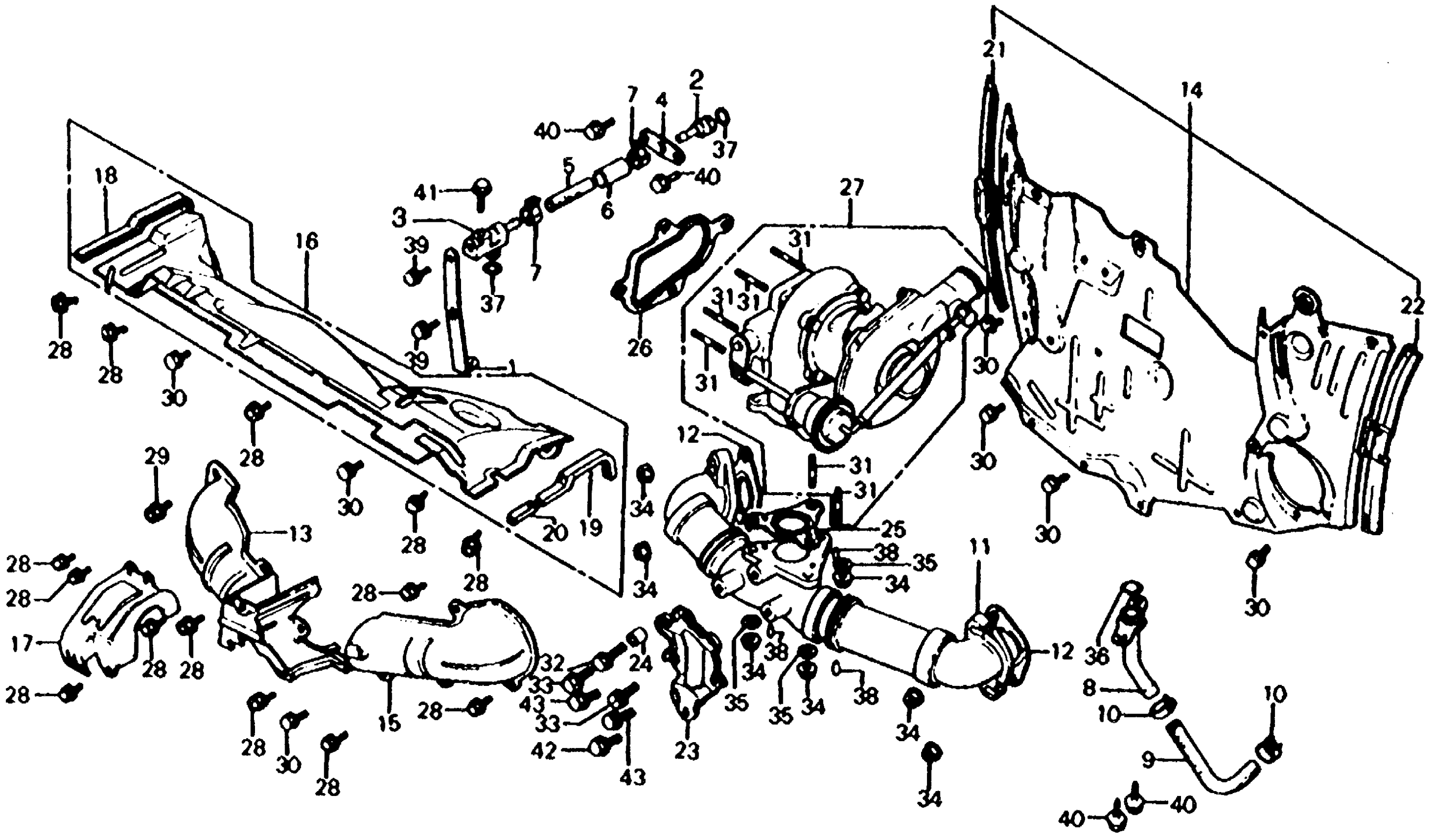

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 TURBO PUMP Diagram

#

Description
Price

1

PLATE, SAFETY TURBOCHARGER

15529-ME7-000

Unavailable

2

HOLDER A, TURBOCHARGER OIL HOSE (NOT AVAILABLE)

15531-ME7-000

Unavailable

3

HOLDER B, TURBOCHARGER OIL HOSE (NOT AVAILABLE)

15533-ME7-000

Unavailable

4

PLATE, SET (NOT AVAILABLE)

15534-MC7-000

Unavailable

5

HOSE, TURBOCHARGER OIL (NOT AVAILABLE)

15538-MC7-000

Unavailable

6

PROTECTOR, TURBOCHARGER OIL HOSE (NOT AVAILABLE)

15539-MC7-000

Unavailable

7

CLAMP D, TUBE (8.0) (NOT AVAILABLE)

15541-ME7-000

Unavailable

8

JOINT A, OIL RETURN (NOT AVAILABLE)

15570-MC7-000

Unavailable

9

HOSE, OIL RETURN (NOT AVAILABLE)

15573-MC7-000

Unavailable

10

CLAMP, OIL RETURN TUBE (NOT AVAILABLE)

15576-MC7-000

Unavailable

11

MANIFOLD, EX.

18100-ME7-000

Unavailable

12

GASKET, EX. MANIFOLD

18139-ME7-000

Unavailable

13

COVER, FR. EX. MANIFOLD

18141-ME7-000

Unavailable

14

COVER, RR. EX. MANIFOLD

18142-ME7-000

Unavailable

15

COVER, L. FR. EX. MANIFOLD

18143-ME7-000

Unavailable

16

COVER, ENGINE (UPPER) (NOT AVAILABLE)

18144-ME7-000

Unavailable

17

COVER, TURBOCHARGER

18145-ME7-000

Unavailable

18

RUBBER A, EX. MANIFOLD COVER SEAL (NOT AVAILABLE)

18146-MC7-300

Unavailable

19

RUBBER B, EX. MANIFOLD COVER SEAL (NOT AVAILABLE)

18147-MC7-300

Unavailable

20

RUBBER C, EX. MANIFOLD COVER SEAL (NOT AVAILABLE)

18148-MC7-300

Unavailable

21

RUBBER, R. SIDE SEAL (NOT AVAILABLE)

18149-ME7-300

Unavailable

22

RUBBER, L. SIDE SEAL (NOT AVAILABLE)

18150-ME7-300

Unavailable

23

PLATE, SETTING (NOT AVAILABLE)

18151-ME7-000

Unavailable

24

COLLAR, SETTING PLATE (NOT AVAILABLE)

18155-MC7-000

Unavailable

25

GASKET, TURBOCHARGER (NOT AVAILABLE)

18191-ME7-000

Unavailable

26

GASKET, EX. PIPE JOINT (NOT AVAILABLE)

18192-ME7-000

Unavailable

27

PUMP ASSY., TURBO (NOT AVAILABLE) This part replaces 18200-ME7-003.

18200-ME7-305

Unavailable

27

PUMP ASSY., TURBO (NOT AVAILABLE)

18200-ME7-305

Unavailable

28

BOLT, FLANGE (5X7) (NOT AVAILABLE)

90001-MC7-000

Unavailable

29

BOLT, FLANGE (5X8)

90002-MC7-000

$1.77

30

BOLT, SPECIAL (8MM)

90004-MC7-000

Unavailable

31

BOLT, STUD (8X32)

90061-MC7-300

Unavailable

32

BOLT, SPECIAL (8X26) (NOT AVAILABLE)

90063-MC7-003

Unavailable

33

BOLT, SPECIAL (8X15) (NOT AVAILABLE)

90064-MC7-003

Unavailable

34

NUT, SPECIAL (8MM)

90217-657-000

$5.08

35

WASHER, SPRING (8MM) (NOT AVAILABLE)

90406-MC7-003

Unavailable

36

O-RING (15.8X2.5) (ARAI)

91301-MC7-003

$4.52

36

O-RING (15.8X2.5) (ARAI) This part replaces 91301-MC7-004.

91301-MC7-003

$4.52

37

O-RING B (6.8X2.5) (ARAI)

91304-MC7-003

$2.92

37

O-RING B (6.8X1.9)

91304-MC7-004

Unavailable

38

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

39

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

39

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

40

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

40

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

41

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

41

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

42

BOLT, FLANGE (8X18) This part replaces 95700-08018-00.

95701-08018-00

$1.80

42

BOLT, FLANGE (8X18)

95701-08018-00

$1.80

43

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

43

BOLT, FLANGE (8X45)

95701-08045-00

$1.49
