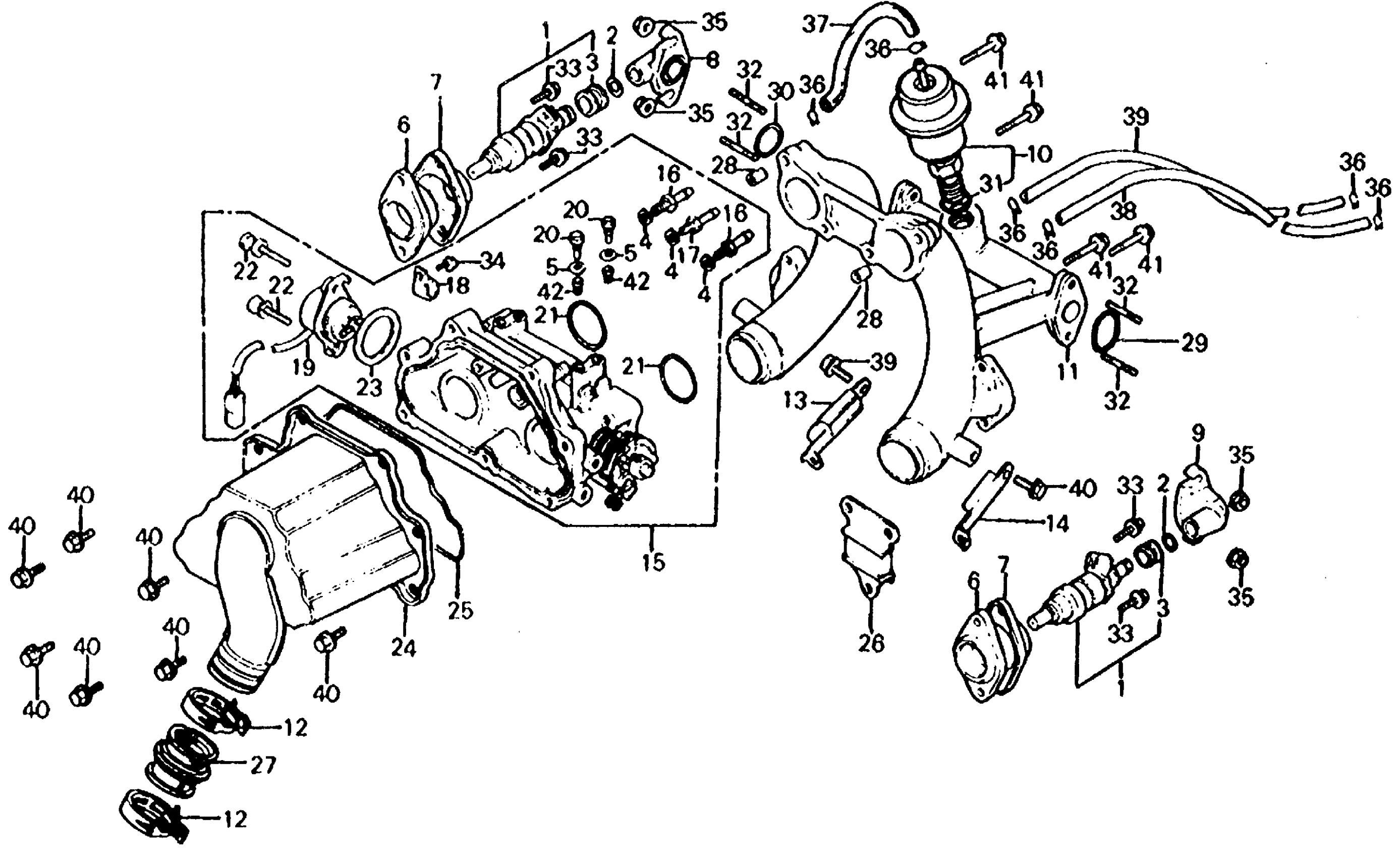

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 THROTTLE BODY + INTAKE MANIFOLD Diagram

#

Description
Price

1

INJECTOR ASSY., FUEL (NOT AVAILABLE)

16110-MC7-003

Unavailable

2

O-RING, INJECTOR (7.8X1.7) (NOT AVAILABLE)

16111-MC7-004

Unavailable

3

GROMMET (NOT AVAILABLE)

16112-MC7-003

Unavailable

4

WASHER (NOT AVAILABLE)

16170-300-004

Unavailable

5

WASHER, FIBER

16189-056-004

Unavailable

6

FLANGE, HOLDER (NOT AVAILABLE)

16220-MC7-003

Unavailable

7

COVER, HOLDER (NOT AVAILABLE)

16221-MC7-000

Unavailable

8

CAP, R. INJECTOR

16312-MC7-000

Unavailable

9

CAP, L. INJECTOR (NOT AVAILABLE)

16313-MC7-000

Unavailable

10

REGULATOR ASSY., FUEL PRESSURE

16850-ME7-003

Unavailable

11

MANIFOLD, IN.

17110-ME7-000

Unavailable

12

BAND, IN. MANIFOLD (NOT AVAILABLE)

17118-MC7-003

Unavailable

13

MOUNT, R. IN. SETTING (NOT AVAILABLE)

17123-ME7-000

Unavailable

14

MOUNT, L. IN. SETTING (NOT AVAILABLE)

17124-ME7-000

Unavailable

15

BODY, THROTTLE

17130-ME7-671

Unavailable

16

JOINT, PB SENSOR

17132-MC7-003

Unavailable

17

JOINT, SENSOR (P2) (NOT AVAILABLE)

17133-MC7-003

Unavailable

18

CLIP, THROTTLE SENSOR (NOT AVAILABLE)

17134-MC7-003

Unavailable

19

SENSOR, THROTTLE (NOT AVAILABLE)

17135-ME7-671

Unavailable

20

SCREW, PLUG

17145-MC7-003

Unavailable

21

O-RING (38.8X2.4) (NOT AVAILABLE)

17146-MC7-003

Unavailable

22

BOLT (6X16)

17147-MC7-003

Unavailable

23

GASKET, SENSOR This part replaces 17149-MC7-003.

17149-PH3-005

Unavailable

24

PRE CHAMBER

17150-ME7-000

Unavailable

25

O-RING, CHAMBER (NOT AVAILABLE)

17152-MC7-003

Unavailable

26

RUBBER, CHAMBER SETTING (NOT AVAILABLE)

17161-ME7-000

Unavailable

27

TUBE, RESONATOR CONNECTING

17171-ME7-000

Unavailable

28

PIN, DOWEL (8X10)

91103-429-000

$2.56

29

O-RING, SPECIAL (NOT AVAILABLE)

91256-MC7-003

Unavailable

29

O-RING, SPECIAL (NOT AVAILABLE) This part replaces 91256-MC7-004.

91256-MC7-003

Unavailable

30

O-RING (16.8X2.4)

91256-166-003

$2.39

31

O-RING (9.6X2.4) (NOT AVAILABLE)

91301-ME7-003

Unavailable

32

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

33

SCREW, PAN (5X18)

93500-05018-0A

$1.49

34

SCREW-WASHER (5X12)

93892-05012-08

$1.49

35

NUT, FLANGE (6MM)

94050-06080

$1.49

36

CLIP, TUBE (B7)

95002-02070

$1.80

37

BULK HOSE, VACUUM (3.5X1000) (3.5X85)

95005-35001-20M

$9.67

38

BULK HOSE, VACUUM (3.5X8000) (3.5X400)

95005-35008-10M

$105.82

39

BULK HOSE, VACUUM (3.5X8000) (3.5X470)

95005-35008-10M

$105.82

40

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

40

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

41

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

41

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

42

JET,MAIN #70 This part replaces 99101-116-0700.

99101-KFV-0700

Unavailable

42

JET,MAIN #70 This part replaces 99102-GHB-0700.

99101-KFV-0700

Unavailable
