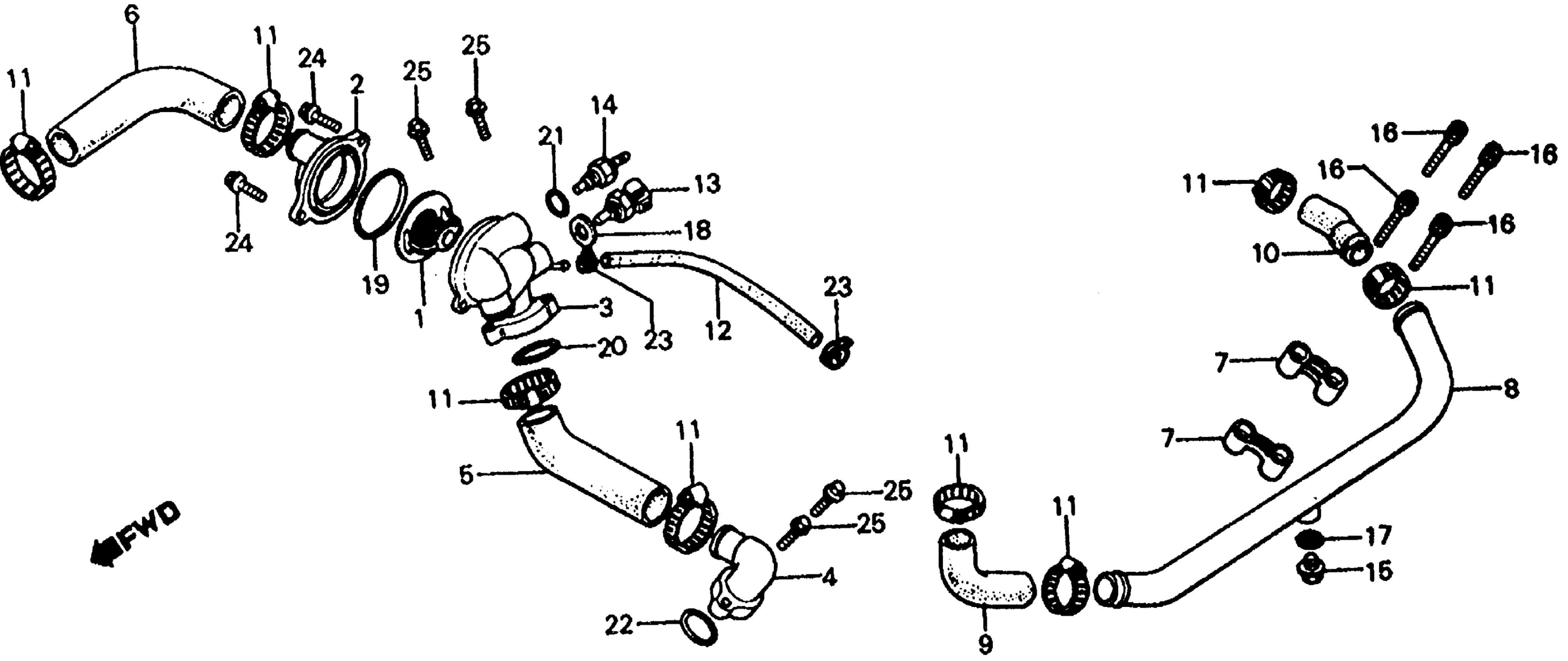

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 THERMOSTAT + WATER PIPE Diagram

#

Description
Price

1

THERMOSTAT (82) This part replaces 19300-679-003.

19320-679-F00

Unavailable

1

THERMOSTAT (82)

19320-679-F00

Unavailable

1

THERMOSTAT (82) This part replaces 19320-679-000.

19320-679-F00

Unavailable

2

COVER, THERMOSTAT (NOT AVAILABLE)

19315-MC7-000

Unavailable

3

CASE, THERMOSTAT (NOT AVAILABLE)

19411-MC7-000

Unavailable

4

JOINT, WATER

19421-MC7-000

Unavailable

5

HOSE A, WATER (NOT AVAILABLE)

19501-MC7-000

Unavailable

6

HOSE B, WATER (NOT AVAILABLE)

19502-MC7-000

Unavailable

7

CLAMP, WATER PIPE (NOT AVAILABLE)

19503-MC7-000

Unavailable

8

PIPE, RR. WATER (NOT AVAILABLE)

19504-MC7-000

Unavailable

9

HOSE C, WATER (NOT AVAILABLE)

19506-MC7-000

Unavailable

10

HOSE D, WATER

19507-ME7-000

Unavailable

11

BAND, WATER HOSE (NOT AVAILABLE)

19514-MC7-000

Unavailable

12

TUBE (5X290)

19521-MC7-000

Unavailable

13

SENSOR, ENGINE COOLANT TEMPERATURE

36151-MC7-003

Unavailable

14

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-611-154

Unavailable

15

BOLT, SEALING (12MM) (NOT AVAILABLE)

90017-MC7-000

Unavailable

16

BOLT, SPECIAL (5X22) (NOT AVAILABLE)

90089-415-000

Unavailable

17

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

17

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

18

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

19

O-RING (53.8X3.1)

91302-657-000

$5.01

20

O-RING, THERMOSTAT BODY (OVAL) (NOT AVAILABLE)

91303-MC7-003

Unavailable

20

O-RING, THERMOSTAT BODY (OVAL) (NOT AVAILABLE) This part replaces 91303-MC7-004.

91303-MC7-003

Unavailable

21

O-RING (13.5X1.4)

91307-PH7-660

$2.83

21

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

22

O-RING (23X2.8)

94608-50000

$1.49

23

CLAMP, TUBE (D10)

95002-41000-08

$2.41

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

25

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

25

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
