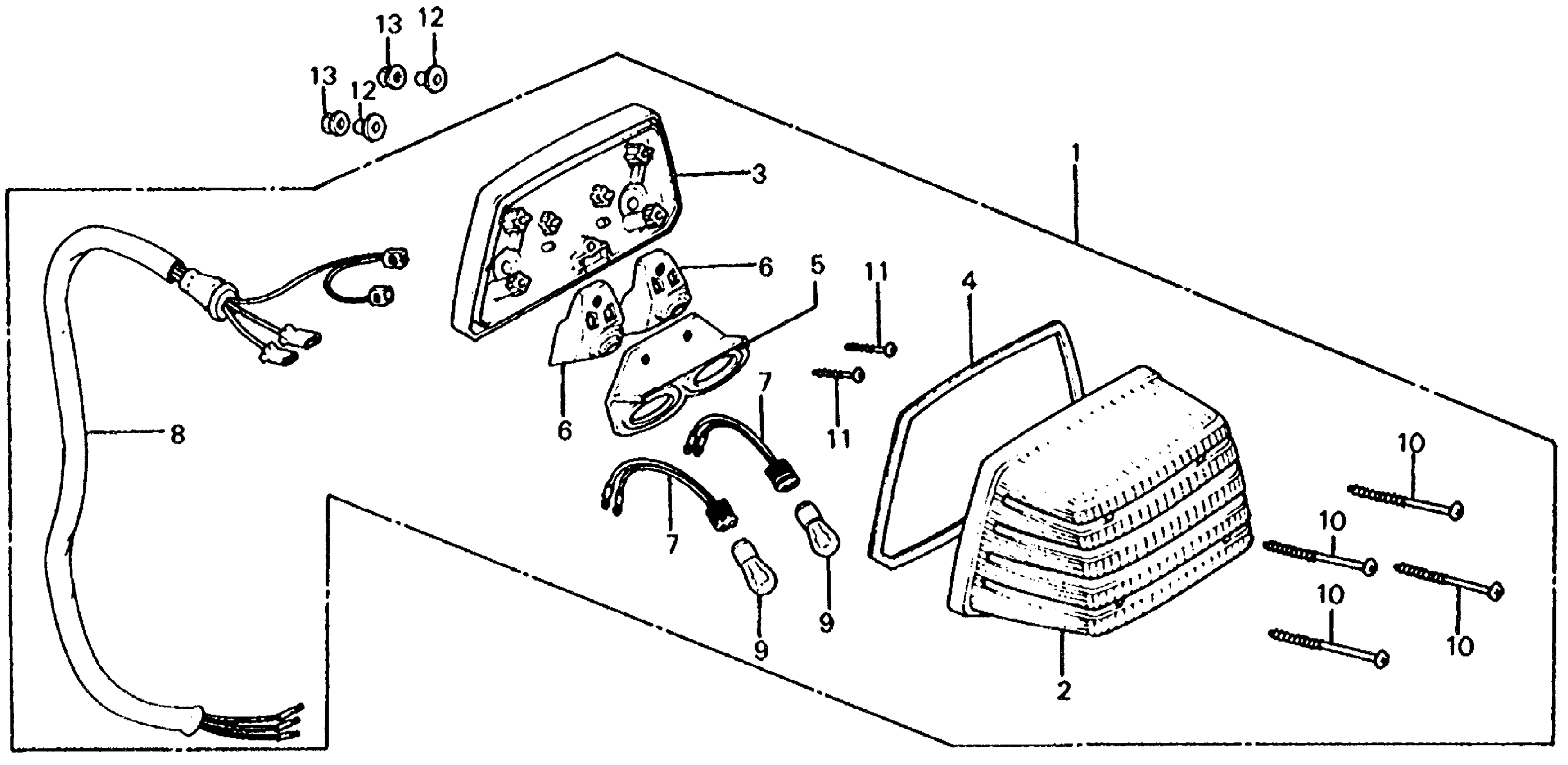

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT

33701-ME7-670

Unavailable

2

LENS, TAILLIGHT (NOT AVAILABLE)

33702-MC7-671

Unavailable

3

BASE, TAILLIGHT

33703-MC7-611

Unavailable

4

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33704-MC7-671

Unavailable

5

STAY (NOT AVAILABLE)

33705-MC7-671

Unavailable

6

SOCKET (NOT AVAILABLE)

33706-MC7-611

Unavailable

7

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

7

WIRE, TAILLIGHT (STANLEY) This part replaces 33707-MC7-611.

33705-147-671

Unavailable

8

SUB-CABLE

33708-ME7-670

Unavailable

9

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

10

SCREW, TAPPING (4X40)

90105-GAM-000

$4.92

10

SCREW, TAPPING (4X40) This part replaces 90105-KB4-003.

90105-GAM-000

$4.92

11

SCREW, TAPPING (4X16) (NOT AVAILABLE)

90106-MC7-003

Unavailable

12

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

13

NUT, FLANGE (6MM)

94050-06080

$1.49
