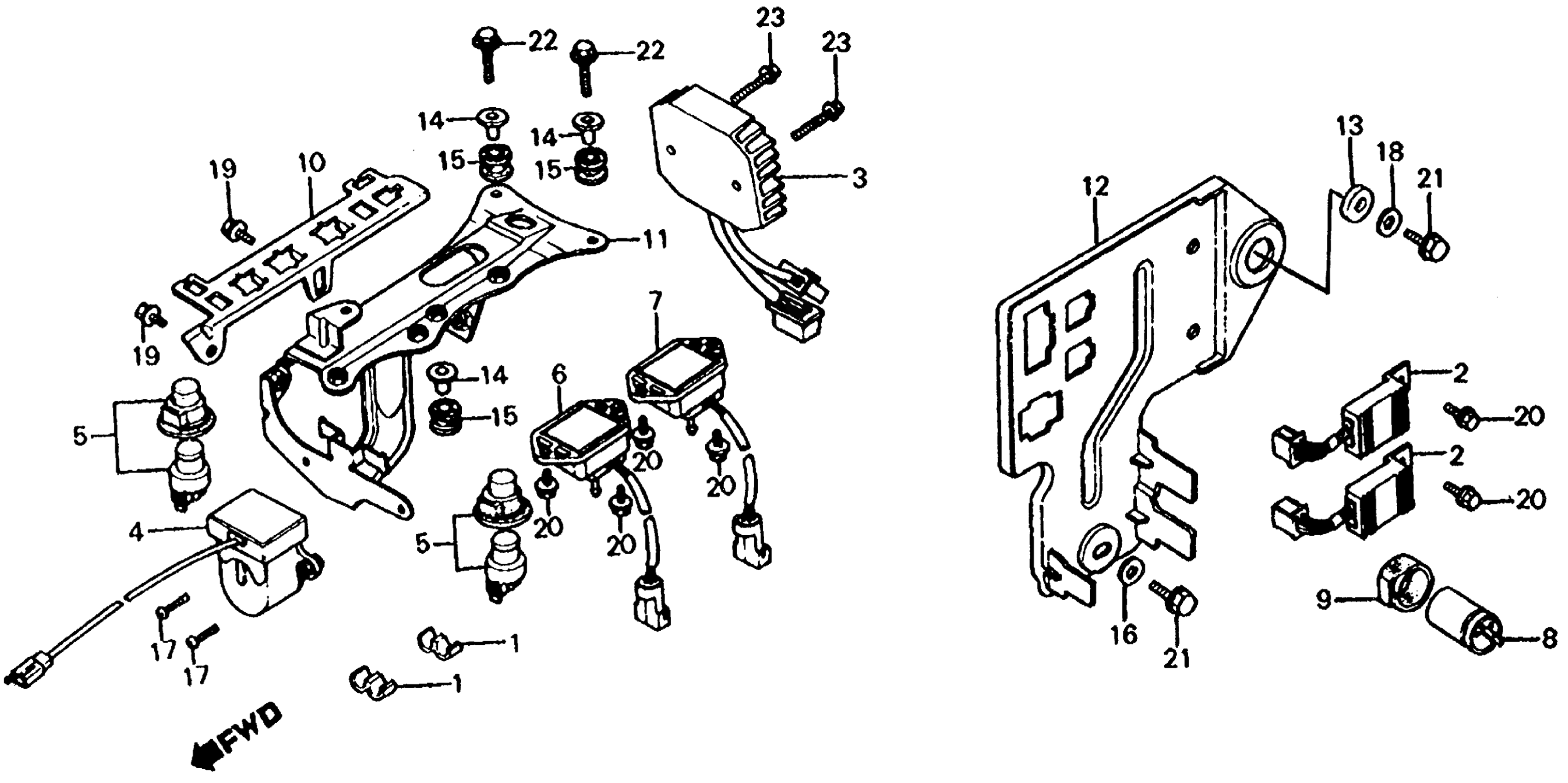

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 SPARK UNIT + SENSOR Diagram

#

Description
Price

1

CLIP, SENSOR TUBE

16961-ME7-000

Unavailable

2

UNIT ASSY., SPARK

30400-ME7-155

Unavailable

3

RECTIFIER ASSY. (NOT AVAILABLE)

31600-MC7-008

Unavailable

4

SENSOR ASSY., ENGINE STOP SWITCH (NOT AVAILABLE)

35160-MC7-003

Unavailable

5

RELAY, MAIN

36130-MC7-003

Unavailable

6

SENSOR 2, PRESSURE (NOT AVAILABLE)

36171-MC7-003

Unavailable

7

SENSOR, PRESSURE BOOST

36181-MC7-003

Unavailable

7

SENSOR, PRESSURE BOOST This part replaces 36181-ME7-003.

36181-MC7-003

Unavailable

8

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

8

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

8

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

8

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

9

SUSPENSION, TURN SIGNAL RELAY

38306-KB4-010

Unavailable

9

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-438-000.

38306-KB4-010

Unavailable

10

STAY, CONNECTOR

50326-ME7-000

Unavailable

11

STAY, ELECTRIC

50327-ME7-000

Unavailable

12

PLATE, ELECTRIC (NOT AVAILABLE)

50340-MA1-000

Unavailable

13

COLLAR, ELECTRIC PLATE (NOT AVAILABLE)

50341-MC5-000

Unavailable

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

14

COLLAR, RR. FENDER

61105-428-000

Unavailable

15

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

16

COLLAR, FR. FENDER SETTING

61107-KB5-000

$3.47

16

COLLAR, FR. FENDER SETTING This part replaces 90121-102-000.

61107-KB5-000

$3.47

17

SCREW, PAN (4X18)

93500-04018-0A

$1.49

18

WASHER, PLAIN (6MM)

94103-06000

$1.49

19

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

19

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

23

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

23

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
