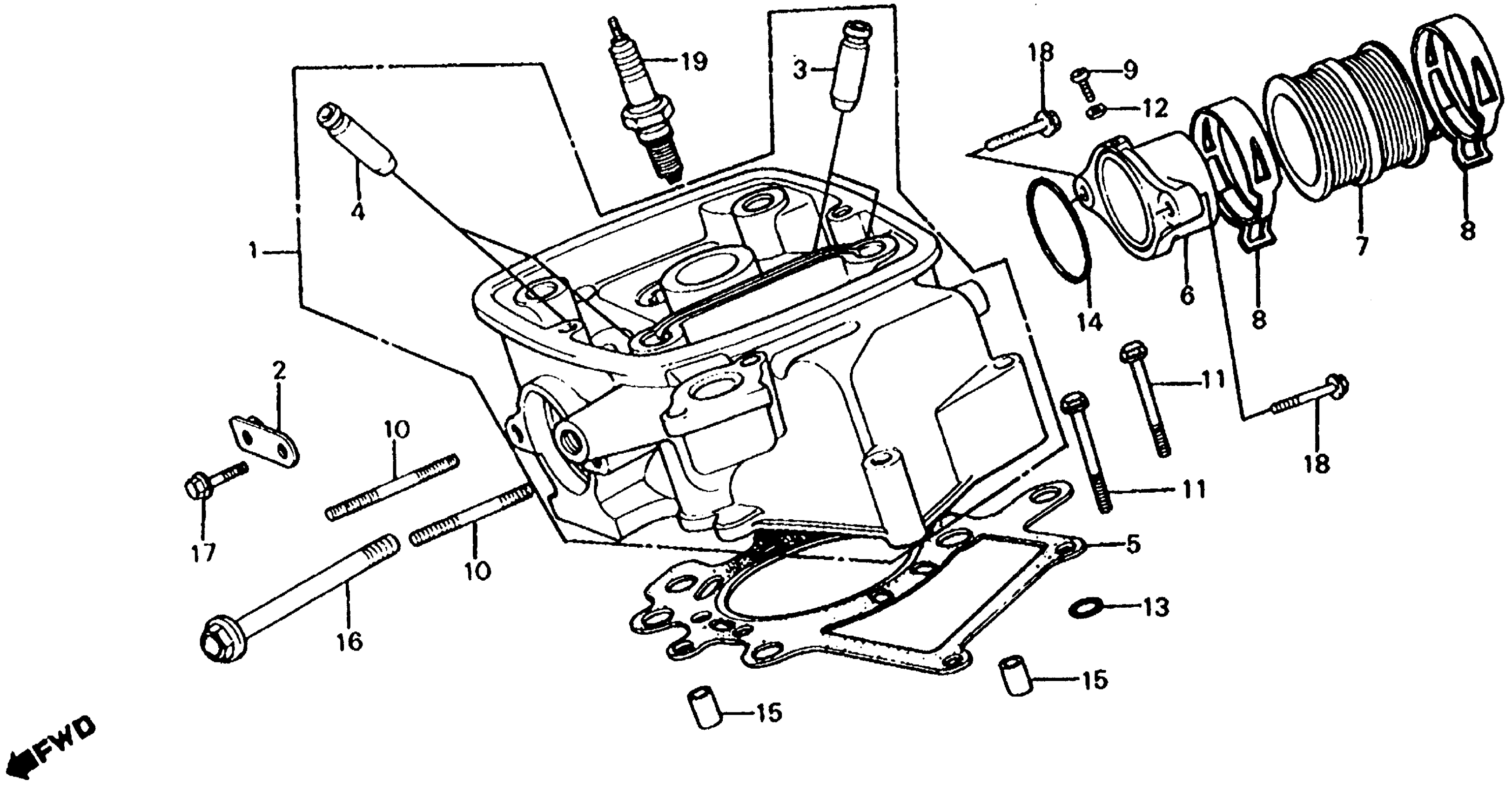

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 RIGHT CYLINDER HEAD Diagram

CYLINDER HEAD, R.

12200-ME7-000

Unavailable

PLATE A

12213-ME7-000

Unavailable

GUIDE, IN VALVE This part replaces 12231-MC7-305.

12233-MG8-405

Unavailable

GUIDE, IN VALVE

12233-MG8-405

Unavailable

GUIDE, IN VALVE

12233-MG8-405

Unavailable

GUIDE, IN VALVE This part replaces 12241-MA1-305.

12233-MG8-405

Unavailable

GASKET, CYLINDER HEAD This part replaces 12251-ME2-000.

12251-ME2-405

Unavailable

GASKET, CYLINDER HEAD

12251-ME2-405

Unavailable

JOINT, R. IN. (NOT AVAILABLE)

17113-MC7-000

Unavailable

INSULATOR, IN. (NOT AVAILABLE)

17115-ME7-000

Unavailable

BAND, IN. MANIFOLD (NOT AVAILABLE)

17118-MC7-003

Unavailable

BOLT, FLANGE (5X8)

90002-MC7-000

$1.77

BOLT, STUD (8X43) (NOT AVAILABLE)

90062-MC7-000

Unavailable

BOLT, FLANGE (8X40) (NOT AVAILABLE)

90068-ME7-000

Unavailable

WASHER, SEALING (5MM)

90452-323-000

$1.59

O-RING (6.9X1.5)

91302-044-013

Unavailable

O-RING (40X2.4)

91325-413-830

$8.72

O-RING (40X2.4) This part replaces 91325-567-005.

91325-413-830

$8.72

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (10X50) This part replaces 95700-10050-00.

95701-10050-00

$2.59

BOLT, FLANGE (10X50)

95701-10050-00

$2.59

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

SPARK PLUG (DPR7EV-9) (NGK) | (Optional).

98069-57912

$2.62

SPARK PLUG (DPR7EV-9) (NGK) | (Optional). This part replaces 98069-57922.

98069-57912

$2.62

SPARK PLUG (DPR8EA-9) (NGK) This part replaces 98069-58912.

98069-58916

$2.62

SPARK PLUG (DPR8EA-9) (NGK) This part replaces 98069-58922.

98069-58916

$2.62

SPARK PLUG (DPR9EV-9) (NGK) | (Optional).

98069-59912

Unavailable

SPARK PLUG (DPR9EV-9) (NGK) | (Optional). This part replaces 98069-59922.

98069-59912

Unavailable
