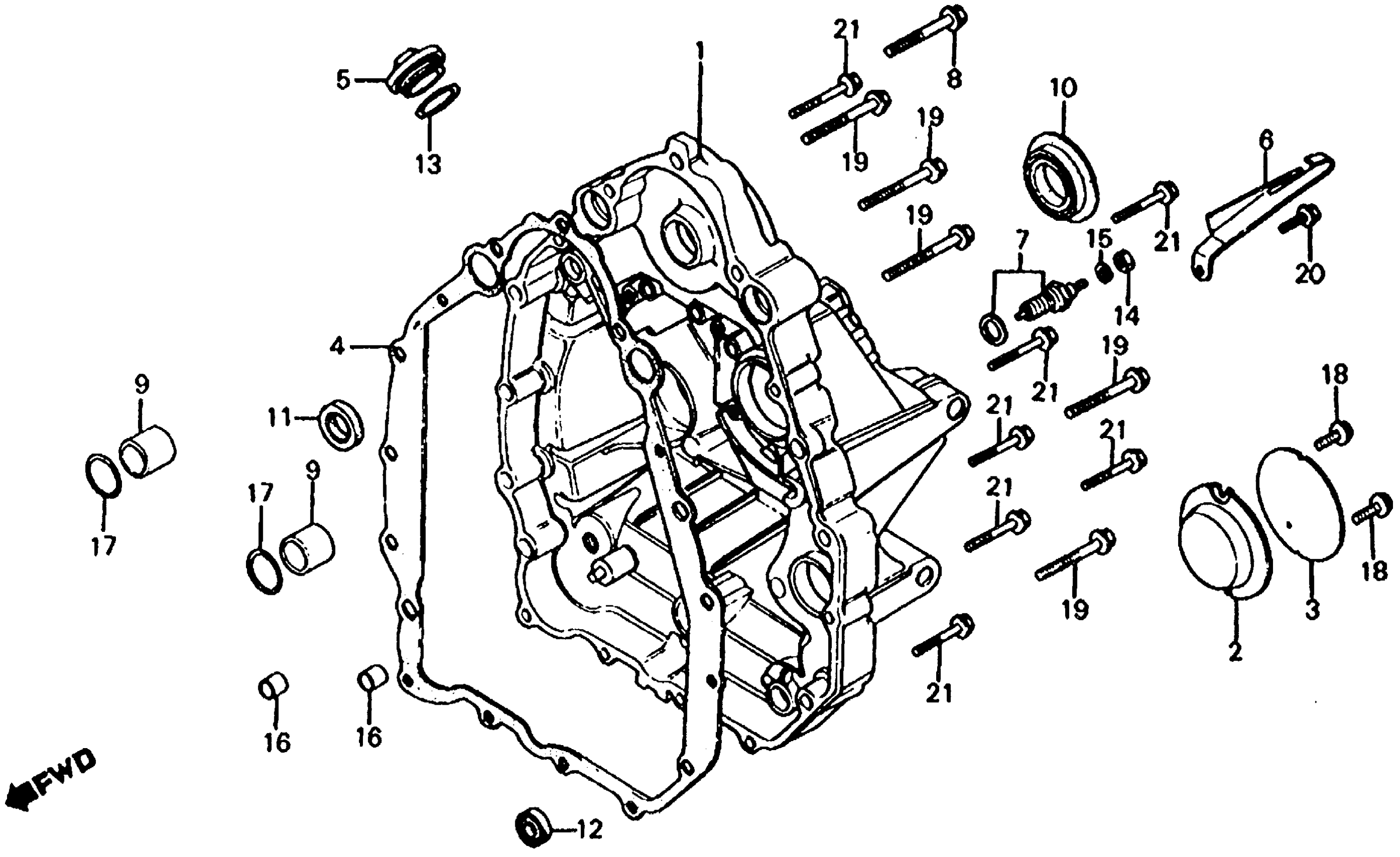

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 REAR COVER Diagram

#

Description
Price

1

COVER, RR.

11310-ME7-000

Unavailable

2

PLATE, BREATHER

11311-ME7-000

Unavailable

3

PLATE (NOT AVAILABLE)

11313-ME7-000

Unavailable

4

GASKET, RR. COVER

11394-449-306

Unavailable

4

GASKET, RR. COVER This part replaces 11394-449-701.

11394-449-306

Unavailable

5

CAP, VALVE ADJ.

12361-300-000

Unavailable

6

GUIDE, NEUTRAL CABLE

31140-415-000

Unavailable

7

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-413-003.

35600-413-023

$18.69

7

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-413-013.

35600-413-023

$18.69

7

SWITCH ASSY., NEUTRAL (TOYO)

35600-413-023

$18.69

8

BOLT, FLANGE (8X68)

90066-MC7-000

$3.68

9

COLLAR (22.2MM) (NOT AVAILABLE)

90701-415-000

Unavailable

10

OIL SEAL (22X36X7)

91202-MC7-000

Unavailable

11

OIL SEAL (18X28X6)

91202-283-013

$11.40

12

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.22

12

OIL SEAL (16X28X7) (ARAI)

91204-259-003

$5.22

13

O-RING (30.8MM)

91302-001-020

$3.41

14

NUT, HEX. (4MM)

94001-04000-0S

$0.94

15

WASHER, SPRING (4MM)

94111-04800

$0.90

16

PIN, DOWEL (10X16)

94301-10160

$2.24

17

O-RING (23X2.8)

94608-50000

$0.94

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

19

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.14

19

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

20

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.64

20

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

21

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.28

21

BOLT, FLANGE (6X32)

96001-06032-00

$1.28
