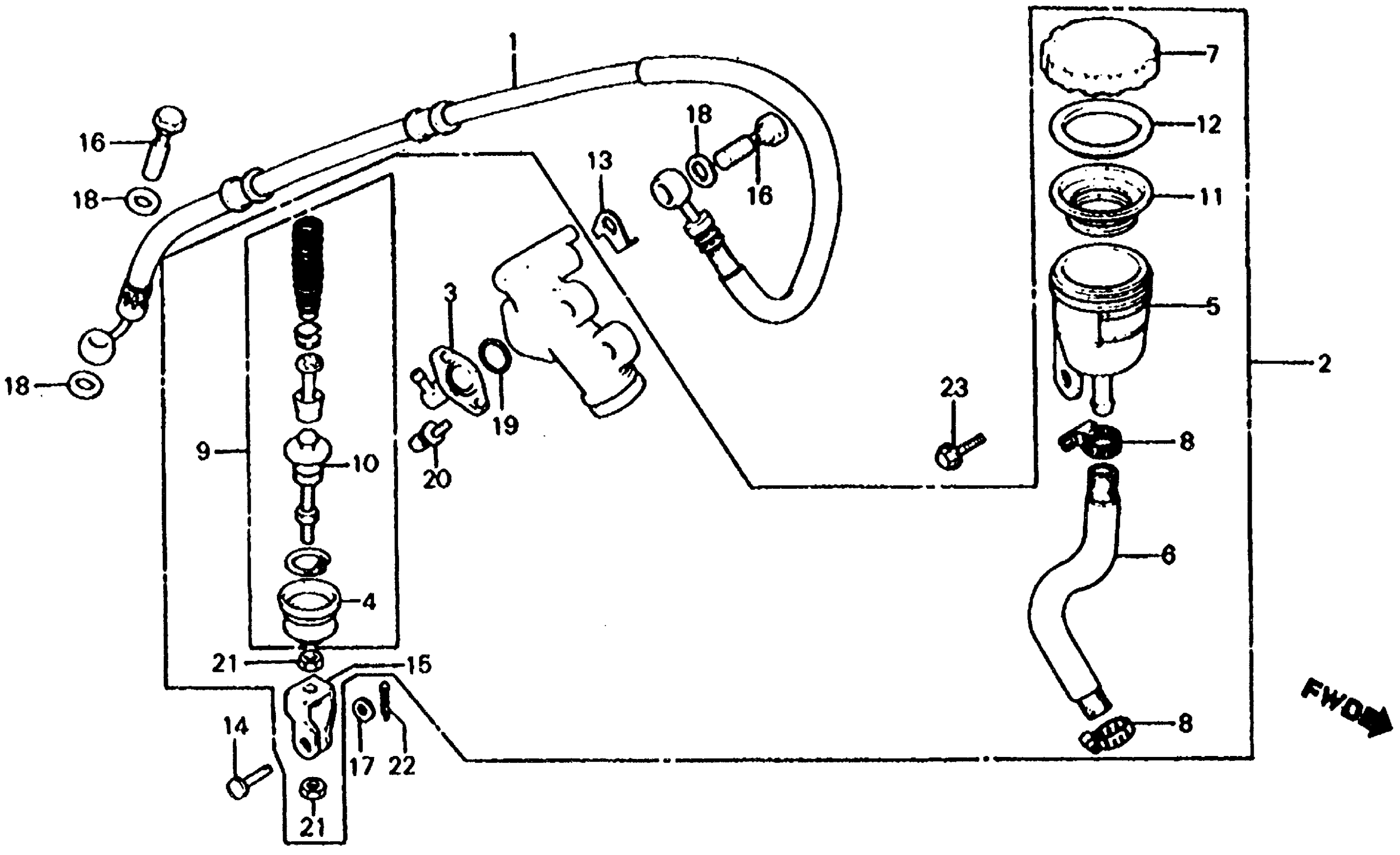

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE This part replaces 43310-ME7-003.

43310-ME7-013

Unavailable

2

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE) This part replaces 43500-MC7-006.

43500-MC7-016

Unavailable

2

MASTER CYLINDER ASSY., RR. (NOT AVAILABLE)

43500-MC7-016

Unavailable

3

CONNECTOR, MASTER CYLINDER

43503-422-006

Unavailable

4

BOOT, MASTER CYLINDER

43504-371-013

$9.54

5

CUP, MASTER CYLINDER OIL

43511-443-761

Unavailable

6

HOSE, MASTER CYLINDER (NOT AVAILABLE) This part replaces 43512-MC7-611.

43512-MC7-612

Unavailable

6

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-MC7-612

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

9

MASTER CYLINDER SET

43520-461-771

Unavailable

10

ROD, PUSH (NOT AVAILABLE)

43530-MC7-006

Unavailable

11

DIAPHRAGM

45520-300-000

$9.05

12

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

12

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

13

STOPPER, OIL BOLT (NOT AVAILABLE)

45535-MC7-000

Unavailable

14

PIN, BRAKE ROD

46503-371-000

Unavailable

15

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-445-771

Unavailable

16

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

16

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

16

BOLT, OIL (10X22)

90145-KM3-751

$11.02

16

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

16

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

17

WASHER (7X12)

90501-310-000

$1.74

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

O-RING (14.8X2.4)

91212-422-006

$2.56

20

SCREW-WASHER (4X12)

93893-04012-08

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

22

PIN, COTTER (1.6X25)

94201-16250

$1.49

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
