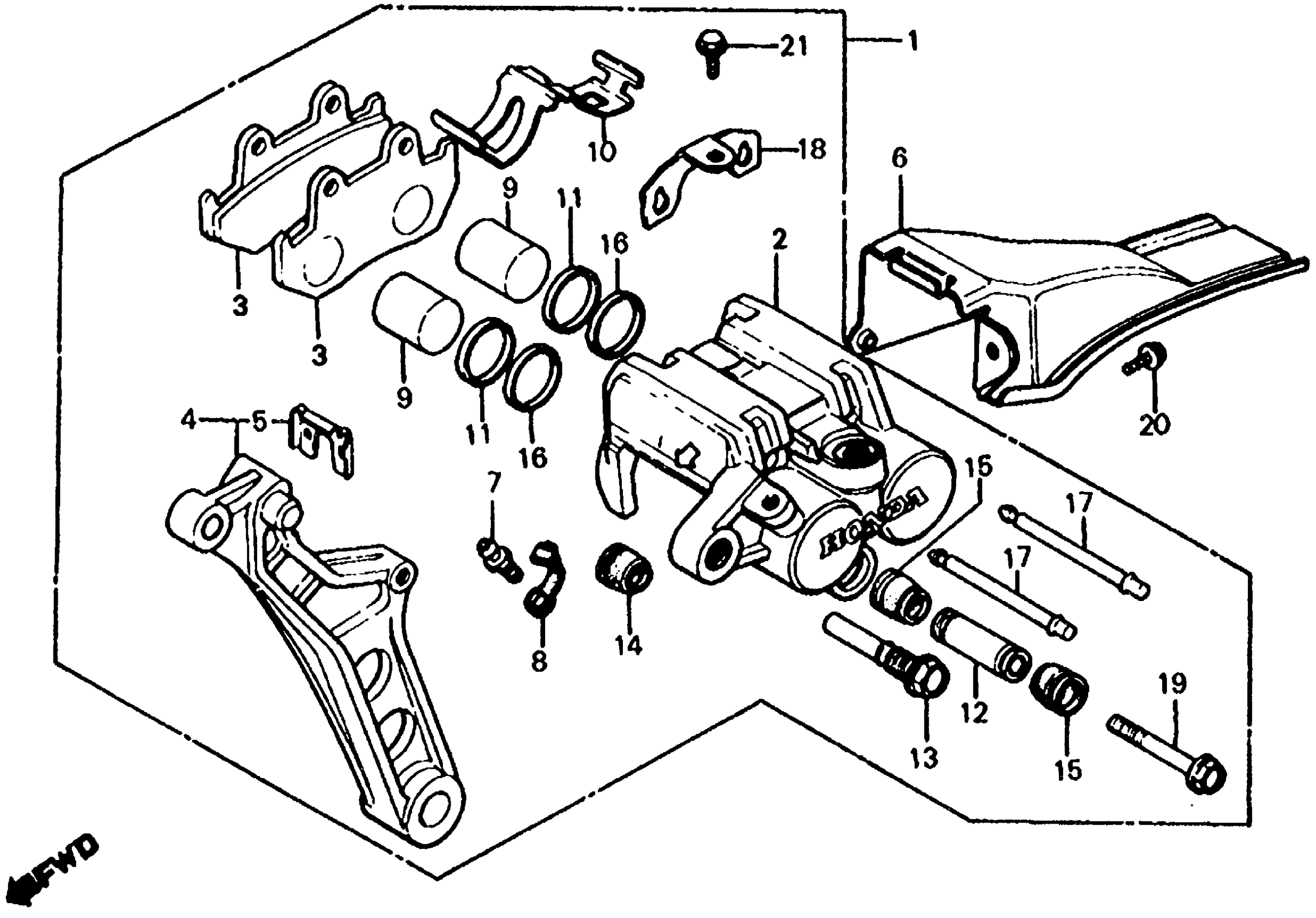

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY., RR. (NOT AVAILABLE) This part replaces 43100-MC7-007.

43100-MC7-016

Unavailable

1

CALIPER ASSY., RR. (NOT AVAILABLE)

43100-MC7-016

Unavailable

2

CALIPER, RR. (NOT AVAILABLE)

43101-MB9-006

Unavailable

3

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MC7-007.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MC7-014.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MJ6-004.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MJ6-014.

06435-MC7-405

Unavailable

4

BRACKET, RR. BRAKE (NOT AVAILABLE)

43110-MC7-006

Unavailable

5

RETAINER, RR. BRACKET

43112-445-631

Unavailable

6

COVER, RR. DISK (NOT AVAILABLE)

43140-MB9-000

Unavailable

7

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

8

CAP, BLEEDER

43353-461-771

$5.05

9

PISTON

45107-MA3-006

$50.26

10

SPRING, PAD

45108-MA3-006

$6.28

11

DUST SEAL

45109-166-006

$6.41

12

SLEEVE

45111-MA3-006

$13.38

13

BOLT, PIN

45131-MA3-006

$17.59

14

BOOT B

45133-MA3-006

$5.46

15

BOOT, PIN

45133-166-016

$3.85

16

SEAL, PISTON

45209-166-006

$8.64

17

PIN, HANGER

45215-MA3-006

$12.77

18

PLATE

45217-MA3-006

$4.45

19

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

20

SCREW-WASHER (5X10)

93892-05010-07

$1.49

21

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

21

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
