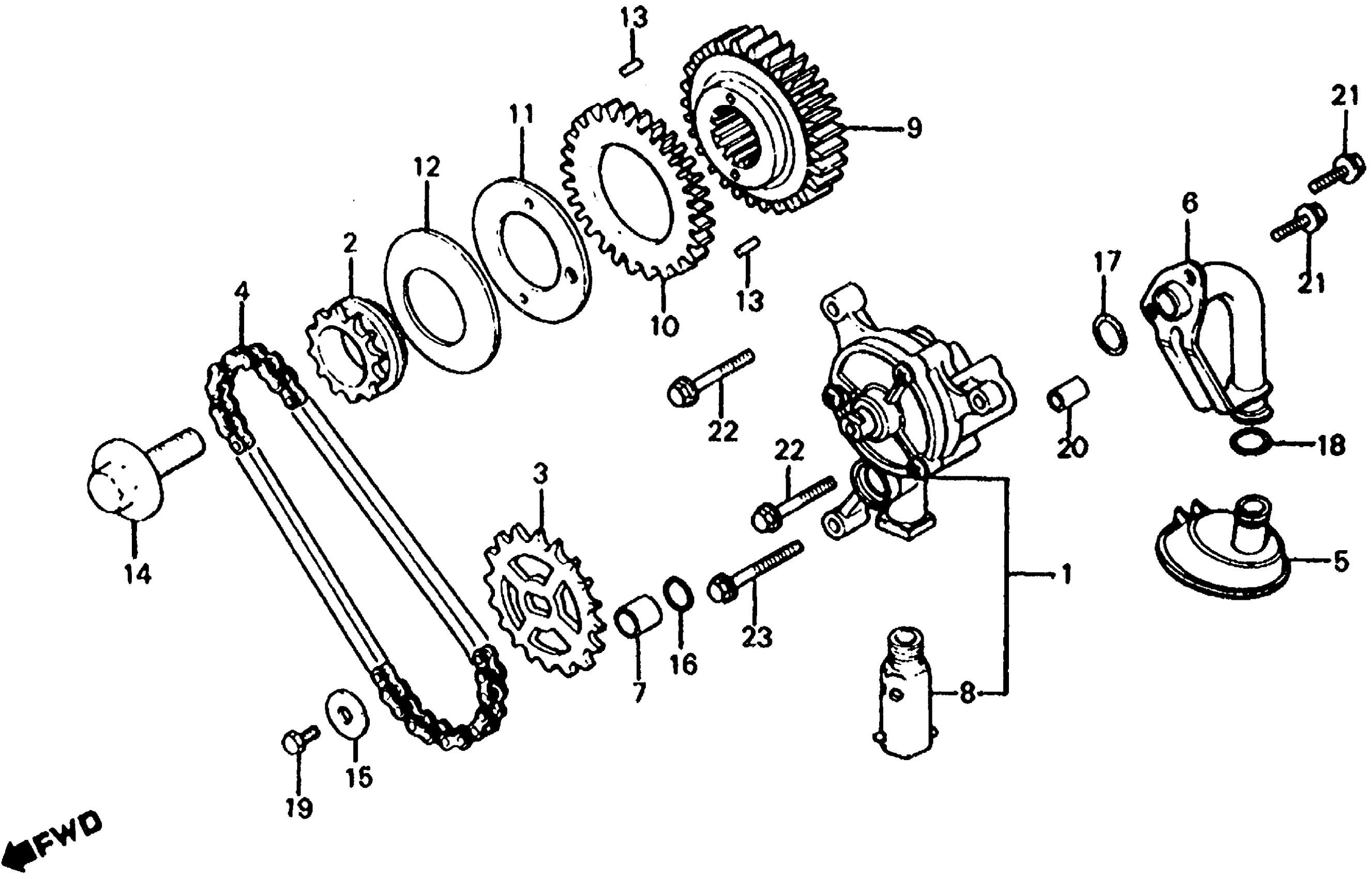

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 OIL PUMP + PRIMARY DRIVE GEAR Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MC7-000

Unavailable

2

SPROCKET, OIL PUMP DRIVE (NOT AVAILABLE)

15115-ME7-000

Unavailable

3

SPROCKET, OIL PUMP DRIVEN

15116-ME7-000

Unavailable

4

CHAIN, OIL PUMP (NOT AVAILABLE)

15140-MC7-000

Unavailable

5

BODY, OIL STRAINER

15141-ME7-000

Unavailable

6

PIPE, OIL STRAINER

15143-ME7-000

Unavailable

7

COLLAR, O-RING

15155-300-000

$3.47

8

VALVE ASSY., RELIEF (NOT AVAILABLE)

15220-415-000

Unavailable

9

GEAR, PRIMARY DRIVE (40T) (NOT AVAILABLE)

23121-ME7-000

Unavailable

10

SUB-GEAR, PRIMARY (39T) (NOT AVAILABLE)

23122-ME7-000

Unavailable

11

PLATE, SIDE

23123-415-000

Unavailable

12

SPRING, DISK

23125-ME7-305

Unavailable

13

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

14

BOLT, UBS (12X28) (NOT AVAILABLE)

90013-MC7-000

Unavailable

15

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

16

O-RING (13.6X2.4)

91301-268-020

$2.95

17

O-RING (15X2.5)

91302-377-000

$5.31

18

O-RING (15.3X3.5) (NOT AVAILABLE)

91363-MC7-004

Unavailable

19

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

20

PIN, DOWEL (8X14)

94301-08140

$2.25

21

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

23

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

23

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
