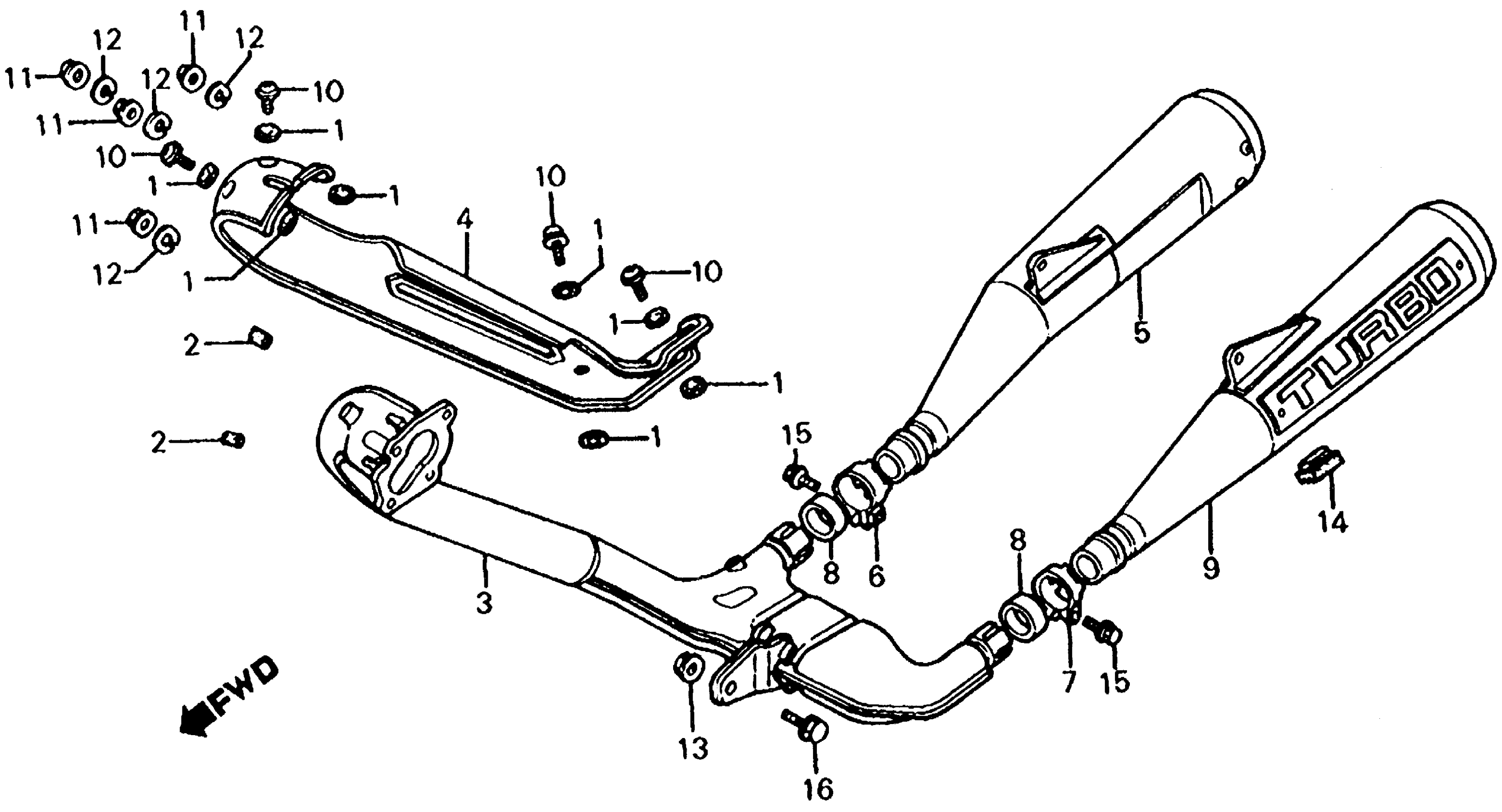

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 MUFFLER Diagram

#

Description
Price

1

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.81

1

GASKET, PROTECTOR

18292-MM9-740

$2.81

1

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.81

2

RUBBER, PROTECTOR GASKET

18293-147-000

$3.75

3

PIPE, EX.

18320-ME7-000

Unavailable

4

PROTECTOR, EX. PIPE (NOT AVAILABLE) | Use up to Frame SN DM000974 This part replaces 18325-ME7-000.

18325-ME7-010

Unavailable

4

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-ME7-010

Unavailable

5

MUFFLER SUB-ASSY., R. (NOT AVAILABLE) This part replaces 18335-ME7-000.

18335-ME7-007

Unavailable

5

MUFFLER SUB-ASSY., R. (NOT AVAILABLE)

18335-ME7-007

Unavailable

6

BAND, R. RR. MUFFLER This part replaces 18375-MC7-000.

18375-MG7-000

$27.00

6

BAND, R. RR. MUFFLER

18375-MG7-000

$27.00

7

BAND, L. RR. MUFFLER This part replaces 18376-MC7-000.

18376-MG7-000

$24.34

7

BAND, L. RR. MUFFLER

18376-MG7-000

$24.34

8

GASKET, MUFFLER

18392-MG7-750

$12.26

8

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$12.26

9

MUFFLER SUB-ASSY., L. (NOT AVAILABLE) This part replaces 18435-ME7-000.

18435-ME7-007

Unavailable

9

MUFFLER SUB-ASSY., L. (NOT AVAILABLE)

18435-ME7-007

Unavailable

10

SCREW-WASHER (6X12)

90136-MC7-000

$4.33

11

NUT, SPECIAL (8MM)

90217-657-000

$4.72

12

WASHER, SPRING (8MM) (NOT AVAILABLE)

90406-MC7-003

Unavailable

13

NUT, FLANGE (8MM)

94050-08080

$0.86

14

RUBBER D, STAND STOPPER

95011-64000

$3.10

15

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.14

15

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

16

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.01

16

BOLT, FLANGE (8X40)

95701-08040-08

$2.01
