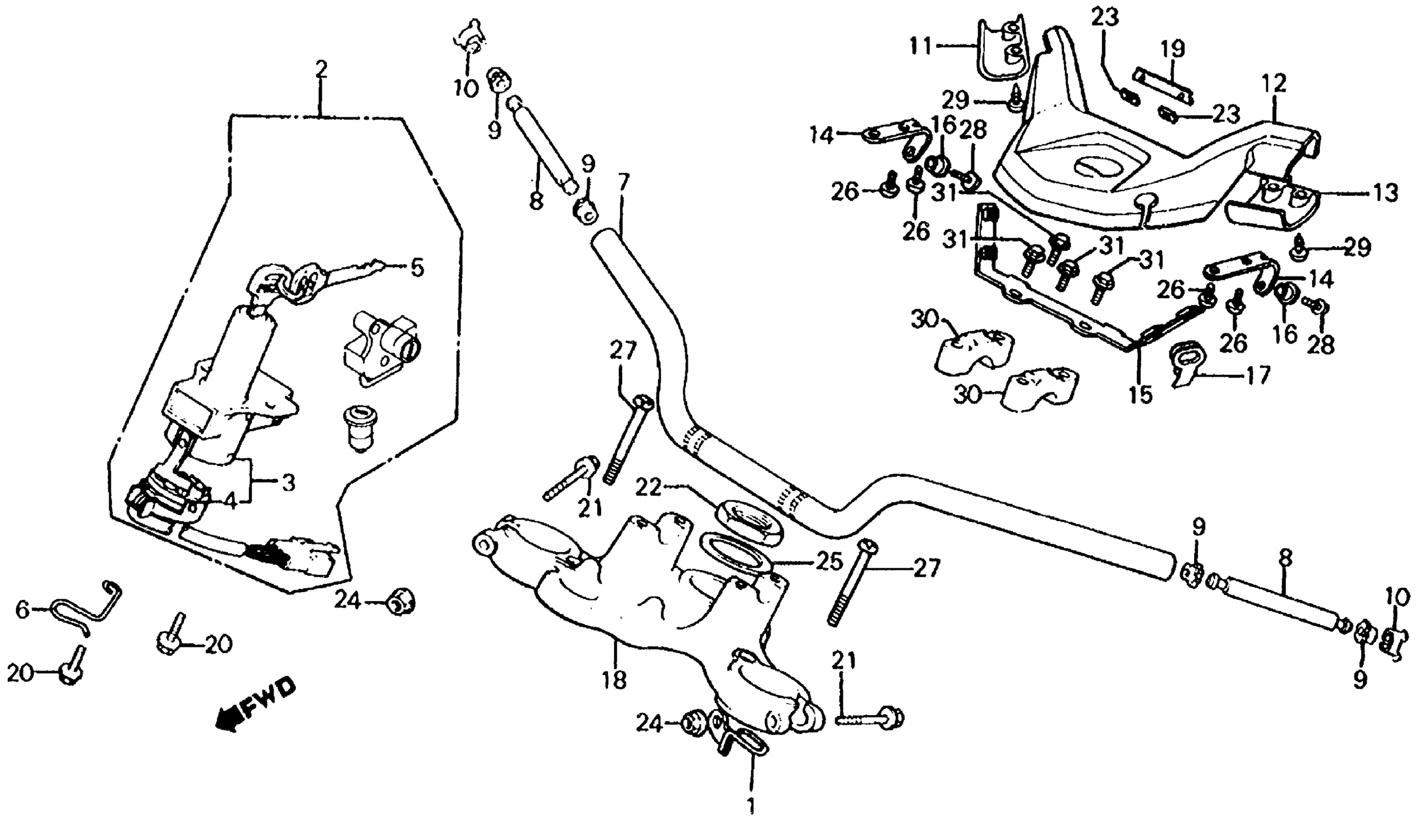

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 HANDLEBAR + TOP BRIDGE + KEY SET Diagram

#

Description
Price

1

CLIP, CHOKE CABLE (NOT AVAILABLE)

17951-ME7-000

Unavailable

2

LOCK SET (NOT AVAILABLE)

35010-ME7-000

Unavailable

3

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-MC7-601

Unavailable

4

BASE, CONTACT (NOT AVAILABLE)

35101-MC7-611

Unavailable

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MC7-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MG9-810.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MC7-811.

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MG9-810.

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MG9-820.

35122-KW3-771

$10.10

6

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

50733-MC7-000

Unavailable

7

HANDLEBAR (NOT AVAILABLE)

53100-ME7-670

Unavailable

8

WEIGHT, HANDLEBAR (NOT AVAILABLE)

53105-449-830

Unavailable

9

RUBBER, HANDLEBAR WEIGHT (NOT AVAILABLE)

53107-425-000

Unavailable

10

RING, HANDLE WEIGHT SNAP

53108-MK4-000

Unavailable

10

RING, HANDLE WEIGHT SNAP This part replaces 53108-415-004.

53108-MK4-000

Unavailable

11

COVER, R. HANDLEBAR LEVER (NOT AVAILABLE)

53204-ME7-670

Unavailable

12

COVER, HANDLEBAR (NOT AVAILABLE)

53205-ME7-670

Unavailable

13

COVER, L. HANDLEBAR LEVER (NOT AVAILABLE)

53206-ME7-670

Unavailable

14

BRACKET, HANDLEBAR COVER

53207-ME7-670

Unavailable

15

STAY, HANDLEBAR COVER

53208-ME7-670

Unavailable

16

COLLAR, HANDLEBAR COVER (NOT AVAILABLE)

53211-ME7-670

Unavailable

17

GROMMET, COVER (NOT AVAILABLE)

53212-ME7-670

Unavailable

18

BRIDGE, FORK TOP

53230-ME7-000

Unavailable

19

EMBLEM, HANDLEBAR COVER (NOT AVAILABLE)

87106-MC7-300

Unavailable

20

BOLT, COMBINATION SWITCH SETTING (NOT AVAILABLE)

90105-MC7-000

Unavailable

21

BOLT, FLANGE (7X54)

90155-369-000

$6.01

22

NUT, STEERING STEM

90304-425-000

$9.69

23

NUT, SPEED (3MM)

90315-504-000

$3.21

24

NUT, FLANGE (7MM)

90355-369-000

$4.94

25

WASHER, STEERING STEM

90503-425-000

$4.21

26

SCREW, PAN (6X12)

93500-06012-0A

$1.49

27

SCREW, FLAT (6X40)

93600-06040-0G

$1.49

28

SCREW, OVAL (6X16)

93700-06016-0G

Unavailable

29

SCREW-WASHER (4X12)

93893-04012-07

$1.49

30

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

31

BOLT, FLANGE (8X35) (NOT AVAILABLE)

95800-08035-00

Unavailable
