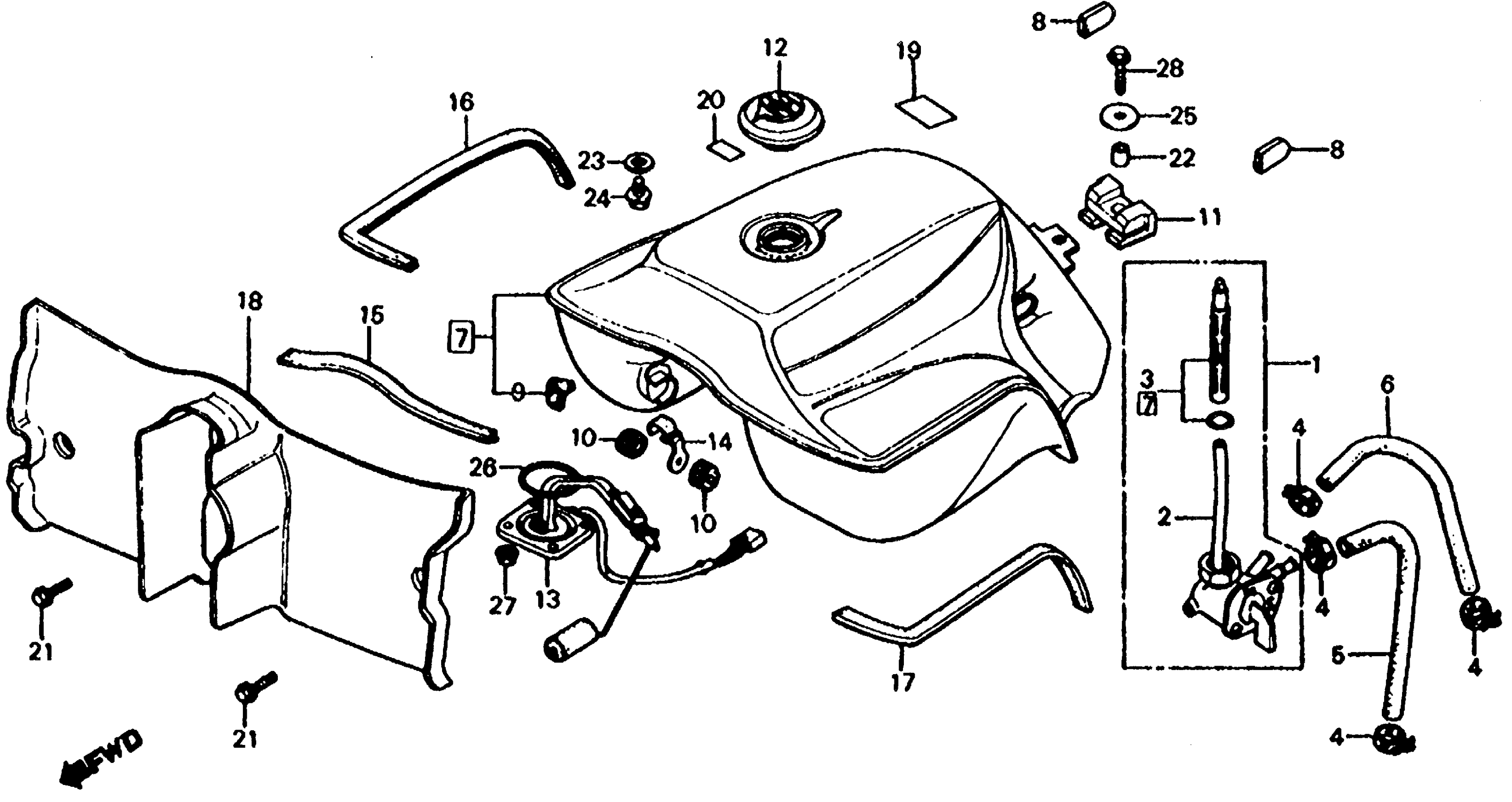

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-MC7-005

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE)

16951-MC7-005

Unavailable

3

SCREEN SET, FUEL STRAINER (NOT AVAILABLE)

16952-MC7-005

Unavailable

4

CLIP, FUEL HOSE (NOT AVAILABLE)

16969-MC7-000

Unavailable

5

HOSE A, FUEL (NOT AVAILABLE)

16970-MC7-000

Unavailable

6

HOSE C, FUEL (NOT AVAILABLE)

16971-MC7-000

Unavailable

7

TANK SET, FUEL *NH121PA* (PEARL SHELL WHITE-A) (NOT AVAILABLE)

175A1-ME7-010ZA

Unavailable

8

RUBBER, SEAT SETTING (NOT AVAILABLE)

17512-MC5-000

Unavailable

9

PLATE, RUBBER

17521-ME7-300

Unavailable

10

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

10

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

11

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-MC7-000

Unavailable

12

CAP, FUEL FILLER (NOT AVAILABLE)

17620-MC7-003

Unavailable

13

FUEL UNIT (NIPPON SEIKI) (NOT AVAILABLE)

37800-MC7-008

Unavailable

14

CLIP, THROTTLE CABLE (NOT AVAILABLE)

50732-MC7-000

Unavailable

15

SEAL RUBBER, FR. FUEL TANK

64200-MC7-000

Unavailable

16

RUBBER, R. TANK SIDE SEAL (NOT AVAILABLE)

64225-MC7-000

Unavailable

17

RUBBER, L. TANK SIDE SEAL (NOT AVAILABLE)

64227-MC7-000

Unavailable

18

APRON, FUEL TANK (NOT AVAILABLE)

64229-MC7-000

Unavailable

19

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-181-760.

87560-181-760ZE

$3.95

19

LABEL, DRIVE CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87560-181-760ZD

Unavailable

19

MARK, DRIVE CAUTION (TYPEB)

87560-181-760ZE

$3.95

20

LABEL, FUEL CAUTION (NOT AVAILABLE)

87562-MC7-670

Unavailable

21

BOLT, FLANGE (6MM)

90111-187-000

$5.59

22

COLLAR (8MM)

90324-300-000

$4.35

23

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

23

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

24

BOLT, FLANGE (12X15) (NOT AVAILABLE)

90473-461-000

Unavailable

25

WASHER (8.3MM)

90534-011-000

$1.49

26

O-RING (39.5X5)

91305-MC7-000

$3.31

27

NUT, FLANGE (6MM)

94050-06080

$1.49

28

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

28

BOLT, FLANGE (8X25)

95701-08025-08

$1.49
