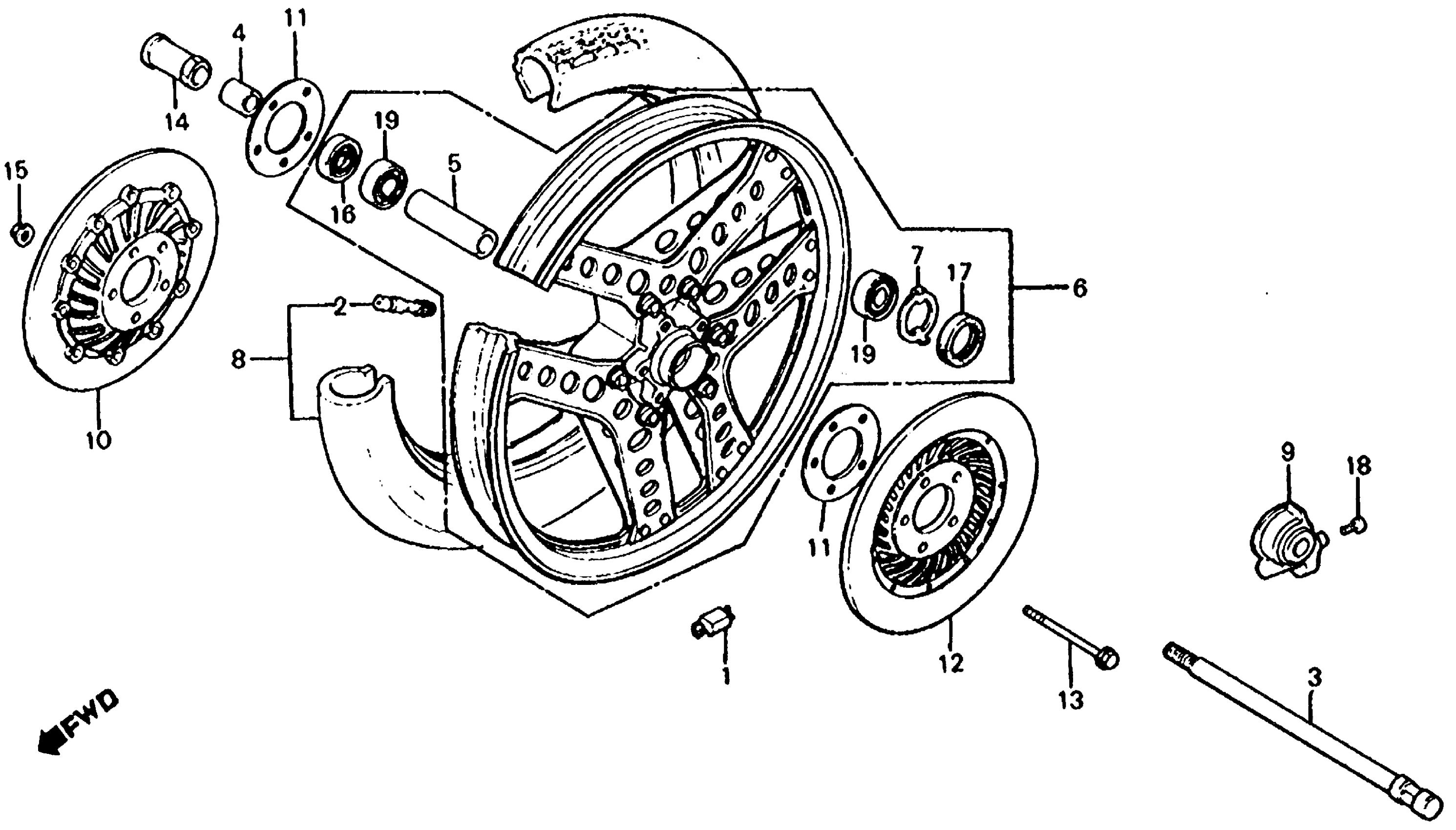

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 FRONT WHEEL + DISC Diagram

WEIGHT, BALANCE (10G) (NOT AVAILABLE)

42704-MC7-000

Unavailable

WEIGHT, BALANCE (20G) (NOT AVAILABLE)

42705-MC7-000

Unavailable

WEIGHT, BALANCE (30G) (NOT AVAILABLE)

42706-MC7-000

Unavailable

VALVE, RIM (BS)

42753-425-003

$11.00

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MA4-670

Unavailable

COLLAR, FR. WHEEL SIDE This part replaces 44311-461-770.

44311-460-840

Unavailable

COLLAR, FR. WHEEL DISTANCE (NOT AVAILABLE)

44620-410-000

Unavailable

WHEEL, FR.

44650-MB7-610

Unavailable

RETAINER, GEAR BOX

44680-410-000

$5.80

TIRE ASSY., FR. (100/90V18) (BS) (NOT AVAILABLE)

44710-MG5-671

Unavailable

TIRE ASSY., FR. (100/90V18) (DUNLOP) (NOT AVAILABLE)

44710-MG5-672

Unavailable

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE) This part replaces 44800-MC7-003.

44800-MC7-013

Unavailable

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-MC7-013

Unavailable

DISK, R. FR. (NOT AVAILABLE)

45120-MB7-610

Unavailable

SHIM, DAMPING (NOT AVAILABLE)

45128-445-630

Unavailable

DISK, L. FR. BRAKE

45220-MB7-610

Unavailable

BOLT, FLANGE (8X104) (NOT AVAILABLE)

90103-438-000

Unavailable

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

DUST SEAL (22X42X7) (ARAI)

91252-MC7-003

$7.46

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
