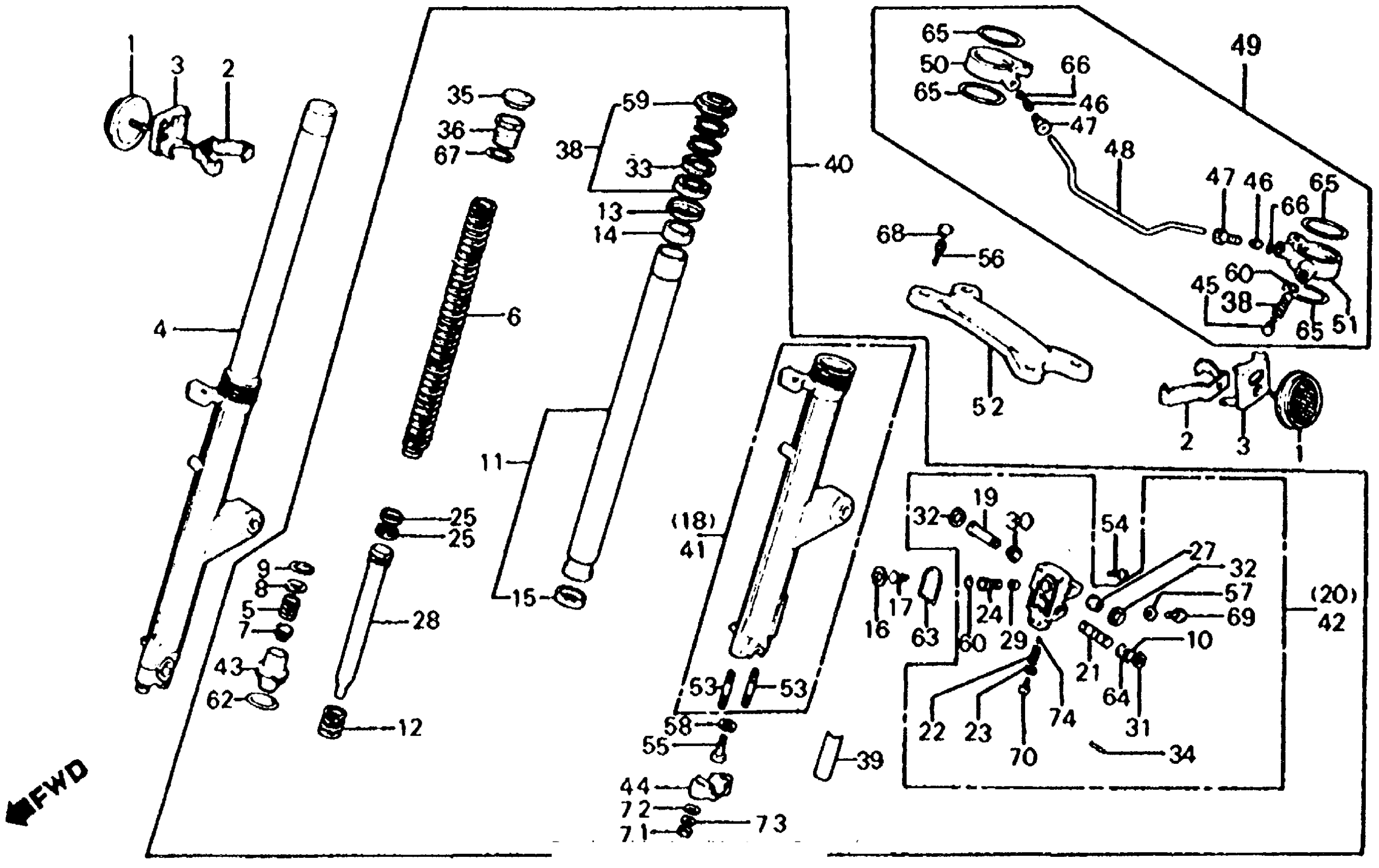

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

2

STAY A, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33751-ME7-670

Unavailable

3

STAY B, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33752-ME7-670

Unavailable

4

SHOCK ABSORBER ASSY., R. FR. (SHOWA)

51400-ME7-672

Unavailable

5

SPRING B, FR. FORK (NOT AVAILABLE)

51402-MA6-003

Unavailable

6

SPRING, FR. FORK (NOT AVAILABLE)

51402-ME7-003

Unavailable

7

VALVE, OIL LOCK (NOT AVAILABLE)

51403-MA6-003

Unavailable

8

SEAT, SPRING (NOT AVAILABLE)

51405-MA6-003

Unavailable

9

RING, STOPPER

51405-MC7-003

$2.39

10

RING, STOPPER (NOT AVAILABLE)

51406-MB1-771

Unavailable

11

PIPE, FR. FORK (NOT AVAILABLE)

51410-ME7-003

Unavailable

12

SPRING, FR. FORK REBOUND (NOT AVAILABLE)

51412-ME1-671

Unavailable

13

RING, BACK-UP

51412-461-003

$7.04

14

BUSH, GUIDE

51414-MN4-003

$13.34

14

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

$13.34

15

BUSH, SLIDER This part replaces 51415-MC5-003.

51415-MC5-013

Unavailable

15

BUSH, SLIDER

51415-MC5-013

Unavailable

16

GASKET This part replaces 51417-ME1-671.

51417-MJ0-013

Unavailable

16

GASKET

51417-MJ0-013

Unavailable

17

SPRING, PISTON (NOT AVAILABLE)

51418-ME1-671

Unavailable

18

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-ME7-671

Unavailable

19

COLLAR, PISTON (NOT AVAILABLE)

51423-MB1-771

Unavailable

20

CASE, R. PISTON (NOT AVAILABLE)

51430-ME7-671

Unavailable

21

ROD, ADJUSTER (NOT AVAILABLE)

51433-MB1-771

Unavailable

22

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

23

WASHER, SPECIAL (5MM)

51435-MC7-003

$2.92

24

PISTON (NOT AVAILABLE)

51436-MB1-771

Unavailable

25

RING, PISTON

51437-MA0-771

Unavailable

26

HOLDER, GREASE (NOT AVAILABLE)

51438-MC5-003

Unavailable

27

WASHER, HOLDER (NOT AVAILABLE)

51439-MC5-003

Unavailable

28

PIPE, SEAT

51440-ME7-003

Unavailable

29

RUBBER, STOPPER

51441-MC7-003

Unavailable

30

BOOT, PISTON CASE

51442-MC7-003

$10.65

31

WASHER, L. SIDE (NOT AVAILABLE)

51444-MB1-771

Unavailable

32

HOLDER, BOOT

51445-MC7-003

$6.48

33

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

34

PIN, PARALLEL (NOT AVAILABLE)

51448-MB1-771

Unavailable

35

CAP, FR. FORK TOP

51449-371-003

Unavailable

36

BOLT, FR. FORK (NOT AVAILABLE)

51454-371-003

Unavailable

37

VALVE, AIR (SHOWA)

51456-469-013

$33.69

38

SEAL SET, FR. FORK

51490-KAZ-003

$33.45

38

SEAL SET, FR. FORK This part replaces 51490-MC5-305.

51490-KAZ-003

$33.45

38

SEAL SET, FR. FORK This part replaces 51490-MC5-315.

51490-KAZ-003

$33.45

39

MARK, FR. FORK

51496-MC7-670

$4.99

40

SHOCK ABSORBER ASSY., L. FR. (SHOWA)

51500-ME7-672

Unavailable

41

CASE, L. (LOWER) (SHOWA)

51521-ME7-671

Unavailable

42

CASE, L. PISTON

51530-ME7-671

Unavailable

43

PIECE B, OIL LOCK (NOT AVAILABLE)

51532-MB1-771

Unavailable

44

HOLDER, AXLE

51634-ME7-671

Unavailable

45

CAP, AIR VALVE

52425-381-771

$5.05

46

SLEEVE (NOT AVAILABLE)

53134-MG5-671

Unavailable

47

BOLT, HEX. (NOT AVAILABLE)

53135-MG5-671

Unavailable

48

PIPE, AIR (NOT AVAILABLE)

53136-ME7-003

Unavailable

49

EQUALIZER, FR. FORK (NOT AVAILABLE)

53137-ME7-003

Unavailable

50

JOINT, R. AIR (NOT AVAILABLE)

53138-ME7-003

Unavailable

51

JOINT, L. AIR

53139-ME7-003

Unavailable

52

STABILIZER, FR. FORK (NOT AVAILABLE)

53240-MG5-670

Unavailable

53

BOLT, STUD (8X53) (NOT AVAILABLE)

90102-MC7-003

Unavailable

54

BOLT, SOCKET (6X18) This part replaces 90116-MC7-003.

96700-06018-17

Unavailable

54

BOLT, SOCKET (6X18) This part replaces 90118-MC7-003.

96700-06018-17

Unavailable

54

BOLT, SOCKET (6X18)

96700-06018-17

Unavailable

55

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-000.

90116-383-721

$5.13

55

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

55

BOLT, SOCKET (8X27)

90116-383-721

$5.13

56

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

56

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

57

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

58

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

59

DUST SEAL

91254-KAZ-003

$17.00

59

DUST SEAL This part replaces 91254-461-003.

91254-KAZ-003

$17.00

59

DUST SEAL This part replaces 91254-461-004.

91254-KAZ-003

$17.00

60

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

60

O-RING (5.8X1.9)

91305-323-000

$2.92

60

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

61

O-RING E (33.5X2) (NOT AVAILABLE)

91306-MC7-003

$2.54

62

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

63

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

63

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

64

O-RING (NOT AVAILABLE)

91352-ME7-003

Unavailable

65

O-RING

91353-MG5-671

Unavailable

66

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.51

66

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

67

CAP, SOCKET BOLT

91456-371-770

$3.47

68

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

69

SCREW, PAN (5X10)

93500-05010-0A

$1.49

69

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

69

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

70

NUT, HEX. (8MM)

94030-08000

$1.49

71

WASHER, PLAIN (8MM)

94101-08000

$1.49

72

WASHER, SPRING (8MM)

94111-08000

$1.49

73

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
