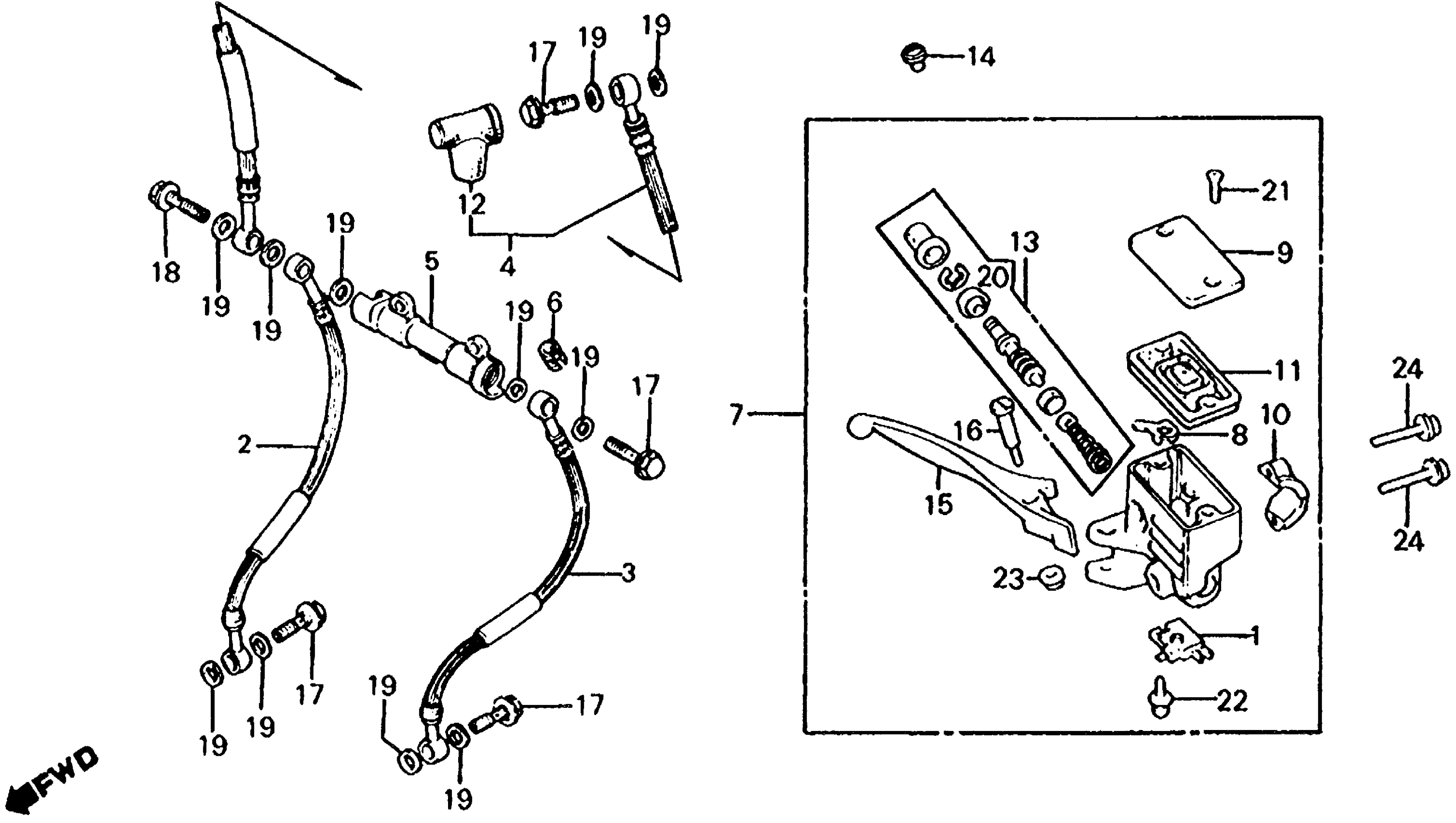

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE A, R. RR. BRAKE This part replaces 45124-ME7-003.

45124-ME7-013

Unavailable

3

HOSE A, L. FR. BRAKE This part replaces 45125-ME7-003.

45125-ME7-013

Unavailable

4

HOSE ASSY., FR. BRAKE This part replaces 45126-ME7-671.

45126-ME7-672

Unavailable

4

HOSE ASSY., FR. BRAKE

45126-ME7-672

Unavailable

5

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

6

SPACER, BRAKE HOSE END

45154-MC7-000

Unavailable

7

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE)

45500-MA7-026

Unavailable

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, OIL CUP

45513-MA5-671

Unavailable

10

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

11

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

11

DIAPHRAGM

45520-MA5-672

$18.13

12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

13

MASTER CYLINDER SET

45530-MA5-671

$71.69

14

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

14

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

15

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

16

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

17

BOLT, OIL (10X22)

90145-KM3-751

$11.02

17

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

18

BOLT, OIL (10X34) This part replaces 90145-MG5-670.

90145-MR8-014

$7.28

18

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP

90651-MA5-671

$2.66

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

SCREW-WASHER (4X12)

93893-04012-08

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

24

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
