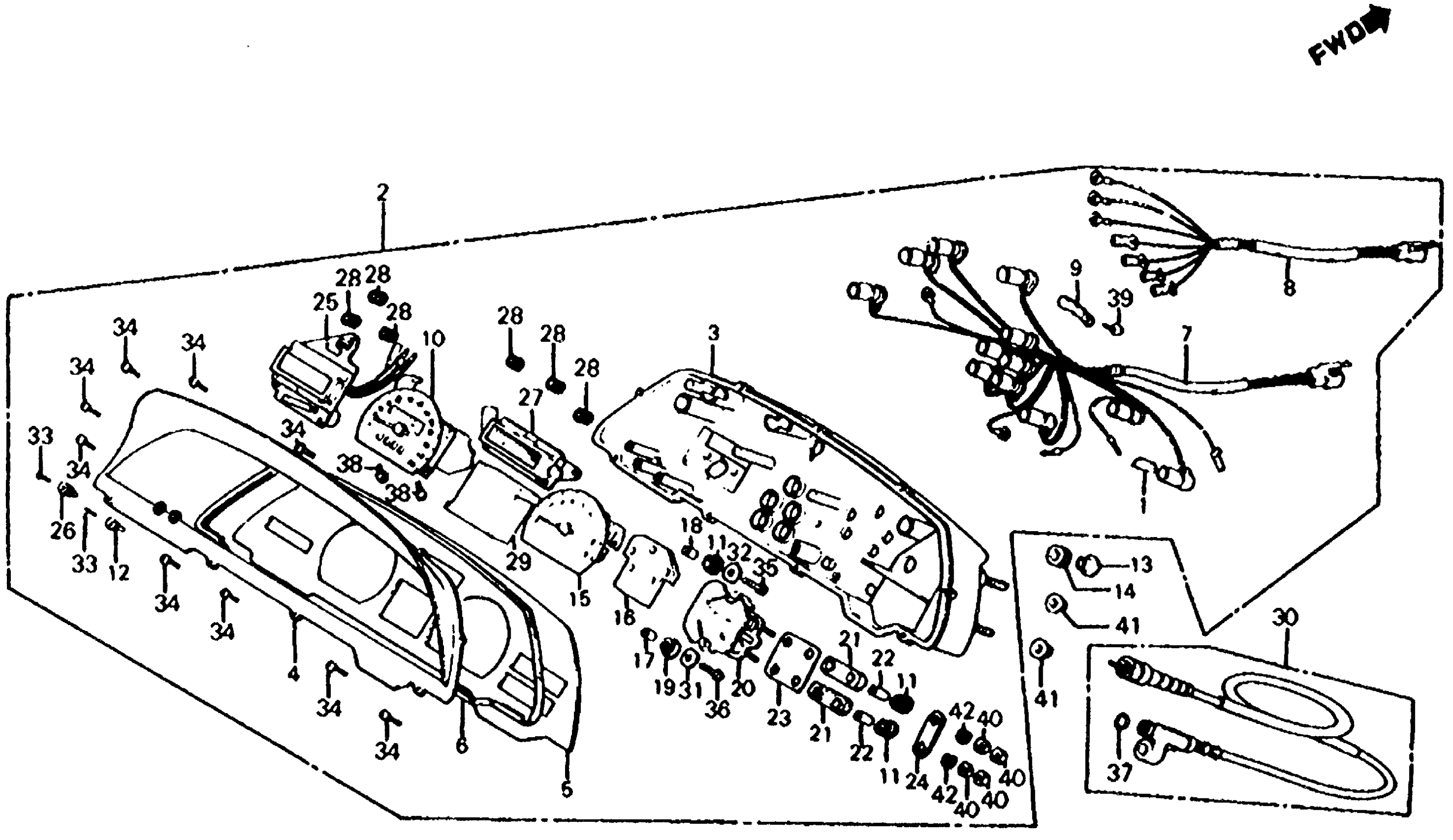

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 COMBINATION INSTRUMENTS Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

METER ASSY., COMBINATION (NOT AVAILABLE)

37100-ME7-670

Unavailable

3

CASE

37101-MC7-611

Unavailable

4

GLASS (NOT AVAILABLE)

37102-MC7-611

Unavailable

5

PLATE,REFLECTING This part replaces 37103-MC7-671.

37103-MC7-611

Unavailable

6

GASKET, METER (NOT AVAILABLE)

37104-MC7-611

Unavailable

7

SOCKET A (NOT AVAILABLE)

37105-MC7-611

Unavailable

8

SOCKET B

37106-MC7-611

Unavailable

9

CLAMP

37107-MC7-611

Unavailable

10

SPEEDOMETER ASSY. This part replaces 37200-ME7-670.

37200-MC7-601

Unavailable

11

RUBBER, METER SETTING (NOT AVAILABLE)

37203-MC7-611

Unavailable

12

KNOB, TRIP METER (NOT AVAILABLE) This part replaces 37204-MC7-611.

37204-MC7-612

Unavailable

12

KNOB, TRIP METER (NOT AVAILABLE)

37204-MC7-612

Unavailable

13

COLLAR, INSTRUMENT SETTING (NOT AVAILABLE)

37243-MC7-000

Unavailable

14

RUBBER, INSTRUMENT SETTING

37244-MC7-000

Unavailable

15

TACHOMETER ASSY. This part replaces 37250-ME7-670.

37250-ME7-610

Unavailable

16

RUBBER, TACHOMETER (NOT AVAILABLE)

37253-MC7-611

Unavailable

17

COLLAR, TACHOMETER SETTING (NOT AVAILABLE)

37254-MC7-611

Unavailable

18

COLLAR, TACHOMETER (NOT AVAILABLE)

37255-MC7-611

Unavailable

19

GASKET, TACHOMETER (NOT AVAILABLE)

37256-MC7-611

Unavailable

20

METER ASSY., FUEL & TEMPERATURE (NOT AVAILABLE)

37300-ME7-000

Unavailable

21

RUBBER, TEMPERATURE & FUEL INSTRUMENT (NOT AVAILABLE)

37302-MC7-611

Unavailable

22

COLLAR, TEMPERATURE & FUEL METER (NOT AVAILABLE)

37303-MC7-611

Unavailable

23

STAY, TEMPERATURE & FUEL INSTRUMENT (NOT AVAILABLE)

37304-MC7-611

Unavailable

24

WASHER (NOT AVAILABLE)

37305-MC7-611

Unavailable

25

METER ASSY., HOUR

37460-ME7-008

Unavailable

26

KNOB, CLOCK METER This part replaces 37461-MC7-611.

37461-MC7-612

Unavailable

27

INSTRUMENT ASSY., TURBO (NOT AVAILABLE)

37490-MC7-611

Unavailable

28

RUBBER, TURBO CLOCK INSTRUMENT SETTING (NOT AVAILABLE)

37491-MC7-611

Unavailable

29

INDICATOR ASSY. (NOT AVAILABLE)

37600-MC7-611

Unavailable

30

CABLE ASSY., SPEEDOMETER

44830-MC7-000

Unavailable

31

WASHER (4.3X12.5) (NOT AVAILABLE)

90101-MC7-611

Unavailable

32

WASHER (3.3X12)

90102-MC7-611

Unavailable

33

SCREW, FLAT (2.3X8) (NOT AVAILABLE) This part replaces 90600-MC7-611.

90600-MC7-612

Unavailable

33

SCREW, FLAT (2.3X8) (NOT AVAILABLE)

90600-MC7-612

Unavailable

34

SCREW-WASHER (3X14) (NOT AVAILABLE)

90890-MC7-611

Unavailable

35

SCREW-WASHER (3X20) (NOT AVAILABLE)

90891-MC7-611

Unavailable

36

SCREW-WASHER (4X20) (NOT AVAILABLE)

90892-MC7-611

Unavailable

37

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

37

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

37

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

38

SCREW-WASHER (4X8) This part replaces 93893-04008.

93893-04008-00

$1.49

38

SCREW-WASHER (4X8)

93893-04008-00

$1.49

39

SCREW, TAPPING (NOT AVAILABLE)

93902-24380

Unavailable

40

NUT, HEX. (4MM)

94002-04000-0S

$1.49

41

NUT, FLANGE (6MM)

94050-06000

$1.49

42

WASHER, SPRING (4MM)

94111-04800

$1.49
