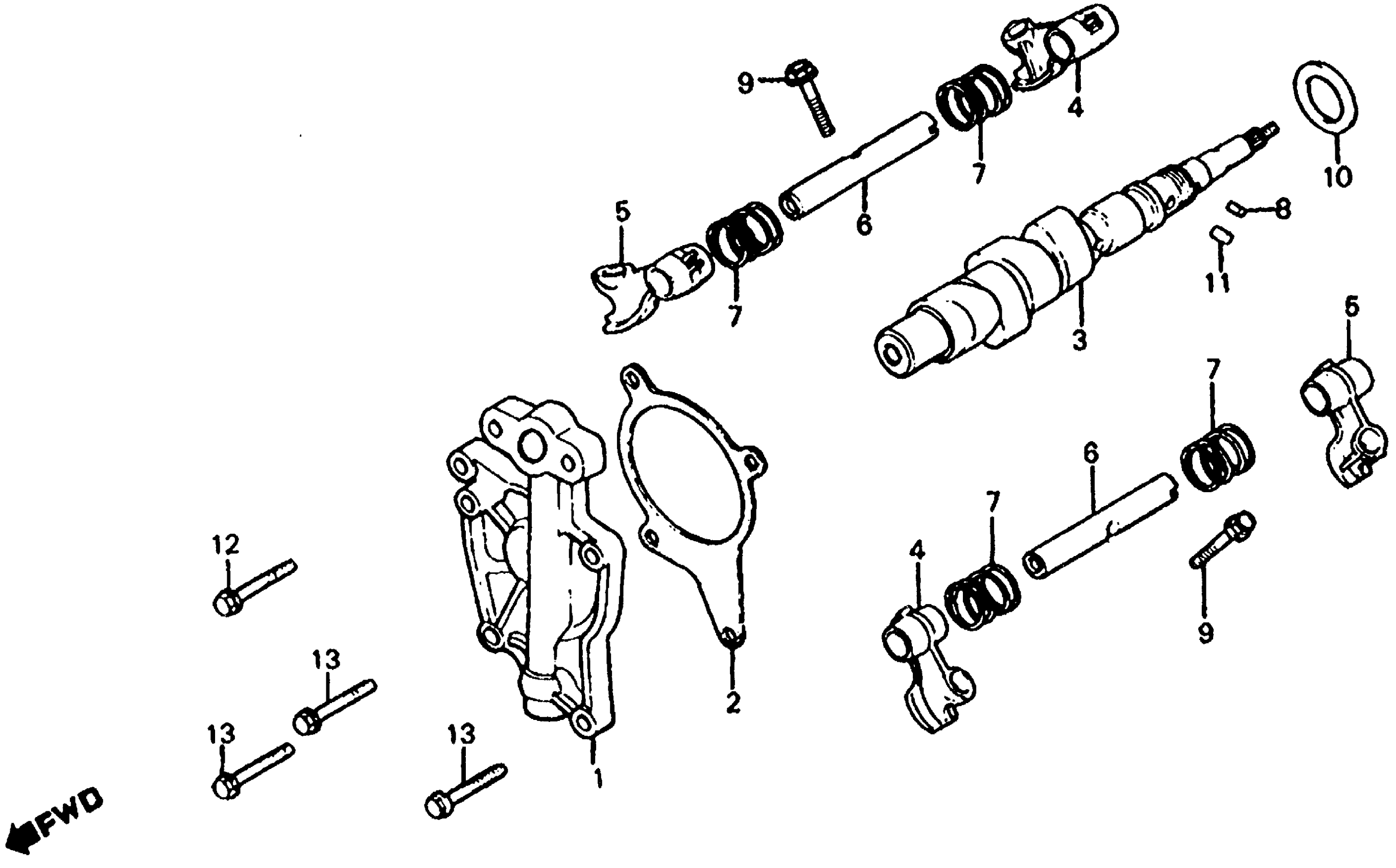

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 CAMSHAFT + LOWER ROCKER ARM Diagram

#

Description

Price

1

HOLDER, CAMSHAFT (NOT AVAILABLE)

12221-MC7-000

Unavailable

2

GASKET This part replaces 12230-MC7-000.

12230-MC7-306

Unavailable

3

CAMSHAFT (NOT AVAILABLE)

14100-ME7-000

Unavailable

4

ARM A, ROCKER (LOWER)

14441-415-010

Unavailable

5

ARM B, ROCKER (LOWER) (NOT AVAILABLE)

14442-415-010

Unavailable

6

SHAFT, ROCKER ARM (LOWER) (NOT AVAILABLE)

14451-ME7-000

Unavailable

7

SPRING A, VALVE ROCKER ARM (NOT AVAILABLE)

14453-415-000

Unavailable

8

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.43

9

BOLT, SPECIAL (6X30) (NOT AVAILABLE)

90008-415-000

Unavailable

10

WASHER, THRUST (26MM) (NOT AVAILABLE)

90407-415-000

$5.13

11

ROLLER (5X8.5) (NOT AVAILABLE)

91105-415-000

Unavailable

12

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.13

12

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

13

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

13

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable
