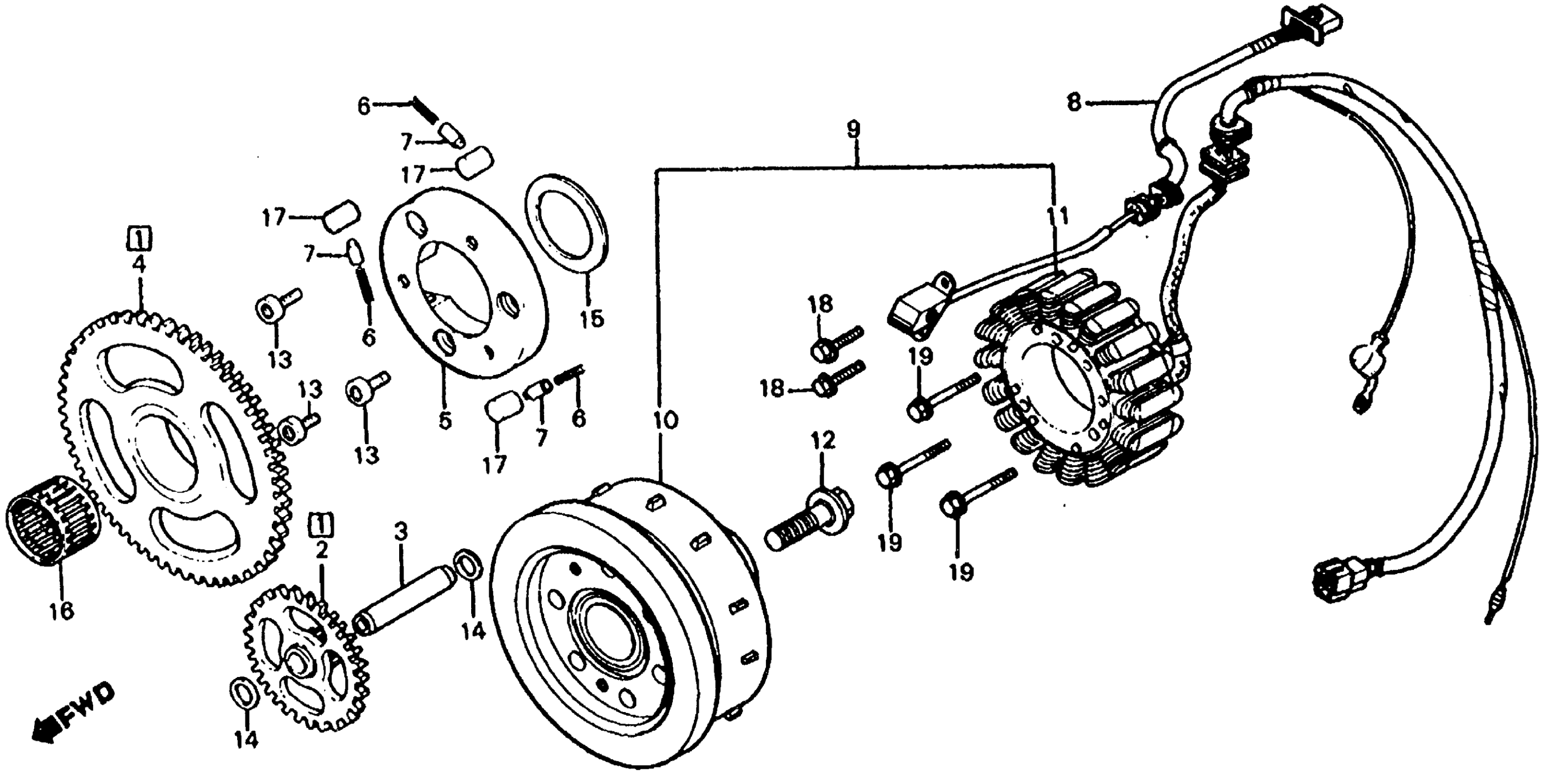

Honda CX650TA (83) 650 TURBO, JPN, VIN# JH2RC160-DM000023 TO JH2RC160-DM001139 ALTERNATOR + STARTER CLUTCH Diagram

#

Description
Price

1

GEAR SET, STARTER (NOT AVAILABLE)

28100-415-305

Unavailable

2

GEAR, STARTER REDUCTION (NOT AVAILABLE)

28102-415-010

Unavailable

3

SHAFT, STARTER REDUCTION

28106-ME7-000

Unavailable

4

GEAR, STARTING DRIVEN (NOT AVAILABLE)

28110-MF5-000

Unavailable

4

GEAR, STARTING DRIVEN This part replaces 28110-415-010.

28110-MF5-000

Unavailable

5

CLUTCH, STARTER (OUTER)

28120-415-000

Unavailable

6

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-516-020

$19.34

8

GENERATOR ASSY., PULSE (NOT AVAILABLE)

30300-ME7-005

Unavailable

9

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-ME7-000.

31100-ME7-005

Unavailable

9

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-ME7-005

Unavailable

10

ROTOR This part replaces 31110-ME7-000.

31110-ME7-005

Unavailable

10

ROTOR

31110-ME7-005

Unavailable

11

STATOR (NOT AVAILABLE)

31120-MC7-005

Unavailable

12

BOLT, ALTERNATOR SETTING (12X30) (NOT AVAILABLE)

90002-415-003

Unavailable

13

BOLT, SOCKET (8MM)

90010-KCJ-690

$4.78

13

BOLT, SOCKET (8MM) This part replaces 90010-415-000.

90010-KCJ-690

$4.78

14

WASHER (12MM) (NOT AVAILABLE)

90451-708-000

Unavailable

15

WASHER, THRUST (37MM) (NOT AVAILABLE)

90454-415-000

Unavailable

16

BEARING, NEEDLE (32MM) (TOMUSON)

91021-415-005

Unavailable

17

ROLLER (15X13)

91101-516-000

$6.32

18

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

18

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

19

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

19

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
