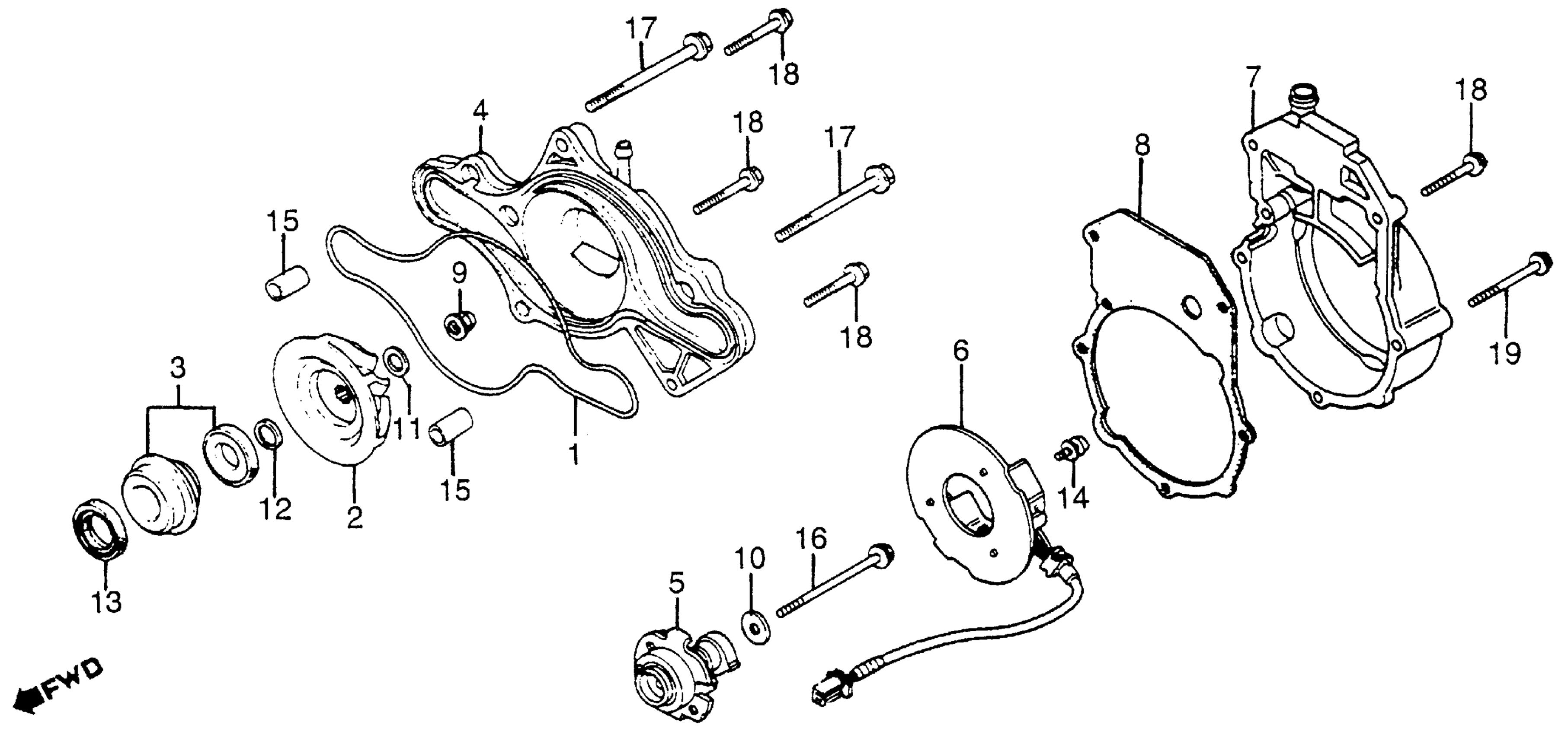

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 WATER PUMP + PULSE GENERATOR Diagram

GASKET, WATER PUMP BASE

11396-415-000

$6.46

IMPELLER, WATER PUMP (NOT AVAILABLE)

19215-ME2-000

Unavailable

SEAL, MECHANICAL

19217-657-023

$53.27

COVER, WATER PUMP (NOT AVAILABLE)

19221-ME2-000

Unavailable

ADVANCER ASSY., SPARK (NOT AVAILABLE)

30220-ME2-000

Unavailable

GENERATOR, PULSE (NOT AVAILABLE)

30300-MG0-154

Unavailable

COVER, PULSER (NOT AVAILABLE)

30372-MC7-010

Unavailable

GASKET, PULSER COVER This part replaces 30373-MC7-000.

30373-MC7-306

Unavailable

GASKET, PULSER COVER

30373-MC7-306

Unavailable

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, CAMSHAFT SIDE

90417-115-000

$2.84

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER, THRUST (10MM)

90453-415-000

$3.62

OIL SEAL (18X28X6)

91202-283-013

$12.69

SCREW-WASHER (6X12)

93891-06012-00

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (8X65) This part replaces 95700-08065-00.

95701-08065-00

$1.72

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
