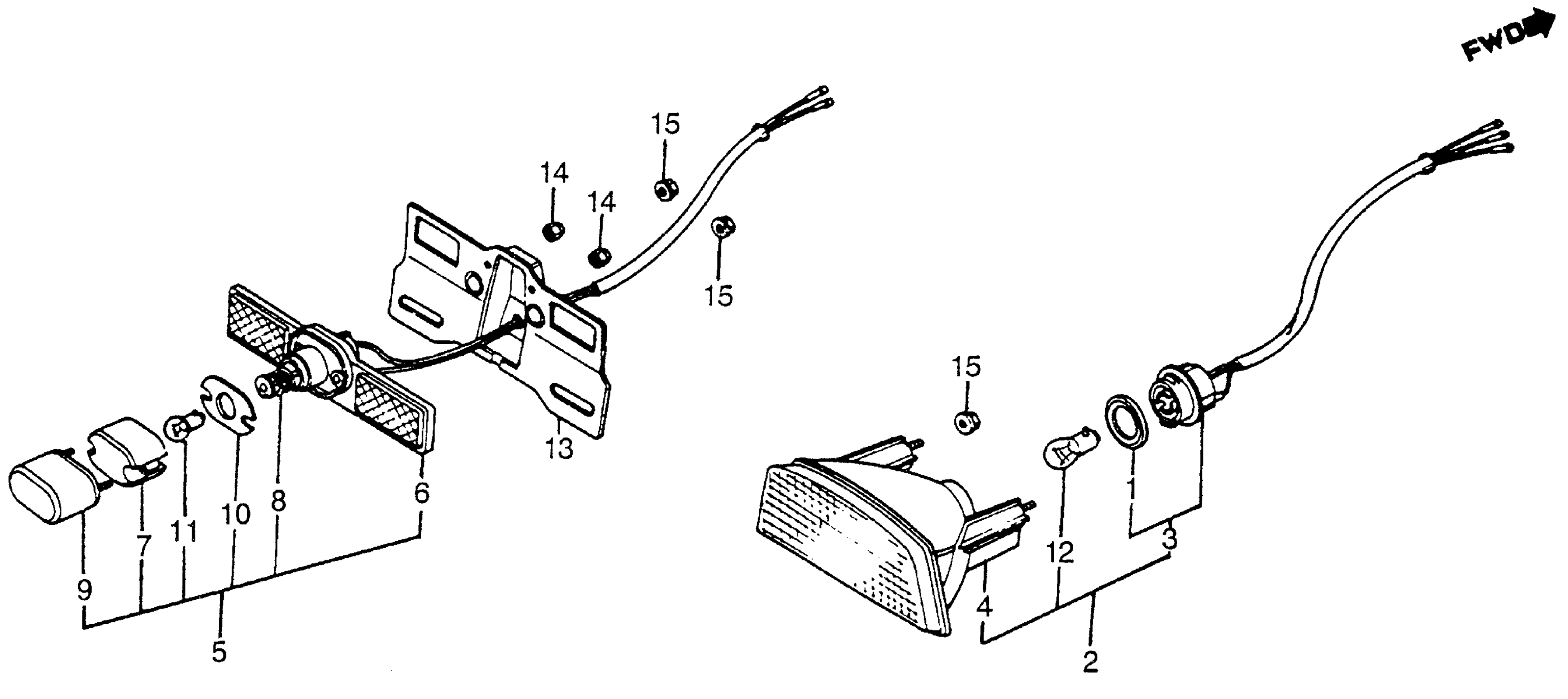

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 TAILLIGHT Diagram

#

Description
Price

1

GASKET, SEAL

33518-SA2-003

$4.38

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-ME8-671

Unavailable

3

SOCKET, TAILLIGHT

33706-ME8-003

Unavailable

4

CASE, TAILLIGHT (NOT AVAILABLE)

33710-ME8-003

Unavailable

5

LIGHT ASSY., LICENSE This part replaces 33720-ME8-671.

33720-MG1-003

Unavailable

5

LIGHT ASSY., LICENSE

33720-MG1-003

Unavailable

6

BASE

33721-MB1-671

$90.46

7

LENS, LICENSE LIGHT This part replaces 33722-MB1-003.

33722-MB1-013

$19.68

7

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

8

WIRE, LICENSE

33725-ME9-611

Unavailable

9

COVER

33727-MB1-003

Unavailable

10

GASKET, LENS

33729-MB1-003

$6.30

11

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

11

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

12

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

13

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-ME8-670

Unavailable

14

NUT, CAP (4MM)

94021-04020-0S

Unavailable

15

NUT, FLANGE (6MM)

94050-06000

$1.49
